Seat Actimo XL 24V G1294562 Grammer G1023117 G1203420
search
  • Seat Actimo XL 24V G1294562 Grammer G1023117 G1203420

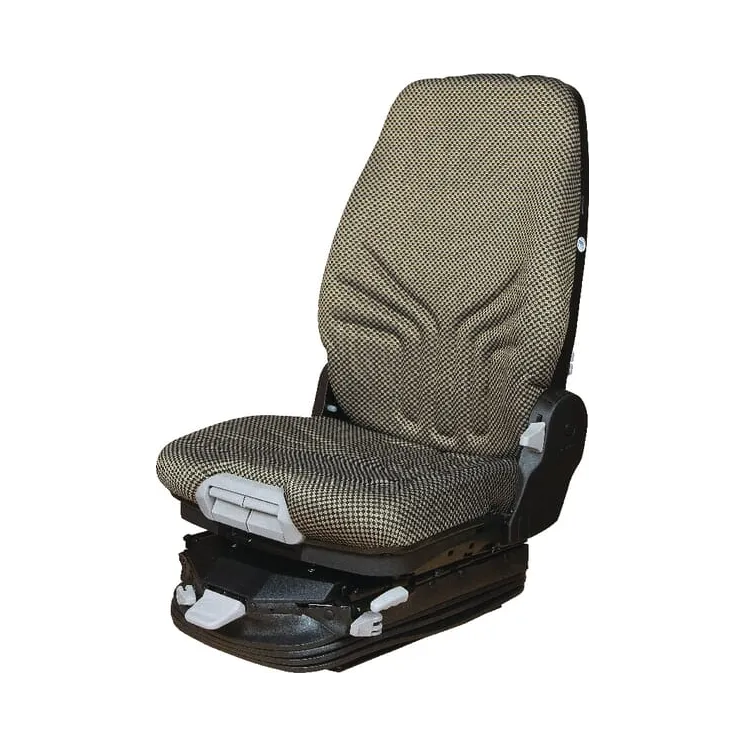

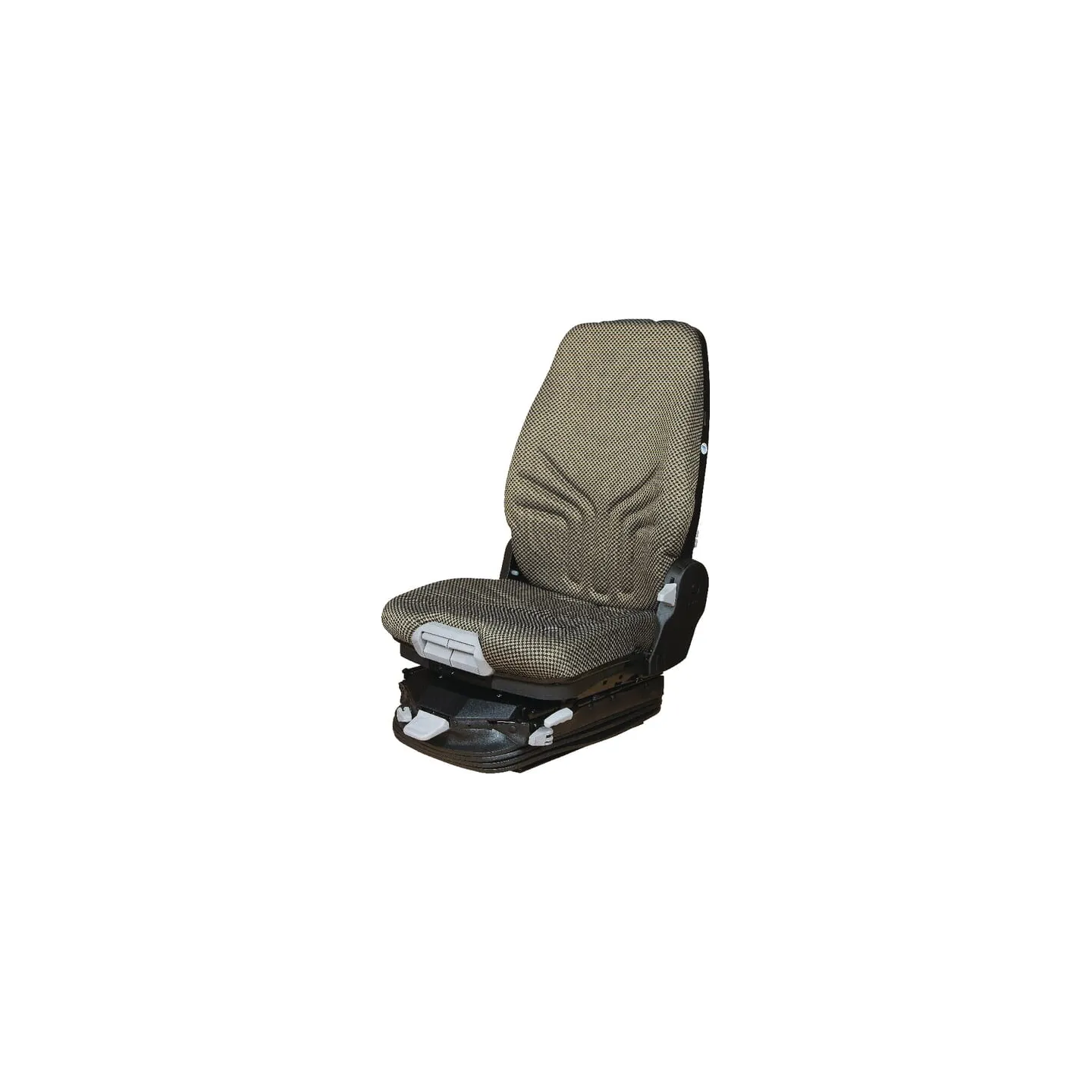

Seat Actimo XL 24V G1294562 G1023117 G1203420

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€2,106.85
Tax included
On Request
Seat Actimo XL 24V G1294562 Grammer G1023117 G1203420
ON REQUEST

55388

Part number
G1294562
EAN
Unit
Each
Details
  • Pneumatic band disc support
  • Automatic weight adjustment
  • With horizontal suspension, blocking
Application range
For medium-sized and large construction machines
Properties
  • APS: automatic positioning system
  • Passive air-conditioning system, active charcoal filter
  • Seat cushion depth and inclination adjustment
  • Seat cushion width of 490 mm
  • Spring travel: 100 mm
  • 80-mm infinitely variable height adjustment, air-assisted
  • Horizontal adjustment 210 mm
  • Backrest inclination adjustment, max. 80°
  • Lumbar support, pneumatically adjustable via 2nd compressor
  • Weight adjustment 50–130 kg
  • Weight 43 kg
  • Narrow suspension (308mm)
Benefits
  • Extremely comfortable seat
  • Fatigue-free working
  • Good lateral hold
Suspension type
Pneumatic
Upholstery material
Fabric
Upholstery colour
Brown
Total width
490 mm
Consists of
  • Actimo XL seat
  • Without arm rests
  • Without backrest extension
Armrests included
No
Backrest extension included
No
Seatbelt included
No
Contact switch included
No
Auto user weight adjustment
Yes
Model
MSG95A/722
Back angle adjustment
30 °
Height adjustment
8 cm
Depth
629 mm
Min. working load
50 kg
Suspension stroke
10 cm
Max. working load
130 kg
Total height
1078 mm
Heating kit included
No
Total length
629 mm
Supply voltage
24 V
  • Brand
    Grammer
  • Reference
    G1294562
  • Condition
    New
  • CODE
    G1023117 G1203420
