| Part number | G1388488 | |
|---|
| EAN | | |
|---|
| Unit | Each | |
|---|

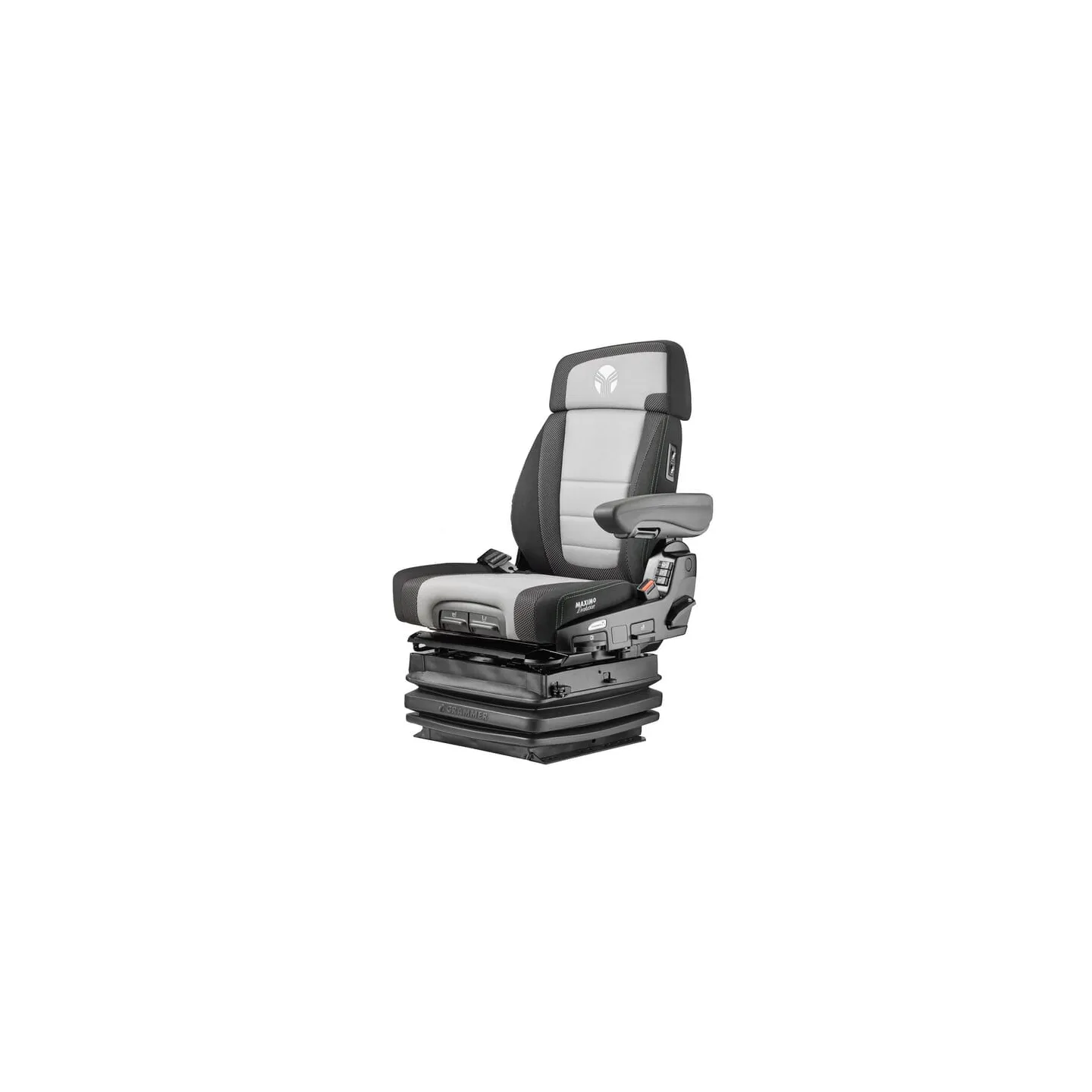

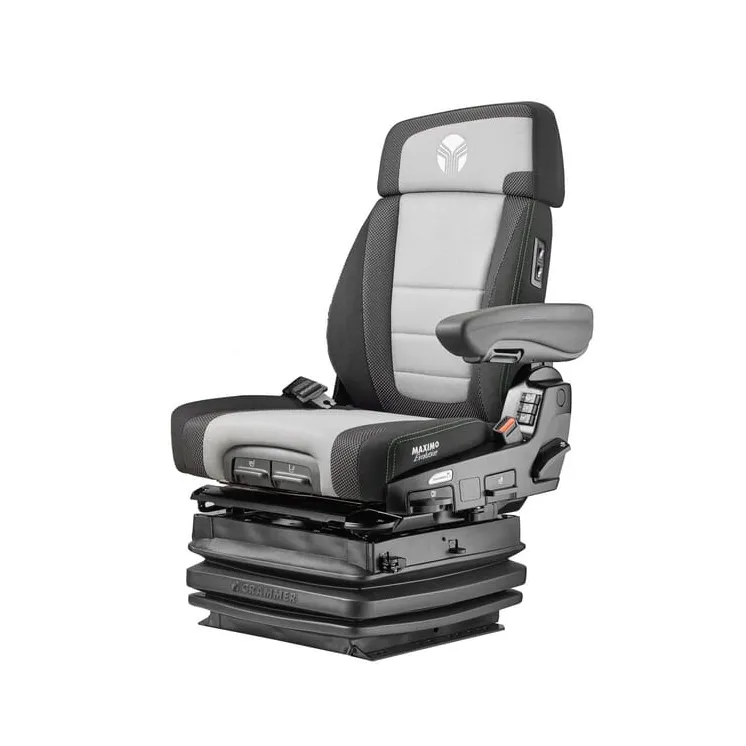

| Details | - Air-sprung premium seat with Dynamic Damping System and active weight adjustment (50 kg – 130 kg)
- With lateral and longitudinal horizontal suspension
- With seat air-conditioning
- Active suspension
- Adjustable damper
| |
|---|
| Application range | For heavy tractors | |
|---|
| Properties | - Seat cushion width 550 mm
- Spring travel 100/120 mm
- Infinitely variable height adjustment 80 mm, air-assisted
- Horizontal adjustment 210 mm
- Backrest inclination adjustment, maximum 35°
- Lumbar support, pneumatically adjustable
- Active seat air-conditioning
- Weight adjustment 50–130 kg, automatic
- Weight 56 kg
- Seat heating (seat and seat back)
- APS: automatic positioning system
- Seat cushion depth and inclination adjustment
| |
|---|
| Benefits | - Extremely comfortable seat
- Protects the back from impacts
- Body moisture is carried away
- Very low vibration impact
- Variety of operating conditions
| |
|---|
| Suspension type | Pneumatic | |
|---|
| Upholstery material | Fabric | |
|---|
| Upholstery colour | | |
|---|
| Total width | 565 mm | |
|---|
| Consists of | - Seat
- Seat switch (excluding G1189516)
- With backrest extension
- With arm rests, adjustable inclination 80 mm x 380 mm
- Backrest inclination adjustment, max. 35°
- Rotation adapter 20°
- Store bag
- Integrated air compressor (12 V)
| |
|---|
| Armrests included | Yes | |
|---|
| Backrest extension included | Yes | |
|---|
| Seatbelt included | Yes | |
|---|
| Contact switch included | Yes | |
|---|
| Auto user weight adjustment | Yes | |
|---|
| Model | MSG95EL/741 | |
|---|
| Back angle adjustment | 35 ° | |
|---|
| Height adjustment | 8 cm | |
|---|
| Depth | 652 mm | |
|---|
| Min. working load | 50 kg | |
|---|
| Suspension stroke | 12 cm | |
|---|
| Max. working load | 130 kg | |
|---|
| Total height | 918 mm | |
|---|
| Heating kit included | Yes | |
|---|
| Total length | 652 mm | |
|---|
| Supply voltage | 12 V | |
|---|
