| Part number | G1424507 | |
|---|
| EAN | | |
|---|
| Unit | Each | |
|---|

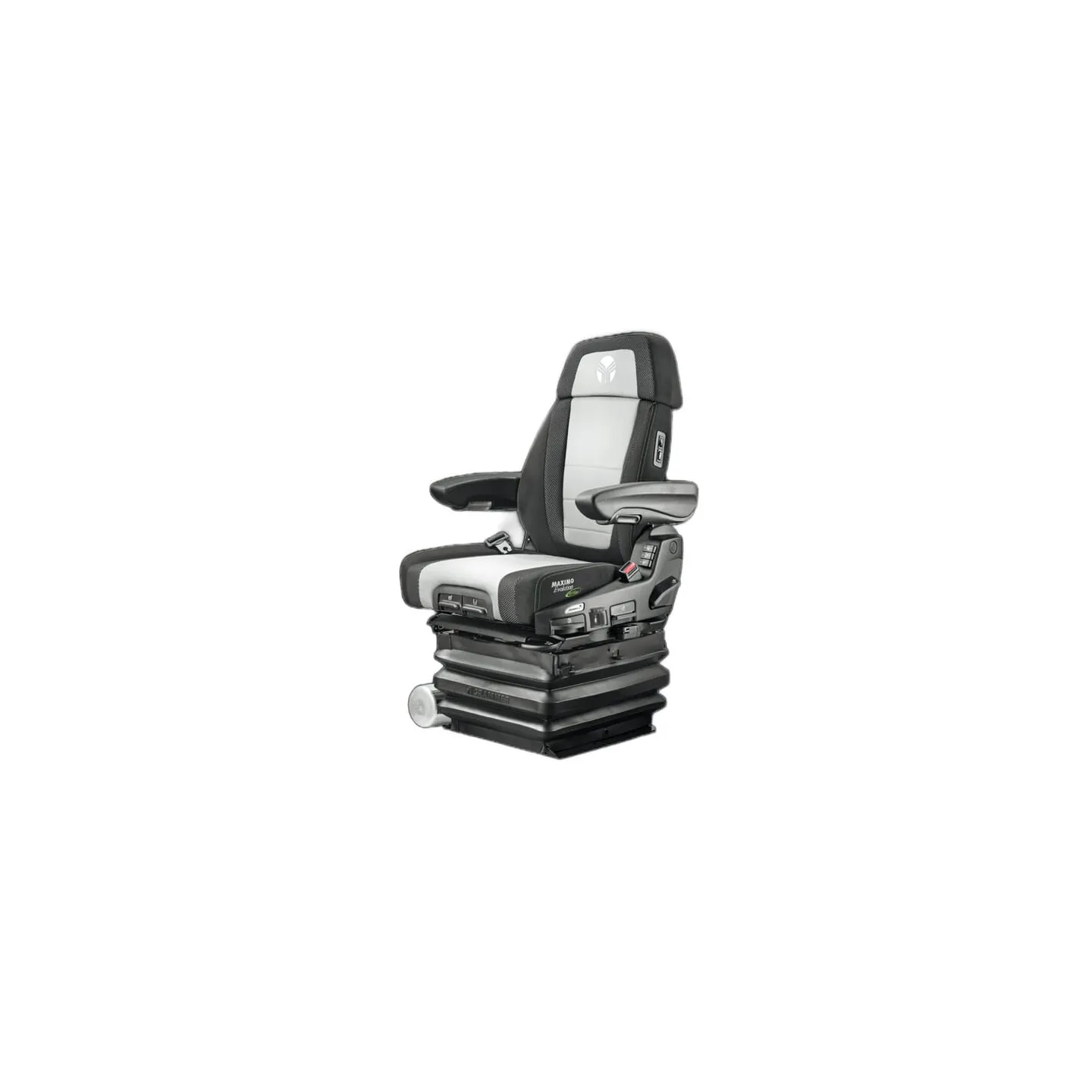

| Long description | Air-suspended seat Maximo Evolution-Active | |
|---|
| Details | - Air-sprung seat
- Fully automatic weight adjustment
- With longitudinal horizontal suspension, blocking
- Low-frequency suspension
- Active seat air-conditioning, ventilator in the cushion
- Active suspension
| |
|---|
| Application range | For medium-sized and heavy tractors with a straight construction | |
|---|
| Properties | - Seat cushion width 550 mm
- Spring travel: 120 mm
- Infinitely variable height adjustment 80 mm, air-assisted
- Horizontal adjustment 210 mm
- Backrest inclination adjustment, max. 35°
- Lumbar support, pneumatic
- Weight adjustment 50–130 kg, electronic
- Weight 58 kg
- Seat heating (seat and seat back)
- APS: automatic positioning system
| |
|---|
| Benefits | - Extremely comfortable seat
- Effectively prevents spinal disc damage
- Protects the back from impacts
- Significantly reduces vibrations
- Body moisture is carried away
- Health-damaging vibrations reduced by 40%
| |
|---|
| Suspension type | Pneumatic | |
|---|
| Upholstery material | | |
|---|
| Upholstery colour | | |
|---|
| Total width | 550 mm | |
|---|
| Consists of | - Seat
- Seat switch
- With backrest extension
- With arm rests, adjustable inclination 80 mm x 380 mm
- Store bag
- Rotation adapter 20°
- Integrated air compressor (12 V)
| |
|---|
| Armrests included | Yes | |
|---|
| Backrest extension included | Yes | |
|---|
| Seatbelt included | Yes | |
|---|
| Contact switch included | Yes | |
|---|
| Auto user weight adjustment | Yes | |
|---|
| Model | n/a | |
|---|
| Back angle adjustment | 35 ° | |
|---|
| Height adjustment | 8 cm | |
|---|
| Depth | 648 mm | |
|---|
| Min. working load | 50 kg | |
|---|
| Suspension stroke | 12 cm | |
|---|
| Max. working load | 130 kg | |
|---|
| Total height | 942 mm | |
|---|
| Heating kit included | Yes | |
|---|
| Total length | 648 mm | |
|---|
| Supply voltage | 12 V | |
|---|
