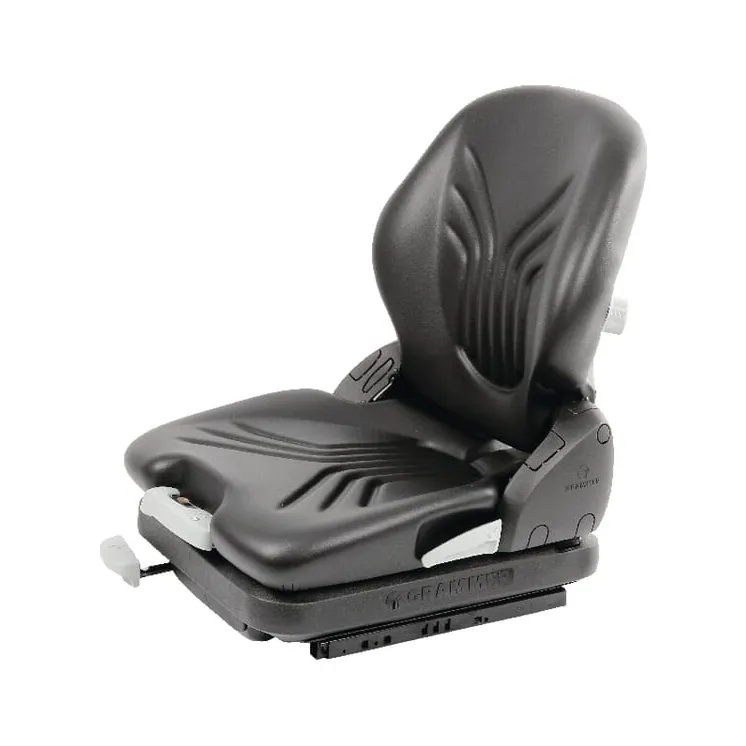

Seat Primo M PVC G1091028 Grammer 53020
search
  • Seat Primo M PVC G1091028 Grammer 53020

Seat Primo M PVC G1091028 53020

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€956.12
Tax included
On Request
Seat Primo M PVC G1091028 Grammer 53020
ON REQUEST

55527

  • Brand
    Grammer
  • Reference
    G1091028
  • Condition
    New
  • CODE
    53020
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
G1091028
EAN
Unit
Each
Details
Lowest constructive mechanical seat
Product details
  • Plastic covering
  • With small installation dimensions
  • Spring travel 60mm
  • Weight adjustment 45 - 170kg
  • Horizontal adjustment 210mm
  • Lumbar support mechanically adjustable
  • Backrest adjustment range from -5° to +30°
  • Seat width 470mm
  • Options
  • Arm rests 60x320mm, adjustable
  • Storage bag
  • Backrest extension adjustable
  • Seat heating
  • Three-point belt
Application range
  • For forklifts and compact construction machines
Properties
  • Seat cushion width 470mm
  • Spring travel: 60mm
  • Horizontal adjustment 210mm
  • Backrest inclination adjustment, -5° to +30°
  • Weight adjustment 45 - 170 kg
  • Weight 23 kg
Benefits
  • Very low installation dimensions
  • Satisfies FEM 4.002 in conjunction with a restraining system
Long description
  • Application range:
  • For forklifts and compact construction machines
  • Benefits:
  • Very low installation dimensions
  • Satisfies FEM 4.002 in conjunction with a restraining system
  • Details:
  • Lowest constructive mechanical seat
  • Properties:
  • Seat cushion width 470 mm
  • Spring travel: 60 mm
  • Horizontal adjustment 210 mm
  • Backrest inclination adjustment, -5° to +30°
  • Weight adjustment 45 - 170 kg
  • Weight 23 kg
Suspension type
Mechanical
Upholstery material
PVC
Upholstery colour
Black
Total width
470 mm
Armrests included
No
Backrest extension included
No
Seatbelt included
No
Contact switch included
No
Auto user weight adjustment
No
Model
MSG65/521
Back angle adjustment
35 °
Depth
608 mm
Min. working load
45 kg
Suspension stroke
6 cm
Max. working load
170 kg
Suitable for machine/vehicle model
MSG 65 / 521
Total height
613 mm
Heating kit included
No
Total length
608 mm
