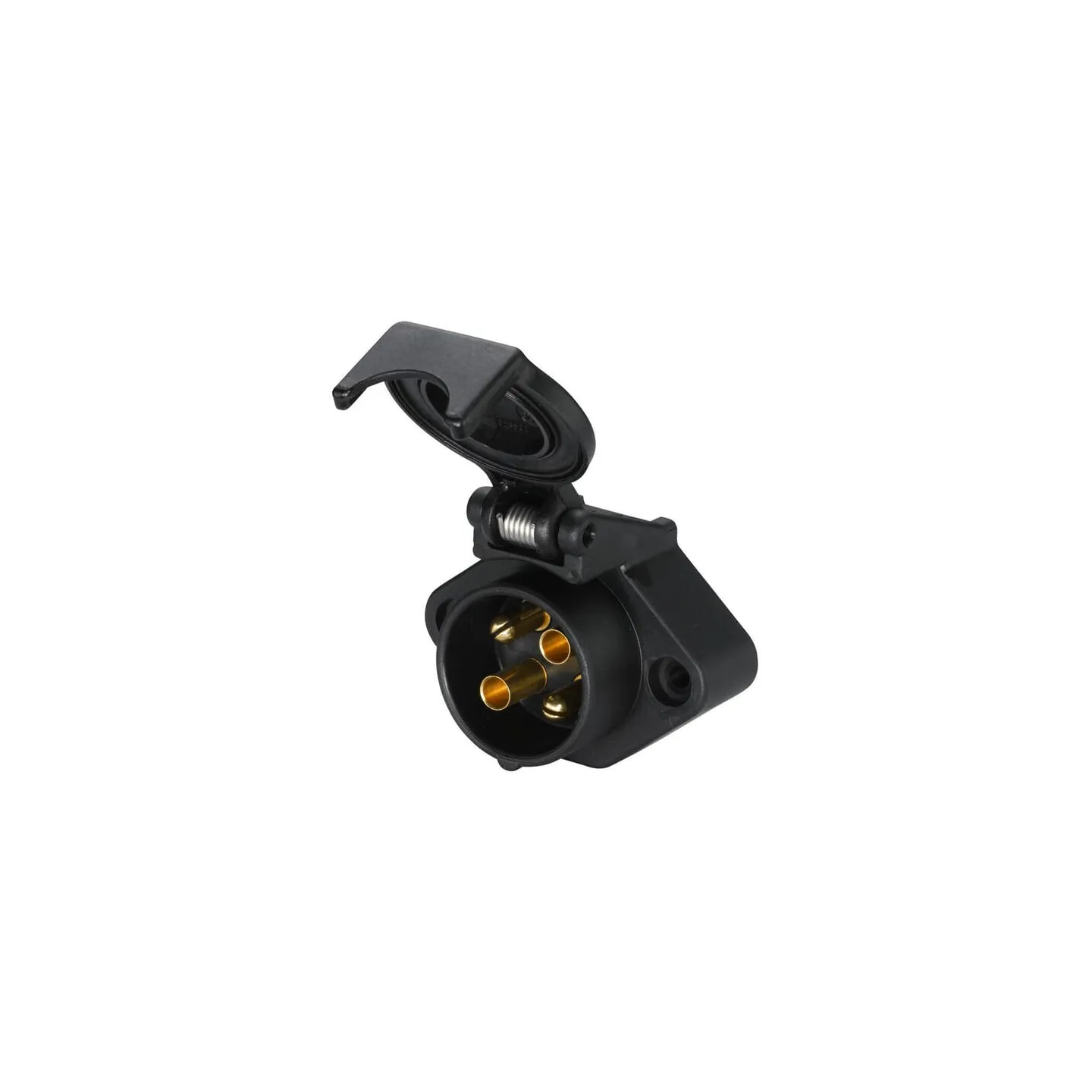

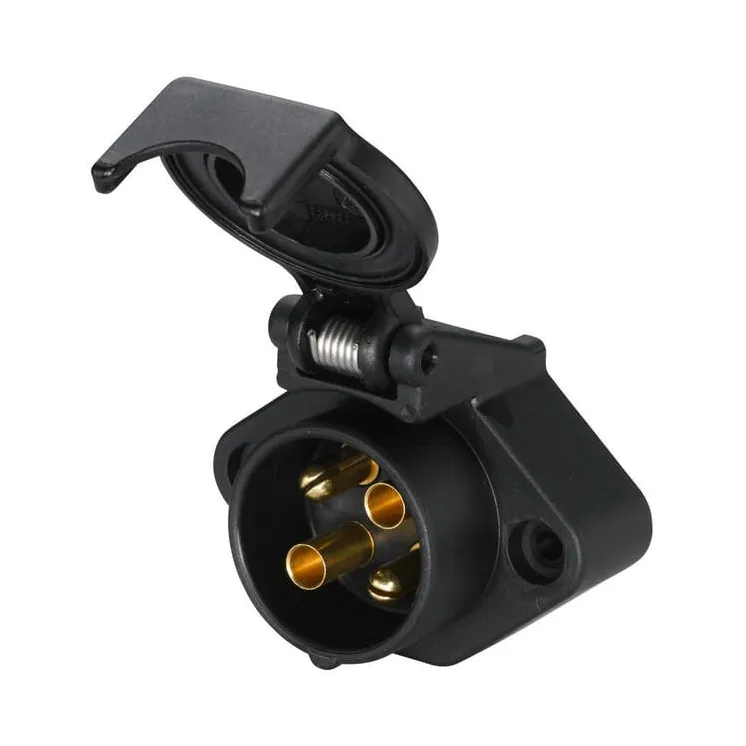

Socket - 24V - 4-pin connector - Plug: Screw Contact 8JB001944011 Hella 8JB001944001
search
  • Socket - 24V - 4-pin connector - Plug: Screw Contact 8JB001944011 Hella 8JB001944001

Socket - 24V - 4-pin connector - Plug: Screw Contact 8JB001944011 8JB001944001

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€12.26
Tax included
4-5 Working days
Socket - 24V - 4-pin connector - Plug: Screw Contact 8JB001944011 Hella 8JB001944001
IN WAREHOUSE

62984

Part number
8JB001944011
EAN4082300178586
Unit
Each
Details
  • Socket with screw connection in accordance with DIN ISO 72575 A4
  • Housing made from black plastic
  • With seal in lid
Application range
  • The 4-pin connector system is used for transmitting additional functions between the tractor unit and the trailer.
  • Corresponding plug 8JA001920011
Properties
  • Temperature range: -40°C to +80°C
  • Power rating: 16 A at 24V (1.5mm²), 25 A at 24V (2.5mm²)
  • 90-degree cable outlet for cables Ø 7.2–9.0mm
Operating current
  • 16 A
  • 25 A
Number of poles
4
Series
A
Cable position type - connection no 1
Straight
Nominal voltage
24 V
Nominal voltage range
12-24 V
Housing colour
Black
Type
Screw terminal
Connection type male/female - connection no 1
Female
Electric category
Trailer lighting
  • Brand
    Hella
  • Reference
    8JB001944011
  • In stock
    3 Items
  • Condition
    New
  • CODE
    8JB001944001
  • EAN
    4082300178586
