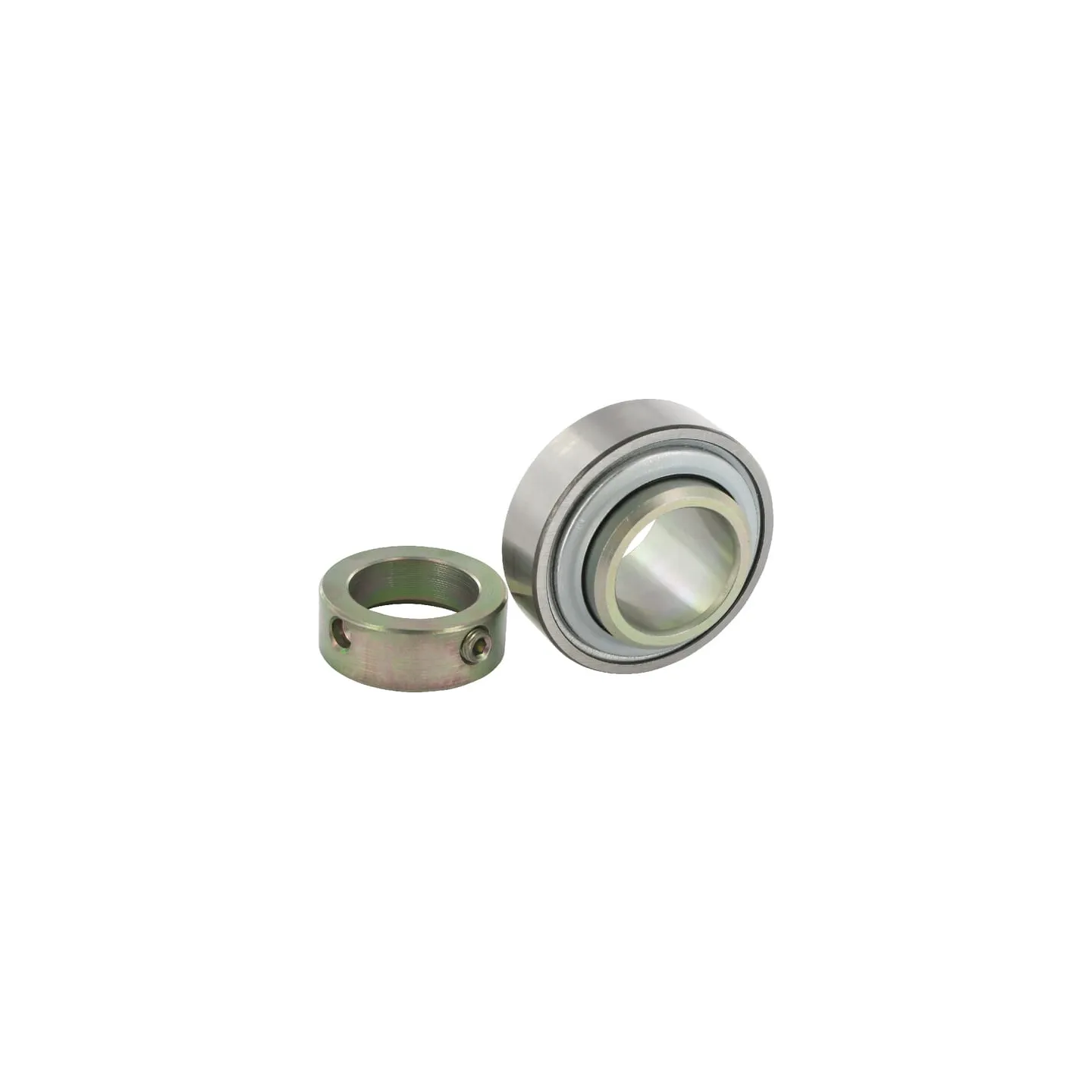

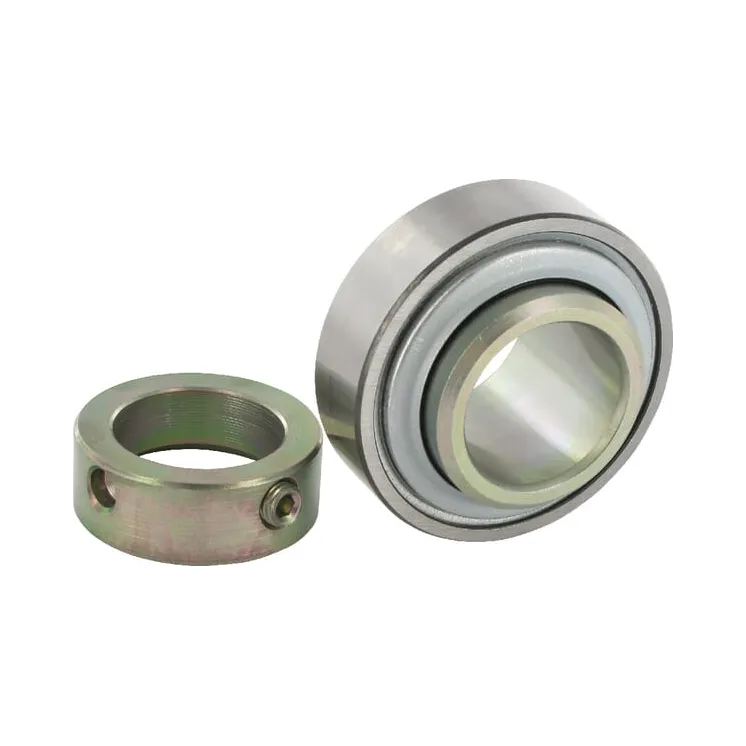

Bearing insert 30x62x36.51mm E30KRR INA/FAG
search
  • Bearing insert 30x62x36.51mm E30KRR INA/FAG

Bearing insert 30x62x36.51mm E30KRR

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€35.15
Tax included
4-5 Working days
Bearing insert 30x62x36.51mm E30KRR INA/FAG
IN WAREHOUSE

63701

Part number
E30KRR
EAN4012802783667
Unit
Each
Long description
Ball bearing inserts INA/FAG, series E..KRR
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Cylindrical outer ring with no lubrication holes
  • Inner ring extended on both sides with clamping ring
  • Sealed on both sides
  • Polyamide housing
dInside diameter
30 mm
DOutside diameter
62 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
36.51 mm
CInner ring width
18.3 mm
Locking collar and inner ring width
48.4 mm
Locking collar outside diameter
44.1 mm
Basic radial load static
11300 N
Basic radial load dynamic
19500 N
Thread diameter
8 mm
Thread pitch
1.25 mm
Thread type
Metric
Material
Steel
Original number equivalent
E30-KRR
Weight
0.2 kg
  • Brand
    INA/FAG
  • Reference
    E30KRR
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802783667
