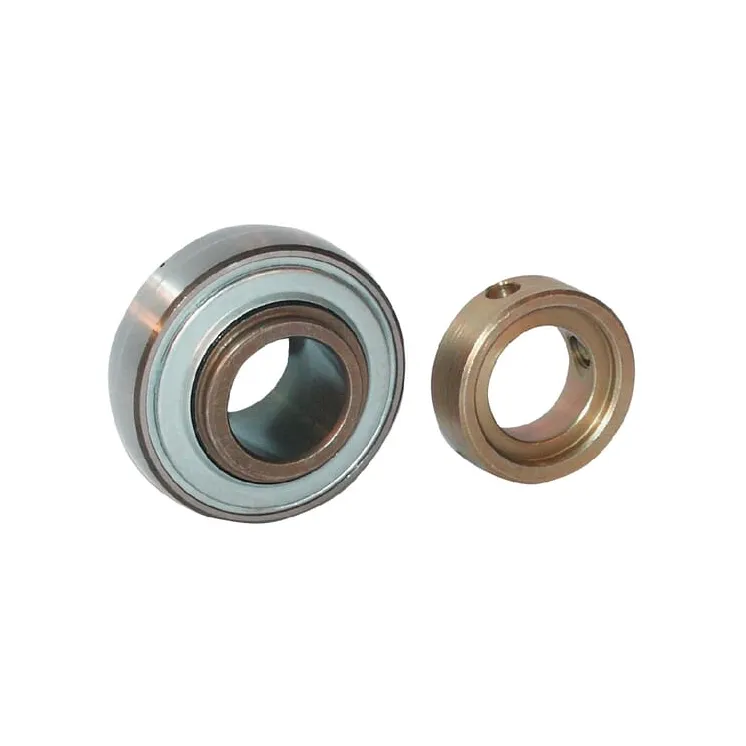

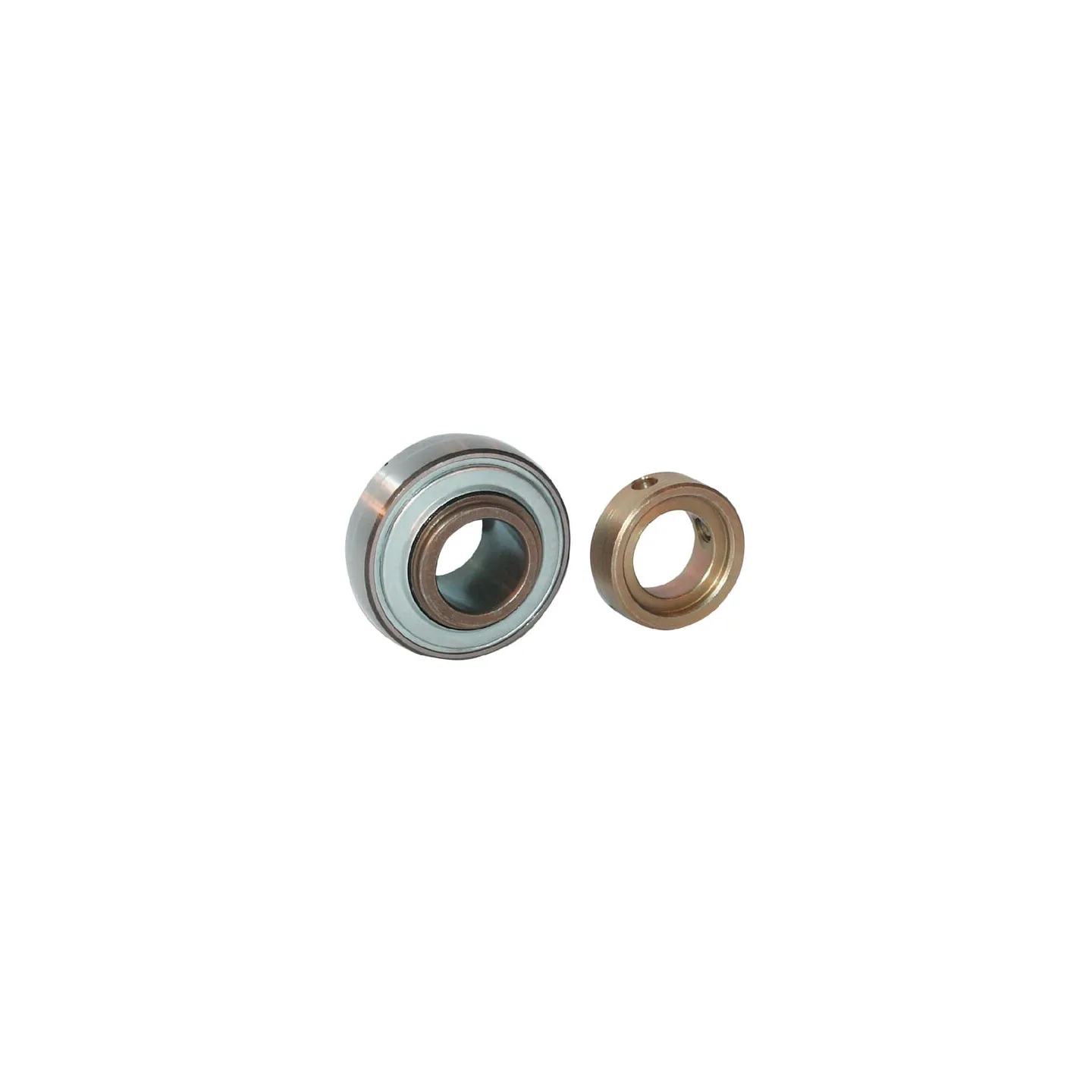

Bearing insert 60x130x33mm GNE60KRRB INA/FAG
search
  • Bearing insert 60x130x33mm GNE60KRRB INA/FAG

Bearing insert 60x130x33mm GNE60KRRB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€211.15
Tax included
4-5 Working days
Bearing insert 60x130x33mm GNE60KRRB INA/FAG
IN WAREHOUSE

63827

Part number
GNE60KRRB
EAN4012802803600
Unit
Each
Product details
  • Extended inner ring with clamp ring on both sides
  • Convex outer ring with lubricating holes
  • R seal
  • Polyamide housing
Includes
  • Clamp bearing
  • Clamp ring
Inside diameter
60 mm
Outside diameter
130 mm
Outer ring width
33 mm
Inner ring width
52 mm
Locking collar and inner ring width
68.4 mm
Locking collar outside diameter
89 mm
Outside diameter of inner ring
79.4 mm
Basic radial load static
52000 N
Basic radial load dynamic
82000 N
Wrench/Spanner size
5.0 mm
Ball centre to grease hole distance
11.2 mm
Sealing width
37.2 mm
Ball centre to end distance
23 mm
Original number equivalent
GNE60-KRR-B
Weight
2.64 kg
  • Brand
    INA/FAG
  • Reference
    GNE60KRRB
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802803600
