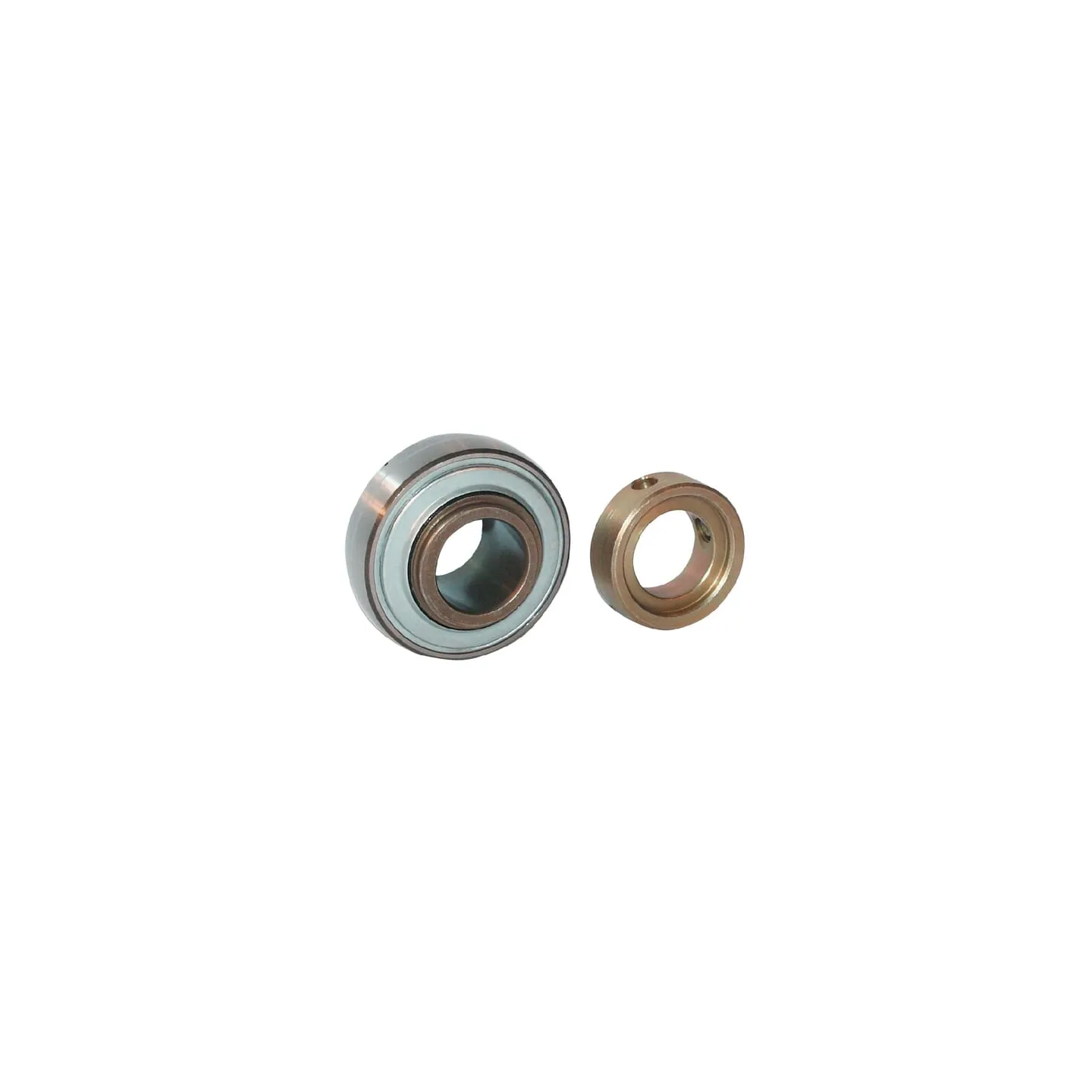

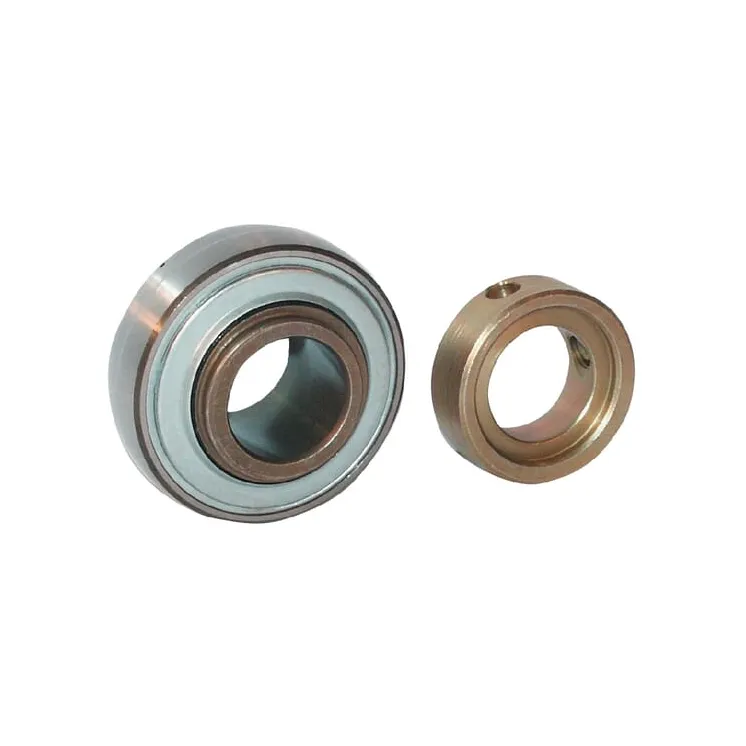

Bearing insert 40x90x23mm GNE40KRRB INA/FAG
search
  • Bearing insert 40x90x23mm GNE40KRRB INA/FAG

Bearing insert 40x90x23mm GNE40KRRB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€76.04
Tax included
4-5 Working days
Bearing insert 40x90x23mm GNE40KRRB INA/FAG
IN WAREHOUSE

63868

Part number
GNE40KRRB
EAN4012802803662
Unit
Each
Product details
  • Extended inner ring with clamp ring on both sides
  • Convex outer ring with lubricating holes
  • R seal
  • Polyamide housing
Includes
  • Clamp bearing
  • Clamp ring
Inside diameter
40 mm
Outside diameter
90 mm
Outer ring width
23 mm
Inner ring width
41 mm
Locking collar and inner ring width
54.6 mm
Locking collar outside diameter
63 mm
Outside diameter of inner ring
53.8 mm
Basic radial load static
26000 N
Basic radial load dynamic
47000 N
Wrench/Spanner size
5.0 mm
Ball centre to grease hole distance
7.5 mm
Sealing width
26 mm
Ball centre to end distance
18 mm
Original number equivalent
GNE40-KRR-B
Weight
1.02 kg
  • Brand
    INA/FAG
  • Reference
    GNE40KRRB
  • In stock
    1 Item
  • Condition
    New
  • EAN
    4012802803662
