Bearing insert 30x62x18mm GRAE30NPPBFA1255 INA/FAG
search
  • Bearing insert 30x62x18mm GRAE30NPPBFA1255 INA/FAG

Bearing insert 30x62x18mm GRAE30NPPBFA1255

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€26.11
Tax included
On Request
Bearing insert 30x62x18mm GRAE30NPPBFA1255 INA/FAG
ON REQUEST

63948

Part number
GRAE30NPPBFA1255
EAN4012802813067
Unit
Each
Long description

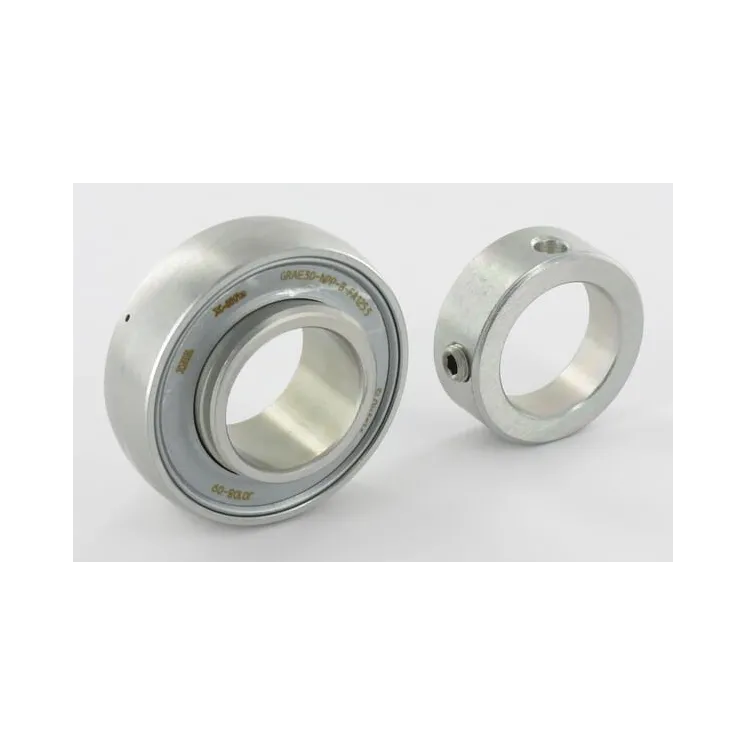

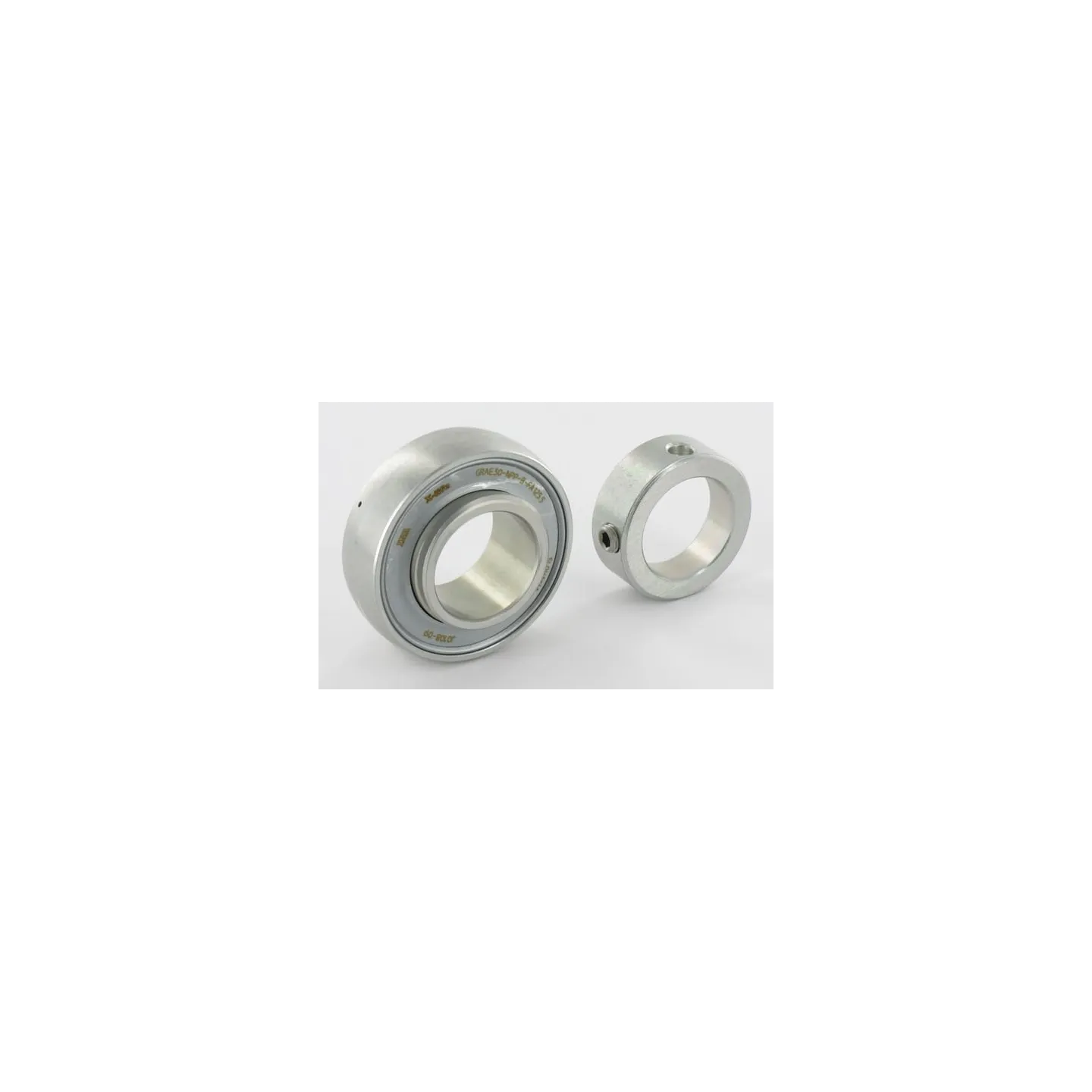

Ball bearing inserts INA/FAG, series GRAE..NPPB
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Convex outer ring with lubricating holes
  • P seal
  • Polyamide housing
dInside diameter
30 mm
DspOutside diameter
62 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
18 mm
CInner ring width
23.8 mm
B1Locking collar and inner ring width
35.8 mm
RLocking collar outside diameter
44 mm
FOutside diameter of inner ring
37.4 mm
Basic radial load static
11300 N
Basic radial load dynamic
20700 N
SWWrench/Spanner size
4.0 mm
GBall centre to grease hole distance
4.7 mm
EBall centre to end distance
9 mm
Original number equivalent
GRAE30-NPP-B-FA125.5
Weight
0.32 kg
  • Brand
    INA/FAG
  • Reference
    GRAE30NPPBFA1255
  • Condition
    New
  • EAN
    4012802813067
