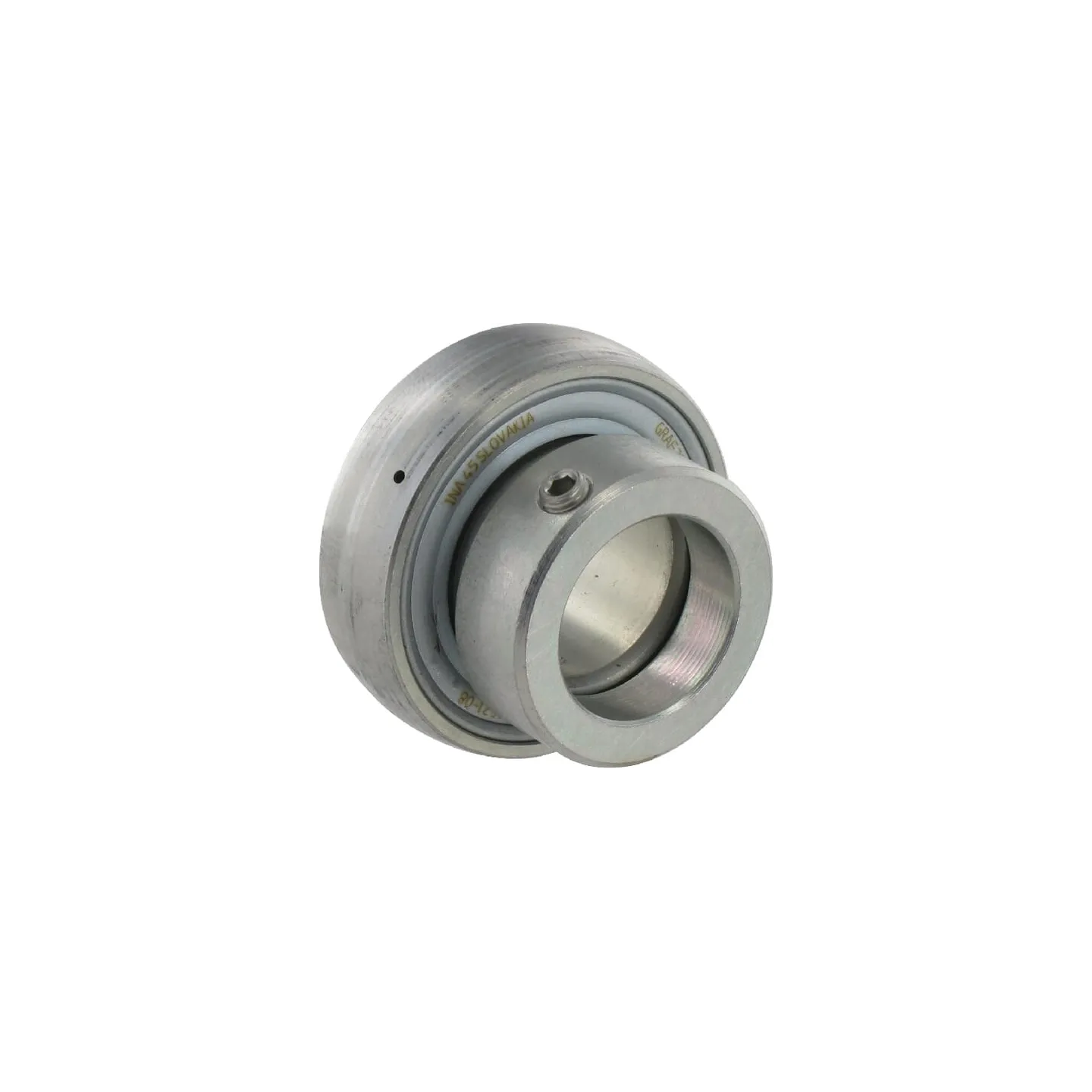

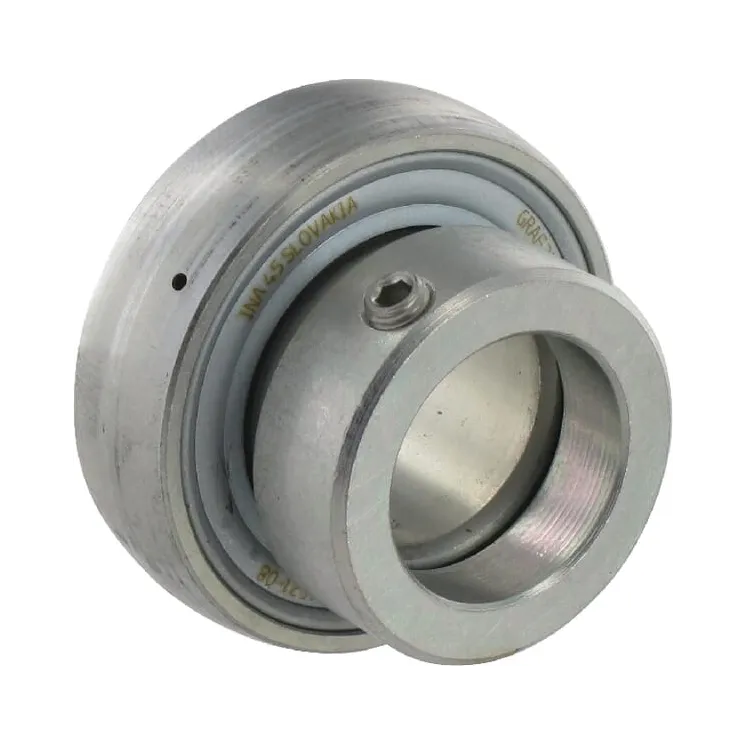

Bearing insert 60x110x24mm GRAE60NPPBFA1255 INA/FAG
search
  • Bearing insert 60x110x24mm GRAE60NPPBFA1255 INA/FAG

Bearing insert 60x110x24mm GRAE60NPPBFA1255

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€119.96
Tax included
On Request
Bearing insert 60x110x24mm GRAE60NPPBFA1255 INA/FAG
ON REQUEST

63975

Part number
GRAE60NPPBFA1255
EAN4012802836202
Unit
Each
Long description
Ball bearing inserts INA/FAG, series GRAE..NPPB
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Convex outer ring with lubricating holes
  • P seal
  • Polyamide housing
dInside diameter
60 mm
DspOutside diameter
110 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
24 mm
CInner ring width
37.1 mm
B1Locking collar and inner ring width
53.1 mm
RLocking collar outside diameter
84 mm
FOutside diameter of inner ring
72 mm
SWWrench/Spanner size
5.0 mm
GBall centre to grease hole distance
7.2 mm
EBall centre to end distance
7.2 mm
Original number equivalent
GRAE60-NPP-B-FA125.5
  • Brand
    INA/FAG
  • Reference
    GRAE60NPPBFA1255
  • Condition
    New
  • EAN
    4012802836202
