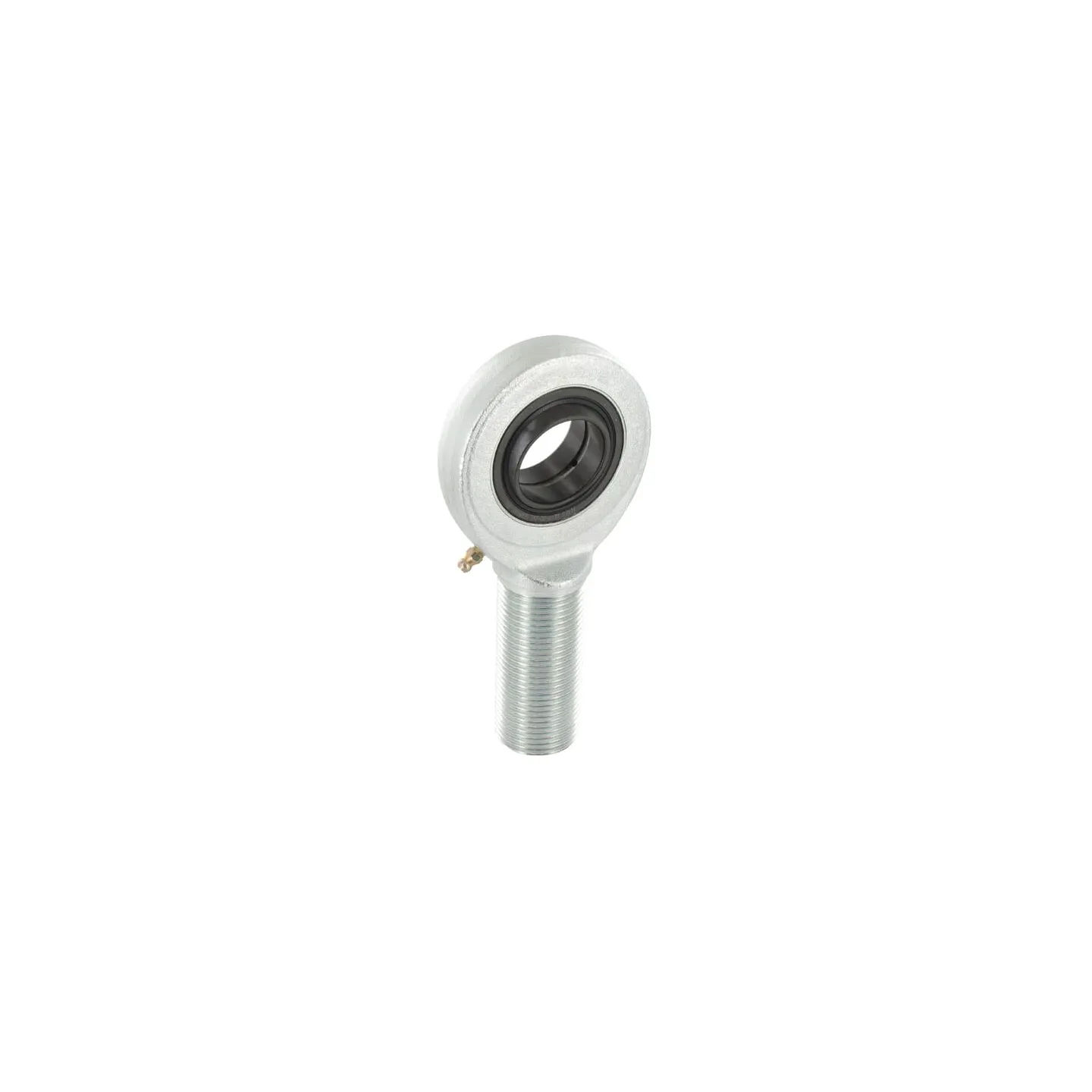

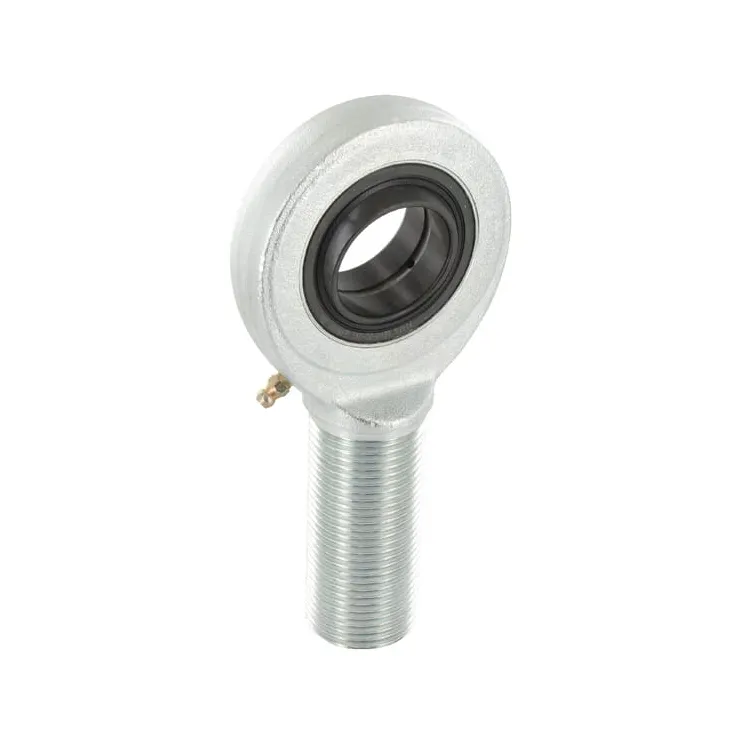

| Part number | GAR40DO2RSINA | |
|---|---|---|
| EAN | 4012802525212 | |
| Unit | Each | |
| Technical info |
| |
| dHole diameter | 40 mm | |
| Hole length | 28 mm | |
| Bearing outside diameter | 62 mm | |
| Outside diameter of inner ring | 45 mm | |
| Edge angle | 7 ° | |
| d2Total length | 196 mm | |
| Shaft to center distance | 48 mm | |
| Thread diameter | M39 | |
| Thread pitch | 3.00 mm | |
| Thread direction | Right | |
| Thread length | 86 mm | |
| Hole centre to bottom distance | 150 mm | |
| Head outside diameter | 92 mm | |
| Head width (hole length) | 23 mm | |
| Surface treatment | Zinc-plated | |
| Basic radial load dynamic | 99100 N | |
| Basic radial load static | 194000 N | |
| Original number equivalent | GAR40-DO-2RS | |
| Weight | 2 kg |
