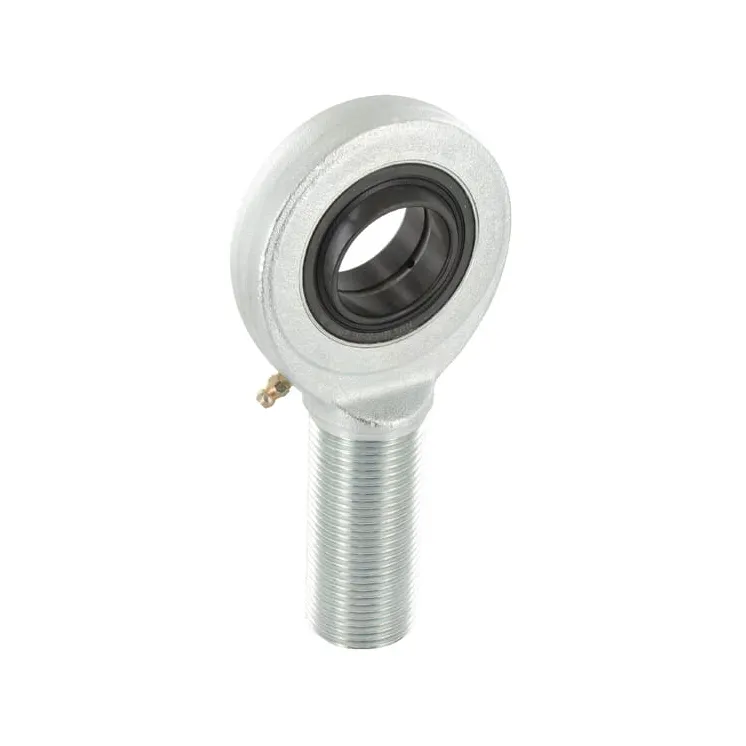

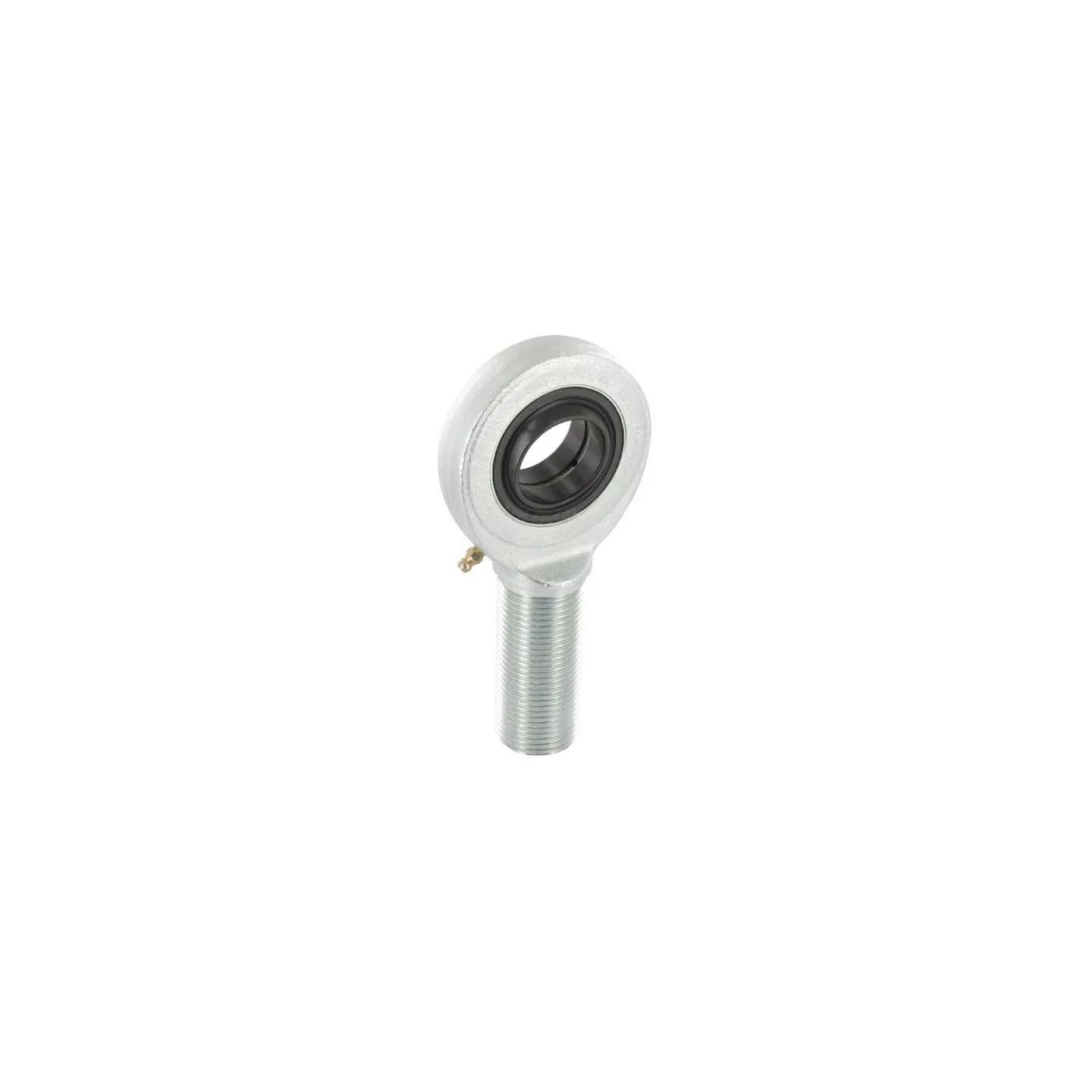

| Part number | GAR25DO2RSINA | |
|---|---|---|
| EAN | 4012802525069 | |
| Unit | Each | |
| Technical info |
| |
| dHole diameter | 25 mm | |
| Hole length | 20 mm | |
| Bearing outside diameter | 42 mm | |
| Outside diameter of inner ring | 29.3 mm | |
| Edge angle | 7 ° | |
| d2Total length | 126 mm | |
| Shaft to center distance | 32 mm | |
| Thread diameter | M24 | |
| Thread pitch | 2.00 mm | |
| Thread direction | Right | |
| Thread length | 53 mm | |
| Hole centre to bottom distance | 94 mm | |
| Head outside diameter | 64 mm | |
| Head width (hole length) | 17 mm | |
| Surface treatment | Zinc-plated | |
| Basic radial load dynamic | 48300 N | |
| Basic radial load static | 88300 N | |
| Original number equivalent | GAR25-DO-2RS | |
| Weight | 0.6 kg |
