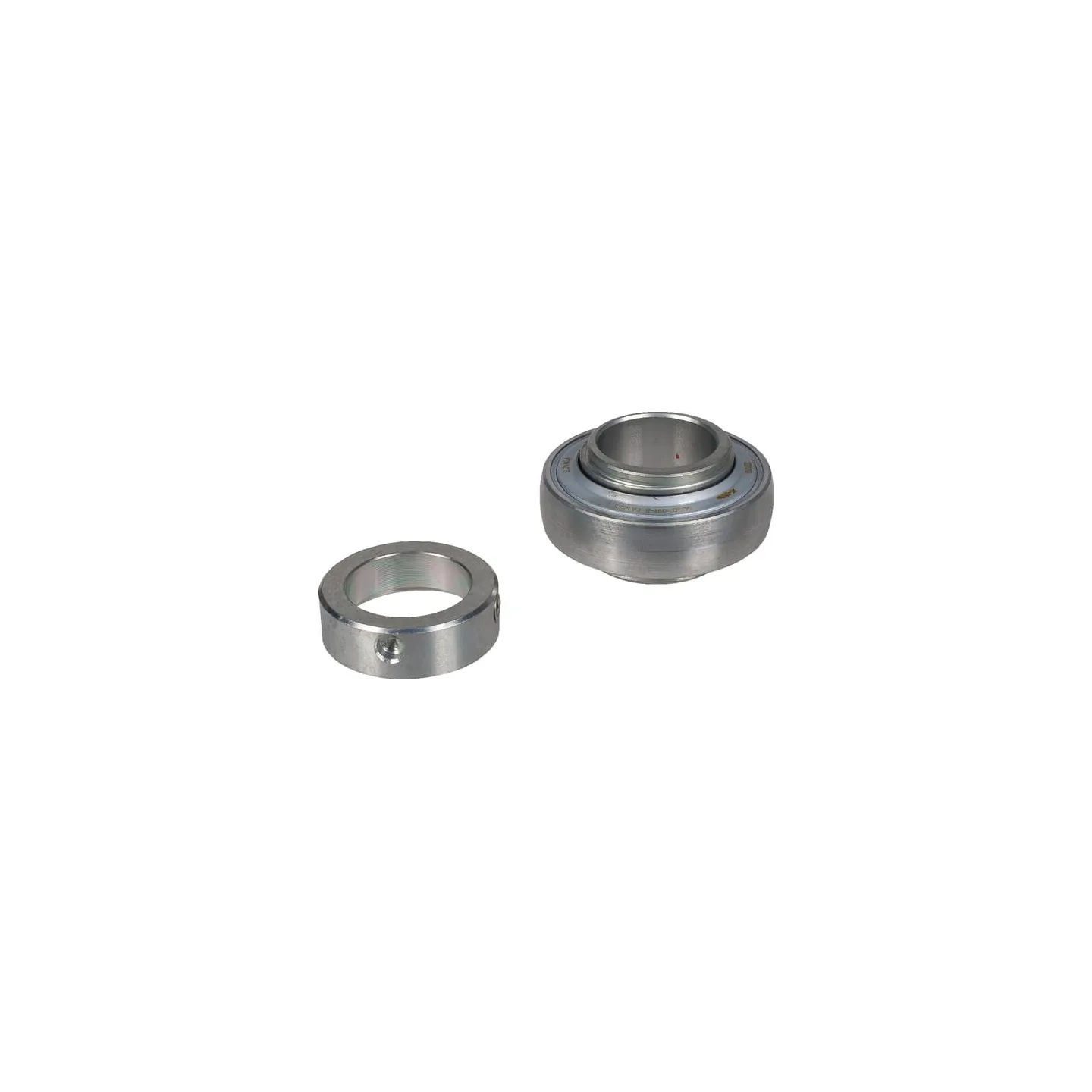

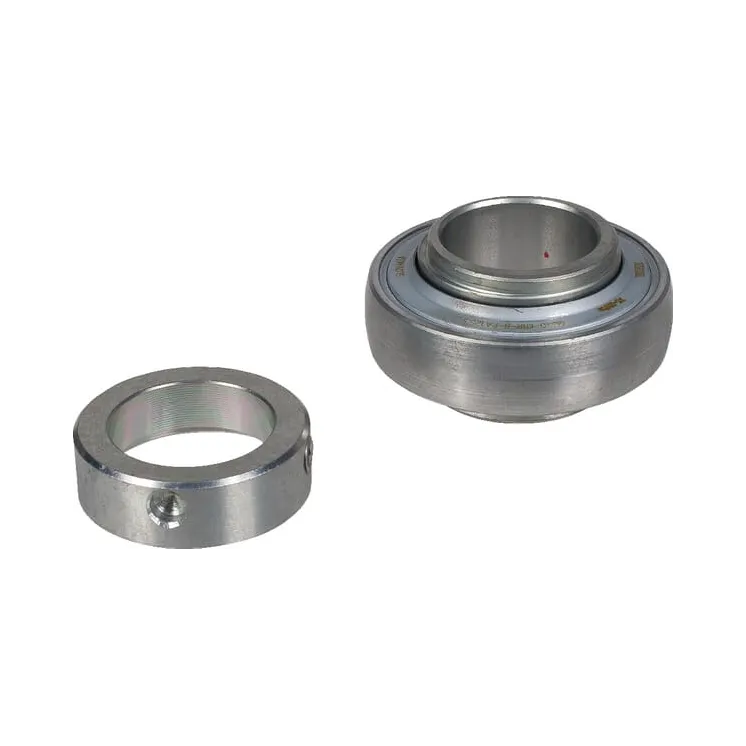

Bearing insert 50x90x22mm GE50XLKRRBFA1255 INA/FAG
search
  • Bearing insert 50x90x22mm GE50XLKRRBFA1255 INA/FAG

Bearing insert 50x90x22mm GE50XLKRRBFA1255

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€77.94
Tax included
On Request
Bearing insert 50x90x22mm GE50XLKRRBFA1255 INA/FAG
ON REQUEST

64156

Part number
GE50XLKRRBFA1255
EAN4012802812657
Unit
Each
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Extended inner ring with clamp ring on both sides
  • Convex outer ring with lubricating holes
  • R seal
  • Polyamide housing
Technical info
Supplement FA: rust-proof Corrotect design
dInside diameter
50 mm
DspOutside diameter
90 mm
Consists of
  • Clamp bearing
  • Clamp ring
COuter ring width
22 mm
BInner ring width
49.2 mm
Locking collar and inner ring width
62.8 mm
Locking collar outside diameter
69 mm
Locking collar width
62.8 mm
d1Outside diameter of inner ring
62.8 mm
Basic radial load static
23200 N
Basic radial load dynamic
37500 N
Ball centre to grease hole distance
6.9 mm
Sealing width
26.4 mm
Ball centre to end distance
24.6 mm
Original number equivalent
GE50-XL-KRR-B-FA125.5
Weight
0.98 kg
  • Brand
    INA/FAG
  • Reference
    GE50XLKRRBFA1255
  • Condition
    New
  • EAN
    4012802812657
