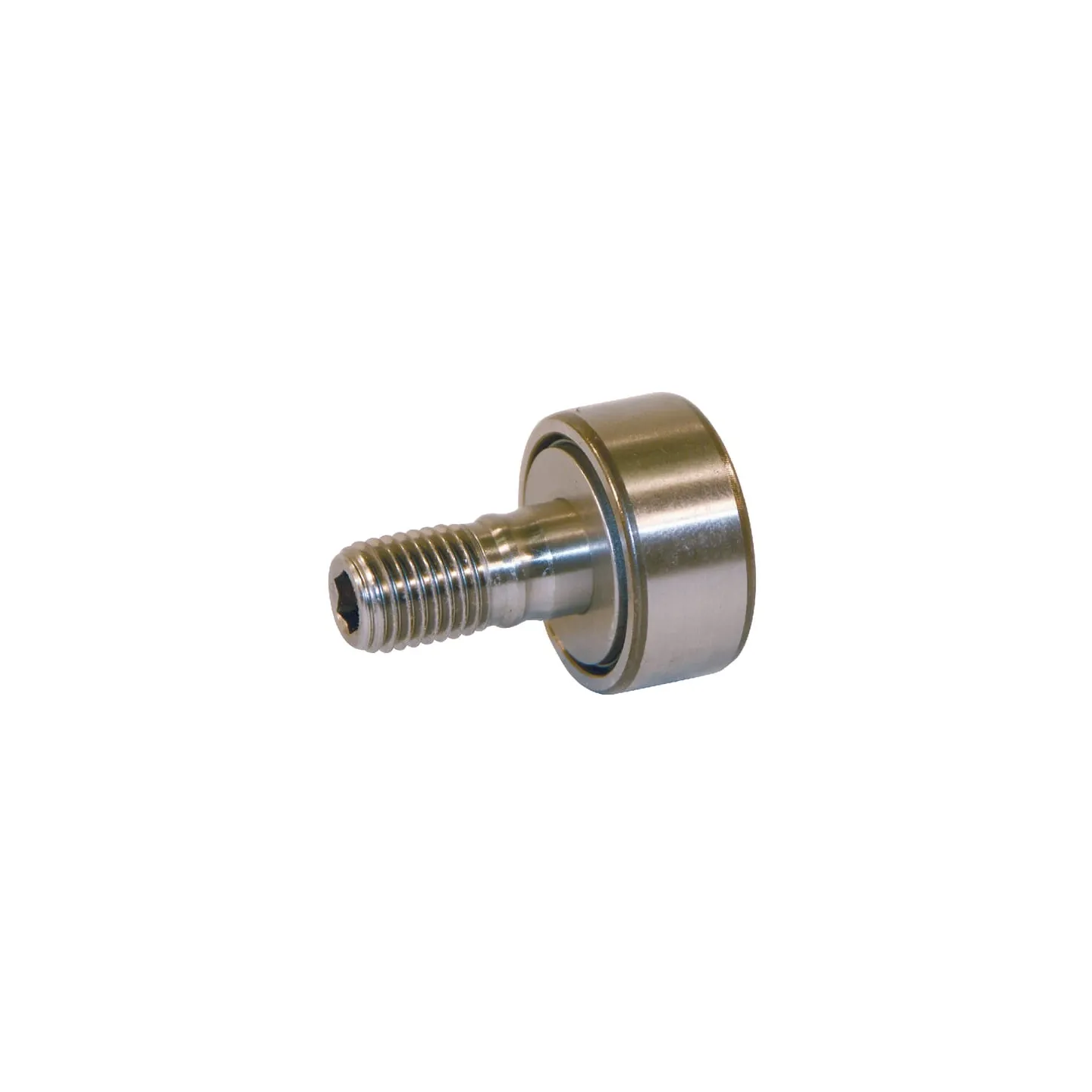

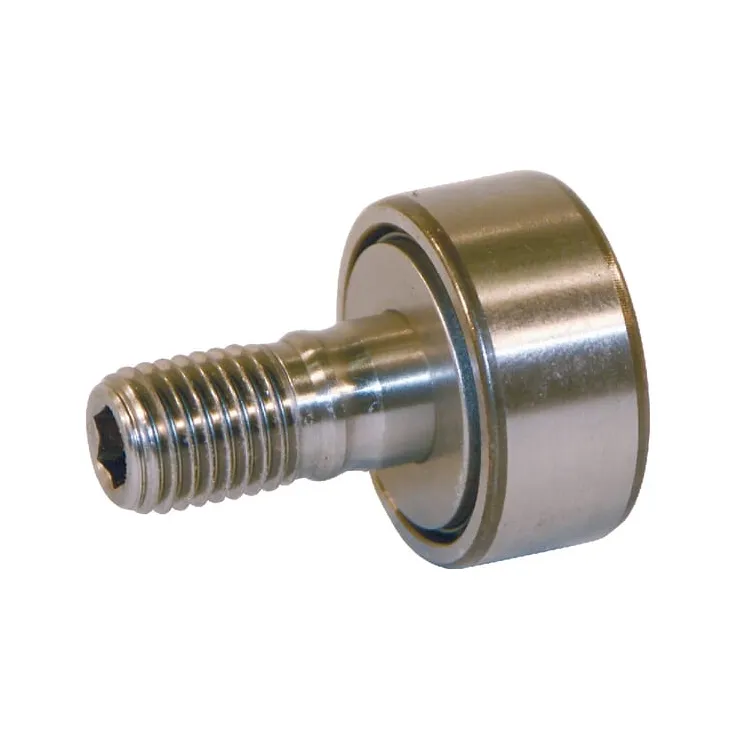

Stud type track roller KR19PPA INA/FAG
search
  • Stud type track roller KR19PPA INA/FAG

Stud type track roller KR19PPA

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€33.00
Tax included
4-5 Working days
Stud type track roller KR19PPA INA/FAG
IN WAREHOUSE

64490

Part number
KR19PPA
EAN4012802417593
Unit
Each
Long description
Track rollers single and double-row INA/FAG, series KR .. B
Details
  • Thick-walled outer ring
  • Track is slightly ball-shaped
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Solid shaft with guide bore
  • With axial guidance via driving discs
  • NMT add-on: equipped with a nut
Benefits
  • Can absorb high radial loads
  • No forces on edges with uneven standing
Inside diameter
8 mm
DOutside diameter
19 mm
CWidth
11 mm
Bearing model type
Stud type track rollers
Basic radial load static
4100 N
Basic radial load dynamic
3550 N
d1Shaft diameter
8 mm
B2Shaft length
20 mm
IGMounting thread length
10 mm
GMounting thread diameter
M8
Max working temperature
100 °C
Min working temperature
-30 °C
Original number equivalent
KR19-PP-A
BTotal length
32 mm
GMounting thread pitch
1.25 mm
  • Brand
    INA/FAG
  • Reference
    KR19PPA
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802417593
