Track roller KR40XPPA INA/FAG
search
  • Track roller KR40XPPA INA/FAG

Track roller KR40XPPA

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€84.91
Tax included
On Request

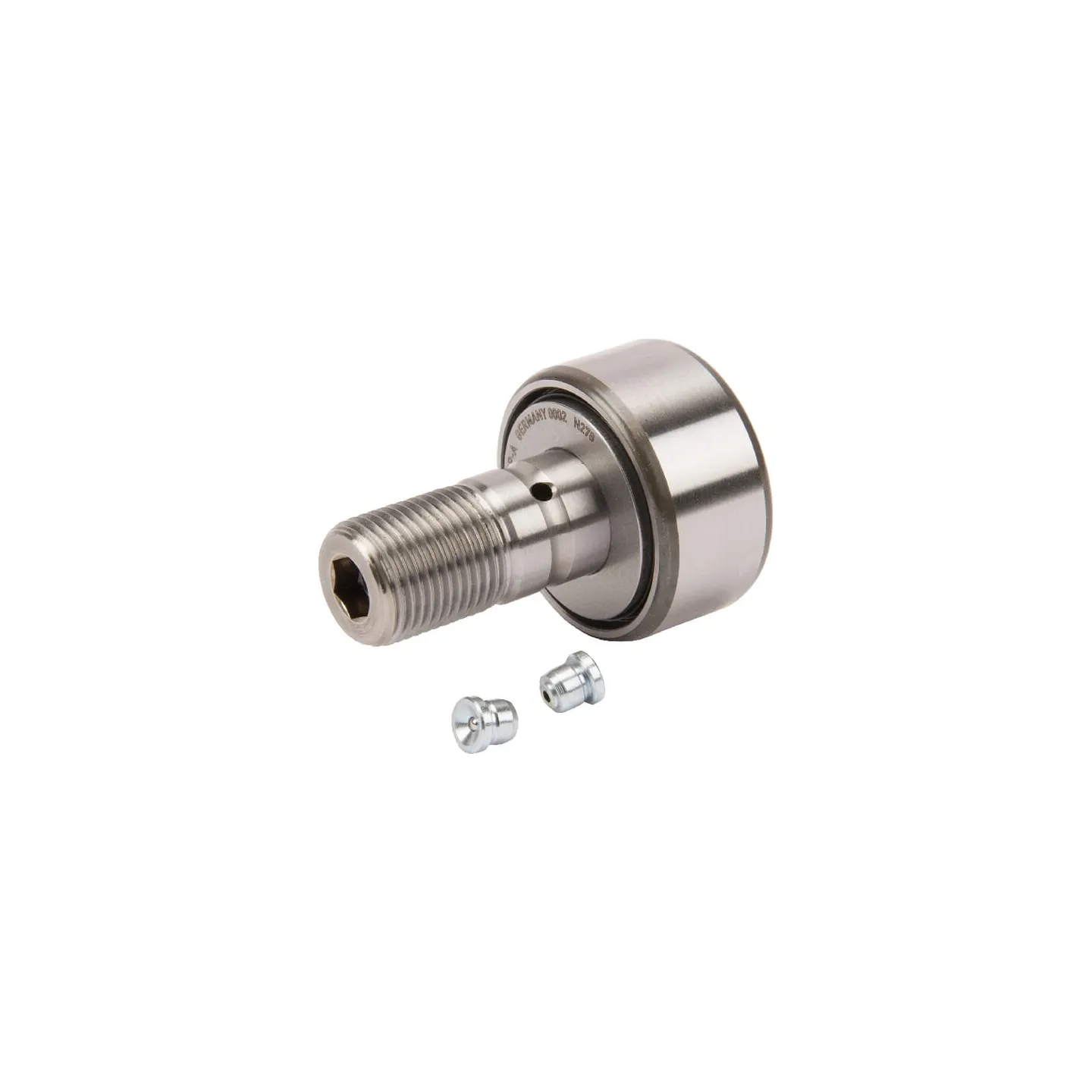

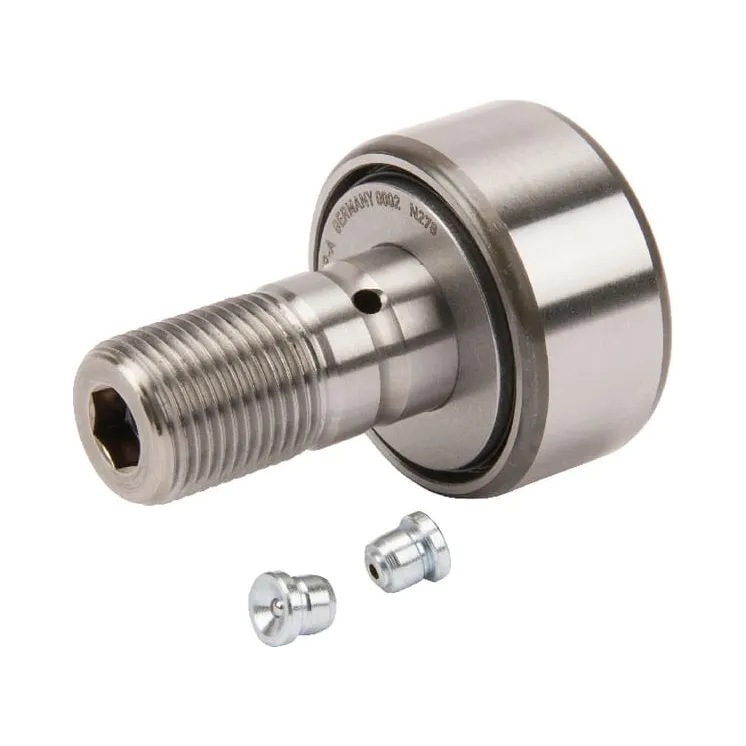

Track roller KR40XPPA INA/FAG
ON REQUEST

64495

Part number
KR40XPPA
EAN4012802427868
Unit
Each
Long description
Track rollers single and double-row INA/FAG, series KR .. PPX
Details
  • Sealed on both sides by axially moving three-level plastic seal
  • Thick-walled outer ring
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Solid shaft with guide bore
  • With axial guidance via driving discs
  • NMT add-on: equipped with a nut
Benefits
  • Reduces friction and lubricant use
  • Can absorb high radial loads
Inside diameter
18 mm
DOutside diameter
40 mm
Sealing
2RS
Bearing model type
Track rollers
Basic radial load static
16000 N
Basic radial load dynamic
10900 N
Rows number
1
Outer ring width
20 mm
d1Shaft diameter
18 mm
B1Shaft length
36.5 mm
G1Mounting thread length
19 mm
Max working temperature
100 °C
Min working temperature
-30 °C
Regreasable
Yes
Original number equivalent
KR40-X-PP-A
BTotal length
58 mm
Mounting thread pitch
1.50 mm
  • Brand
    INA/FAG
  • Reference
    KR40XPPA
  • Condition
    New
  • EAN
    4012802427868
