Track roller with nut KRV32PPANMT INA/FAG
search
  • Track roller with nut KRV32PPANMT INA/FAG

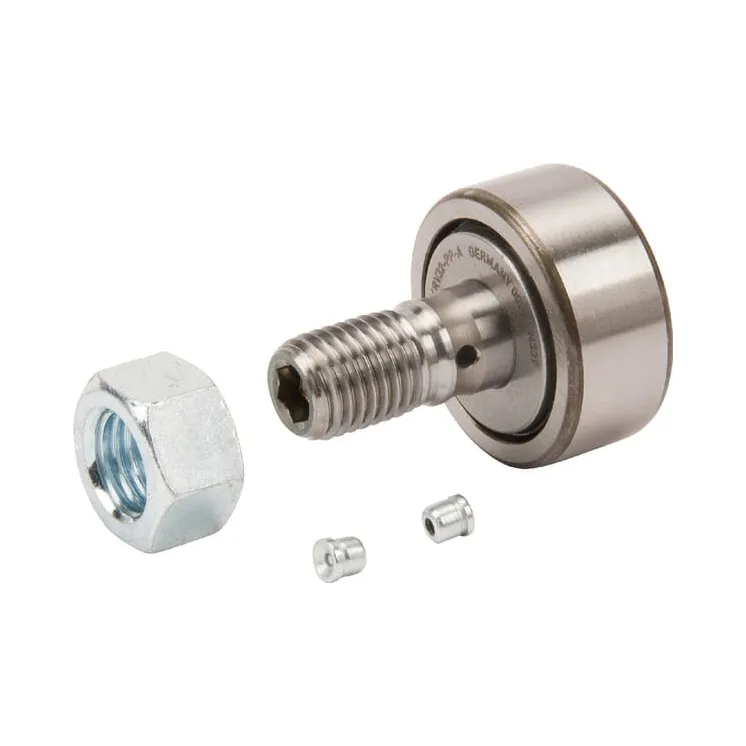

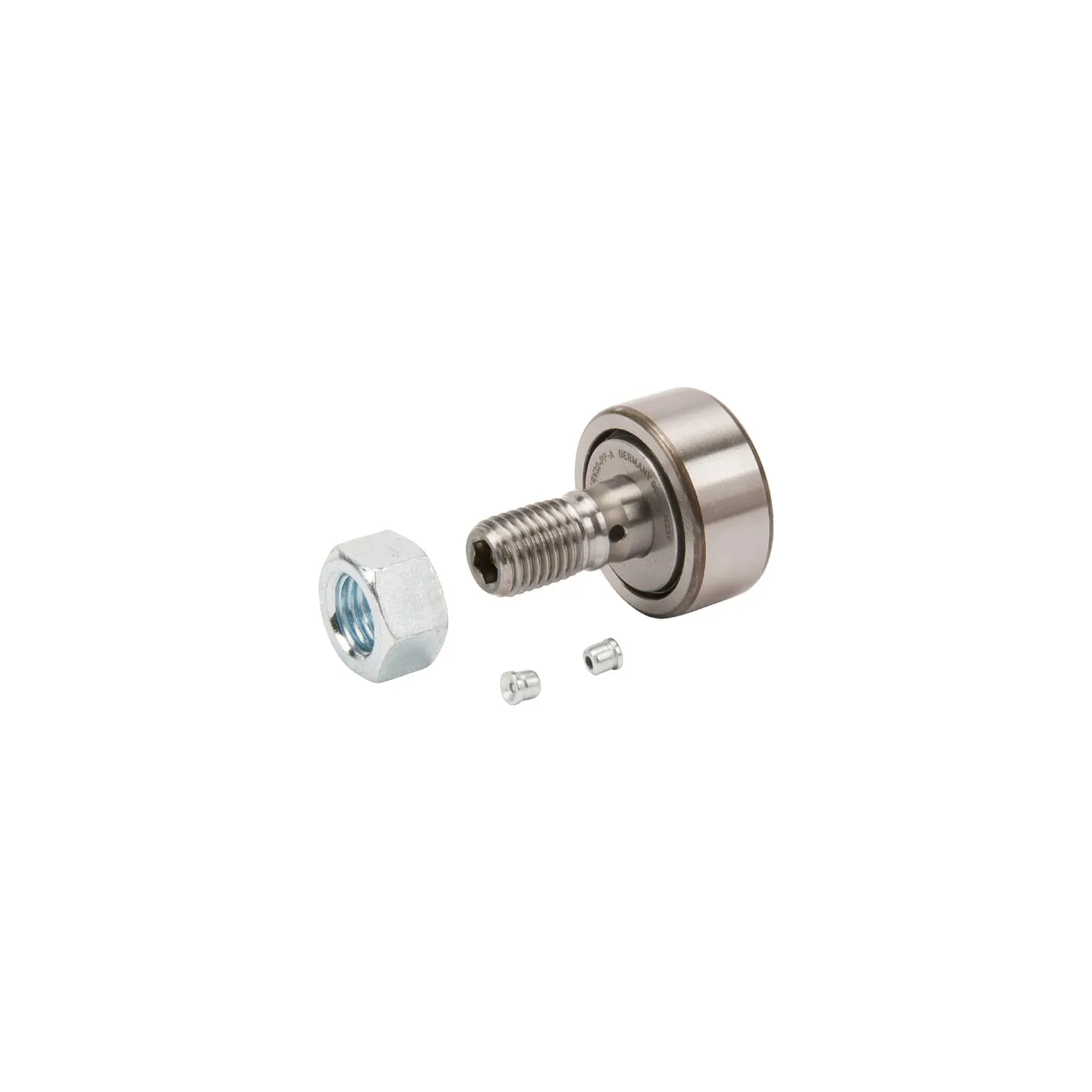

Track roller with nut KRV32PPANMT

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€63.38
Tax included
On Request
Track roller with nut KRV32PPANMT INA/FAG
ON REQUEST

64496

  • Brand
    INA/FAG
  • Reference
    KRV32PPANMT
  • Condition
    New
  • EAN
    4054362448488
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
KRV32PPANMT
EAN4054362448488
Unit
Each
Long description
Track rollers SKF, series KRV .. PP
Details
Three-stage seal with axially moving plastic rings on both sides of the track roller bearing
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Thick-walled outer ring with profiled lateral surface
  • Solid inner part with journal
  • Fitted with thread
  • Driving disc
  • Single or two-row sets of cylinder rollers or needles
Technical info
  • Outer ring of lateral surface is annular (R500)
  • Temperature range: -30°C to +140°C
  • Cage is full complement
  • With axial guidance via driving disc
Inside diameter
12 mm
DOutside diameter
32 mm
CWidth
14 mm
Sealing
2RS
Bearing model type
Track rollers
Basic radial load static
16300 N
Basic radial load dynamic
10000 N
Rows number
1
Outer ring width
14 mm
d1Shaft diameter
12 mm
B1Shaft length
25 mm
G1Mounting thread length
13 mm
GMounting thread diameter
M12
Max working temperature
100 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.111 kg
Original number equivalent
KRV32-PP-A-NMT
BTotal length
40 mm
Mounting thread pitch
1.50 mm
