Stud type track roller KRV26PPA INA/FAG
search
  • Stud type track roller KRV26PPA INA/FAG

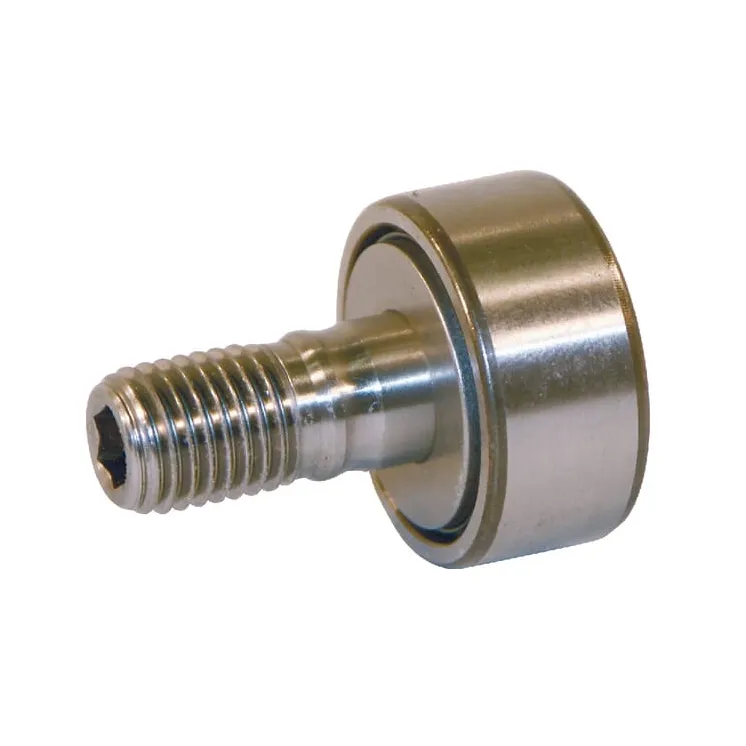

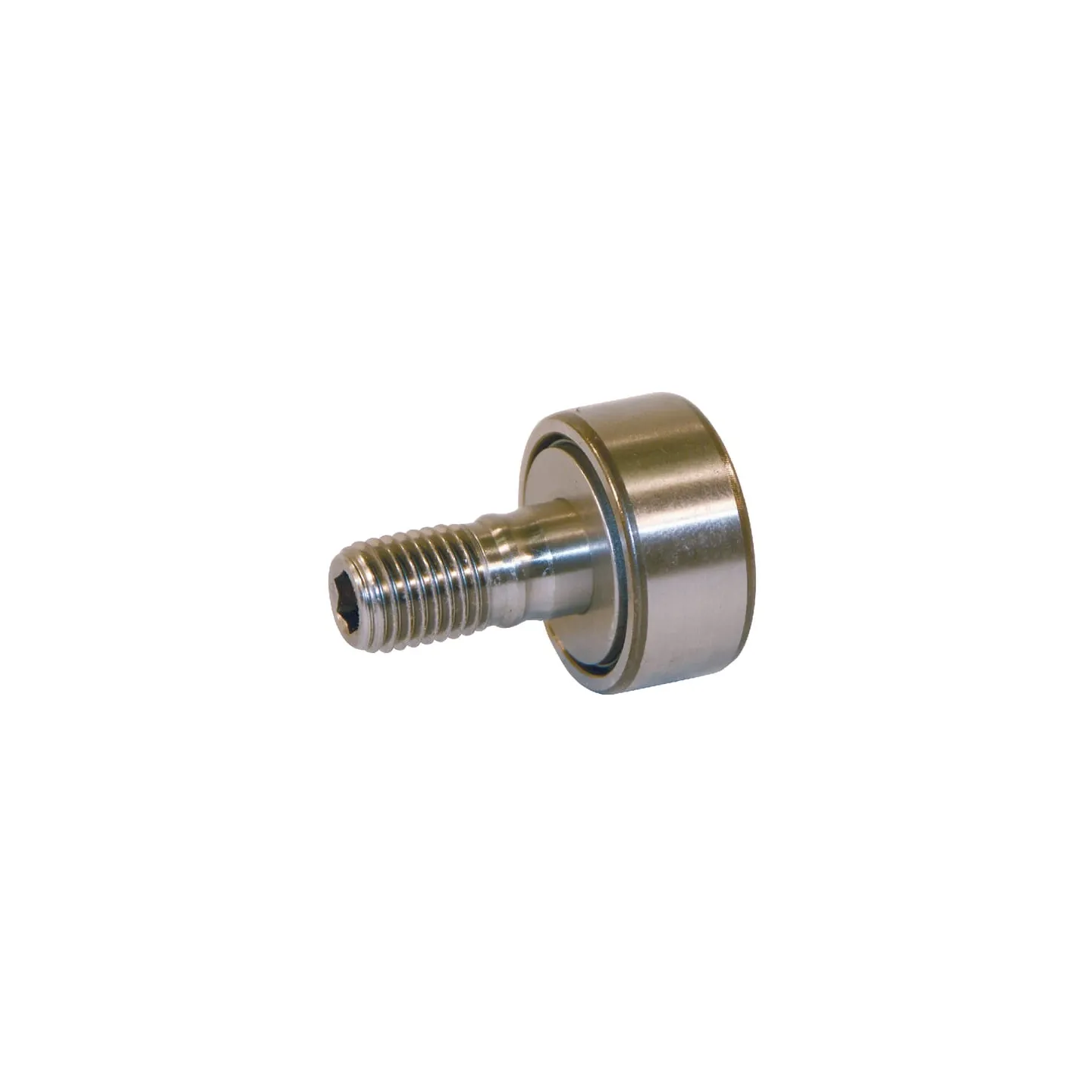

Stud type track roller KRV26PPA

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€65.05
Tax included
4-5 Working days
Stud type track roller KRV26PPA INA/FAG
IN WAREHOUSE

64497

  • Brand
    INA/FAG
  • Reference
    KRV26PPA
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802428339
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
KRV26PPA
EAN4012802428339
Unit
Each
Long description
Track rollers SKF, series KRV .. PP
Details
Three-stage seal with axially moving plastic rings on both sides of the track roller bearing
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Thick-walled outer ring with profiled lateral surface
  • Solid inner part with journal
  • Fitted with thread
  • Driving disc
  • Single or two-row sets of cylinder rollers or needles
Technical info
  • Outer ring of lateral surface is annular (R500)
  • Temperature range: -30°C to +140°C
  • Cage is full complement
  • With axial guidance via driving disc
Inside diameter
10 mm
DOutside diameter
26 mm
CWidth
12 mm
Sealing
2RS
Bearing model type
Stud type track rollers
Basic radial load static
11600 N
Basic radial load dynamic
7300 N
Rows number
1
Outer ring width
12 mm
d1Shaft diameter
10 mm
B1Shaft length
23 mm
G1Mounting thread length
12 mm
GMounting thread diameter
M10
Max working temperature
100 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.05592 kg
Original number equivalent
KRV26-PP-A
BTotal length
36 mm
Mounting thread pitch
1.00 mm
