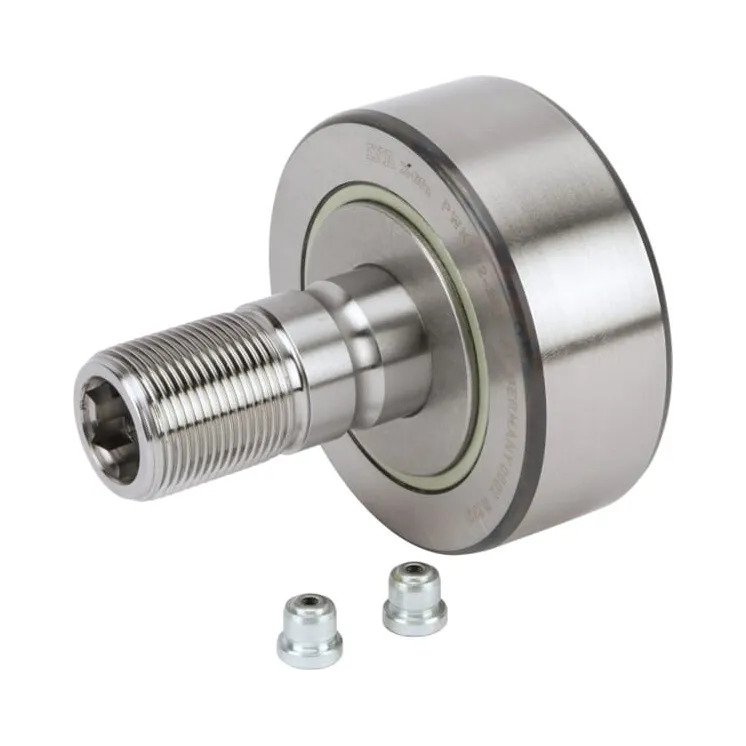

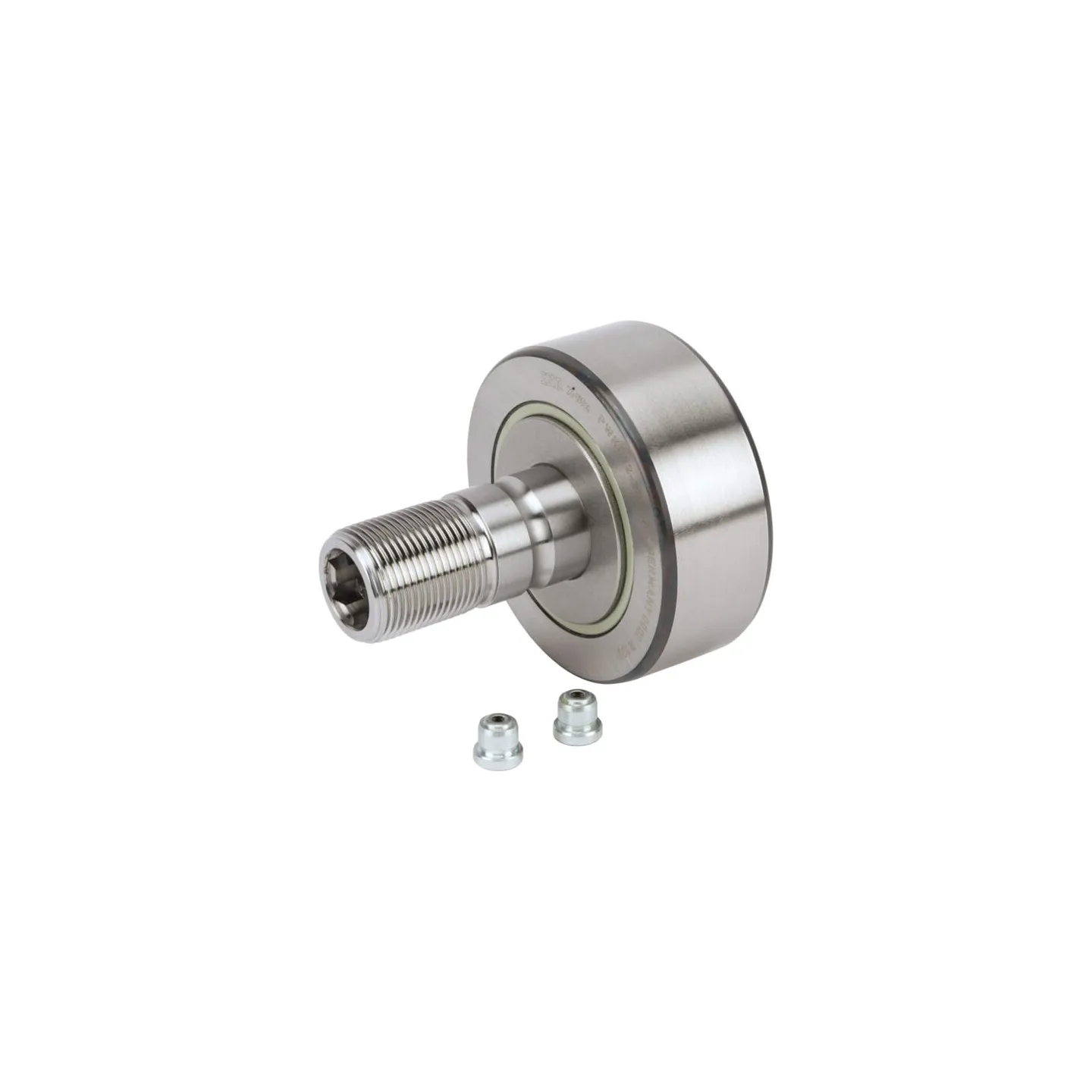

Track roller PWKR722RSXL INA/FAG
search
  • Track roller PWKR722RSXL INA/FAG

Track roller PWKR722RSXL

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€164.54
Tax included
On Request
Track roller PWKR722RSXL INA/FAG
ON REQUEST

64999

  • Brand
    INA/FAG
  • Reference
    PWKR722RSXL
  • Condition
    New
  • EAN
    4047643212076
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
PWKR722RSXL
EAN4047643212076
Unit
Each
Long description
Track rollers single and double-row INA/FAG, series NUKR
Details
  • Labyrinth seal
  • Thick-walled outer ring
  • Track is slightly ball-shaped
Application range
  • Packaging machines
  • Transport systems
  • Roll-up doors
  • Roller tensioners
Properties
  • Solid shaft with guide bore
  • With axial guidance via driving discs
  • Roller bearing is fully rolling
  • NMT add-on: equipped with a nut
Benefits
  • Reduces friction and lubricant use
  • Can absorb high radial loads
  • No forces on edges with uneven standing
Inside diameter
24 mm
DOutside diameter
72 mm
CWidth
28 mm
Sealing
2RS
Bearing model type
Track rollers
Basic radial load static
53000 N
Basic radial load dynamic
39000 N
Rows number
2
Outer ring width
28 mm
d1Shaft diameter
24 mm
d1Shaft length
49.5 mm
IGMounting thread length
25 mm
GMounting thread diameter
M24
Max working temperature
120 °C
Min working temperature
-30 °C
Regreasable
Yes
Weight
0.969 kg
Original number equivalent
PWKR72-2RS-XL
BTotal length
80 mm
Mounting thread pitch
1.50 mm
