Bearing insert 30x55x13mm RALE30NPPB INA/FAG
search
  • Bearing insert 30x55x13mm RALE30NPPB INA/FAG

Bearing insert 30x55x13mm RALE30NPPB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€35.34
Tax included
On Request
Bearing insert 30x55x13mm RALE30NPPB INA/FAG
ON REQUEST

65028

Part number
RALE30NPPB
EAN4012802781960
Unit
Each
Long description

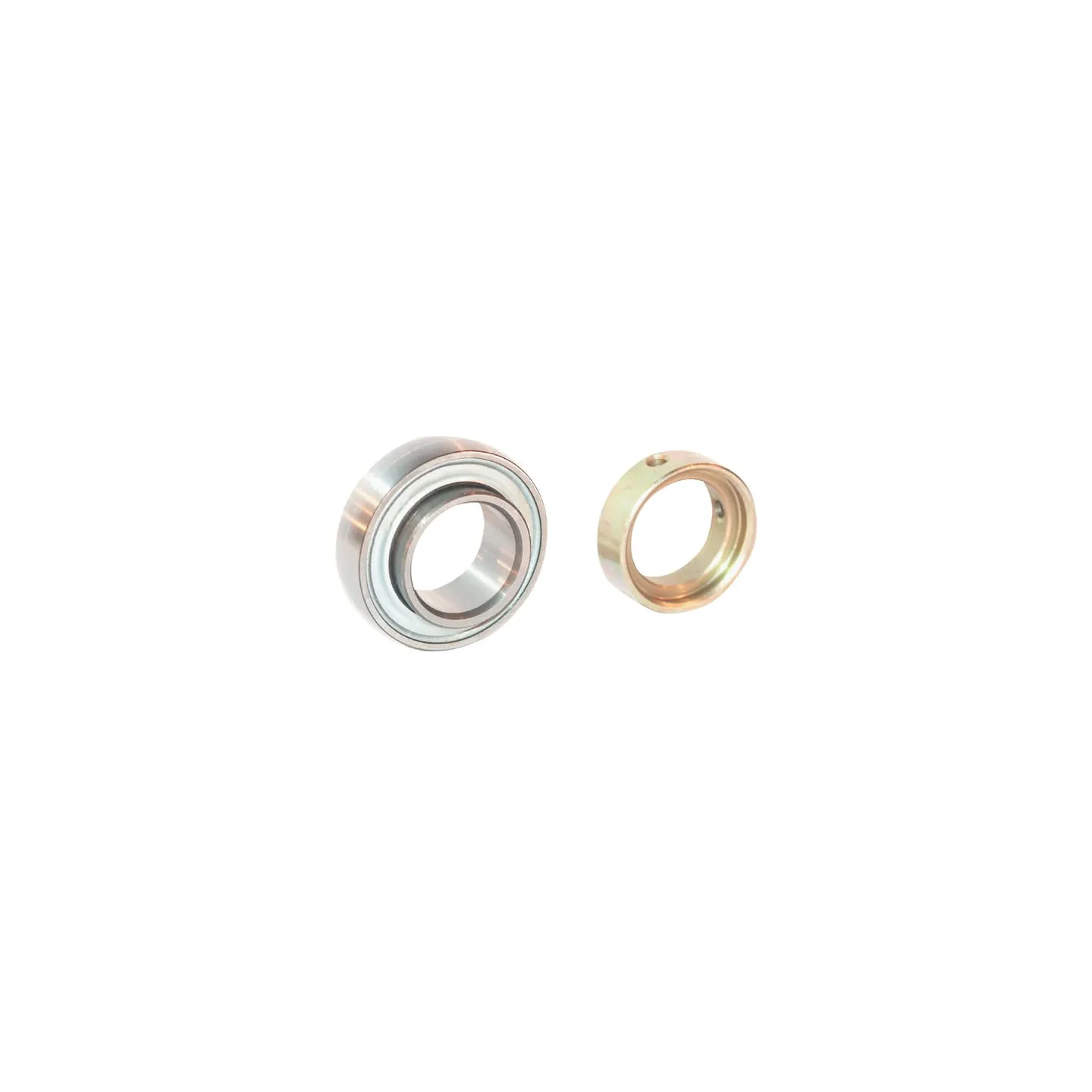

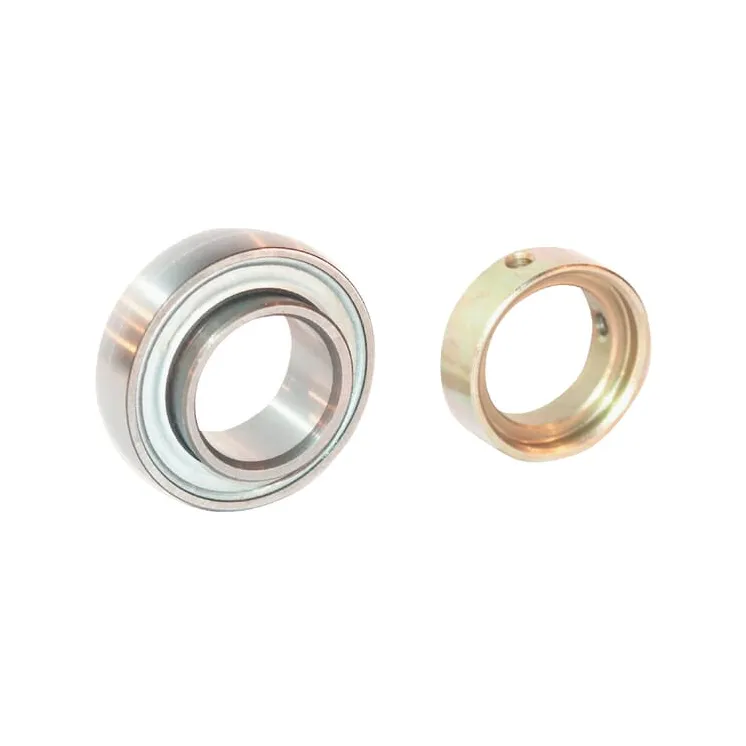

Ball bearing inserts INA/FAG, series RALE..NPPB
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Convex outer ring without lubricating holes
  • P seal
  • Polyamide housing
dInside diameter
30 mm
DOutside diameter
55 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
13 mm
CInner ring width
18.5 mm
Locking collar and inner ring width
26.5 mm
Locking collar outside diameter
42.5 mm
FOutside diameter of inner ring
35.7 mm
Basic radial load static
8300 N
Basic radial load dynamic
14100 N
Wrench/Spanner size
2.5 mm
Ball centre to end distance
6.5 mm
Original number equivalent
RALE30-NPP-B
Weight
0.18 kg
  • Brand
    INA/FAG
  • Reference
    RALE30NPPB
  • Condition
    New
  • EAN
    4012802781960
