Bearing insert 20x42x12mm RALE20NPPB INA/FAG
search
  • Bearing insert 20x42x12mm RALE20NPPB INA/FAG

Bearing insert 20x42x12mm RALE20NPPB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€20.62
Tax included
4-5 Working days
Bearing insert 20x42x12mm RALE20NPPB INA/FAG
IN WAREHOUSE

65050

Part number
RALE20NPPB
EAN4012802782097
Unit
Each
Long description

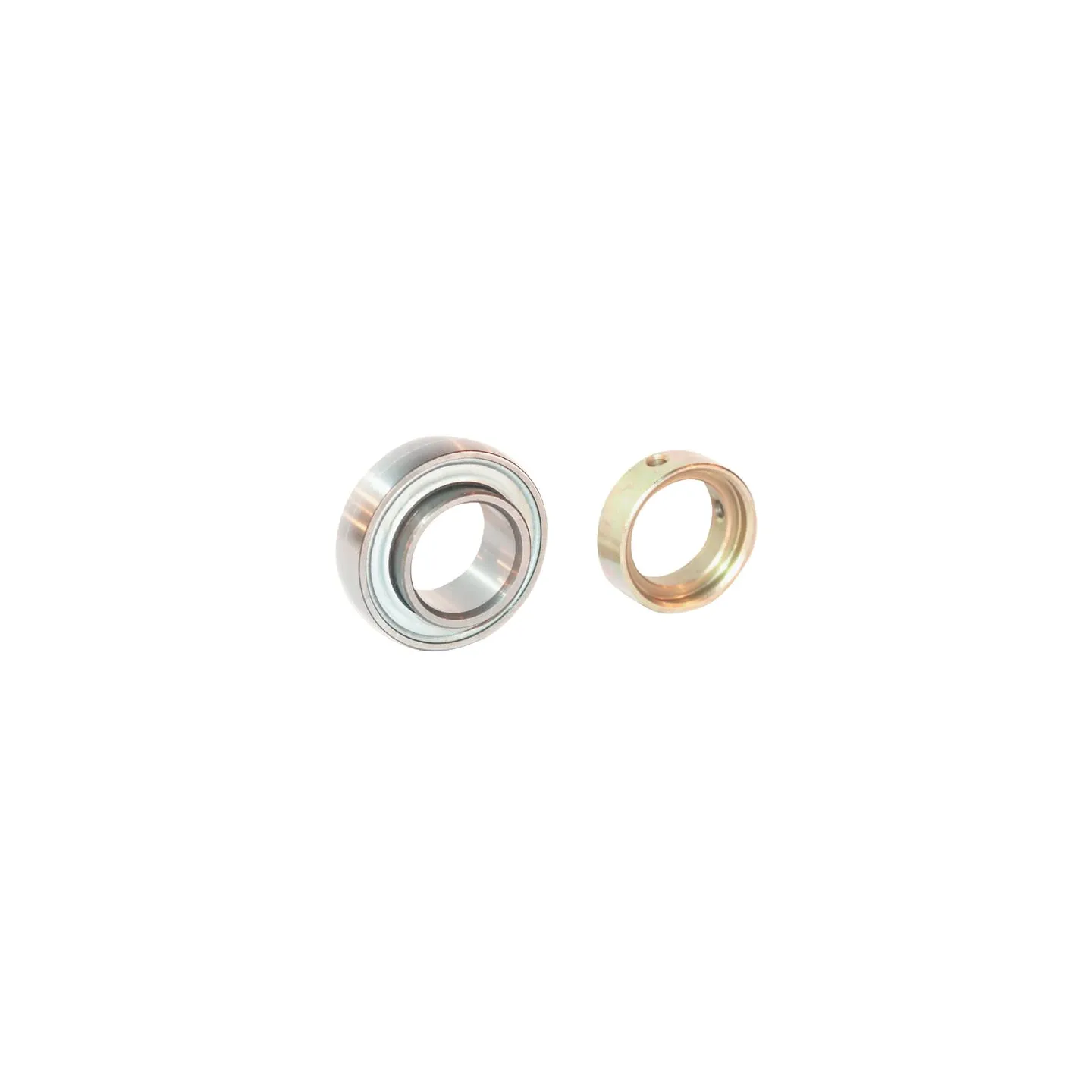

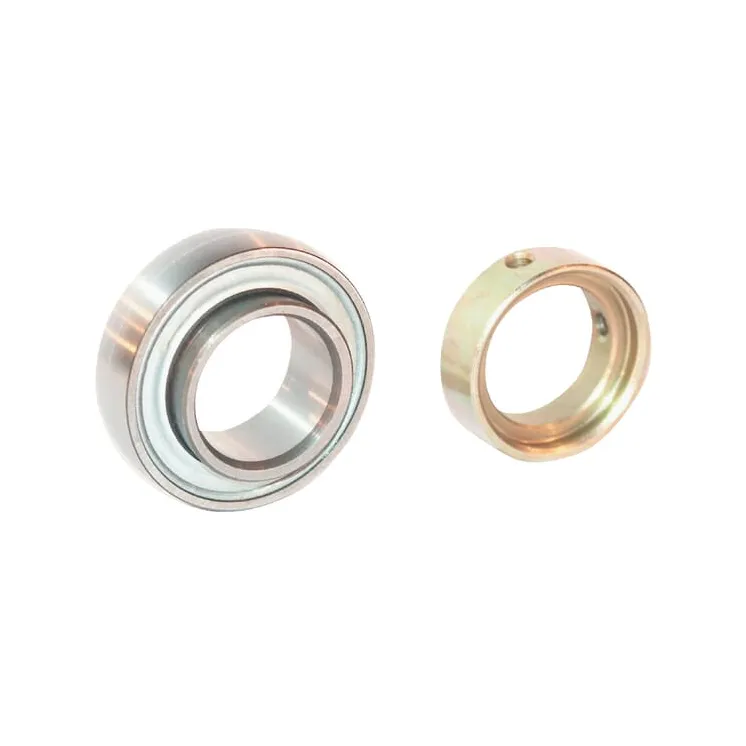

Ball bearing inserts INA/FAG, series RALE..NPPB
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Convex outer ring without lubricating holes
  • P seal
  • Polyamide housing
dInside diameter
20 mm
DOutside diameter
42 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
12 mm
CInner ring width
16.7 mm
Locking collar and inner ring width
24.6 mm
Locking collar outside diameter
30 mm
FOutside diameter of inner ring
25.4 mm
Basic radial load static
5000 N
Basic radial load dynamic
10000 N
Wrench/Spanner size
2.5 mm
Ball centre to end distance
6 mm
Original number equivalent
RALE20-NPP-B
Weight
0.1 kg
  • Brand
    INA/FAG
  • Reference
    RALE20NPPB
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802782097
