Bearing insert 25x47x12mm RALE25NPPB INA/FAG
search
  • Bearing insert 25x47x12mm RALE25NPPB INA/FAG

Bearing insert 25x47x12mm RALE25NPPB

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€29.25
Tax included
4-5 Working days
Bearing insert 25x47x12mm RALE25NPPB INA/FAG
IN WAREHOUSE

65073

Part number
RALE25NPPB
EAN4012802782059
Unit
Each
Long description

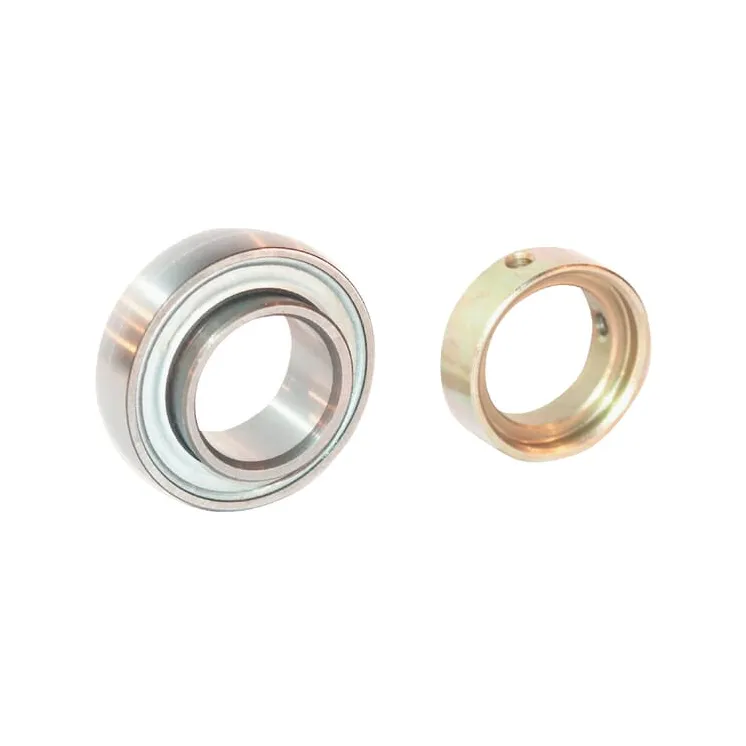

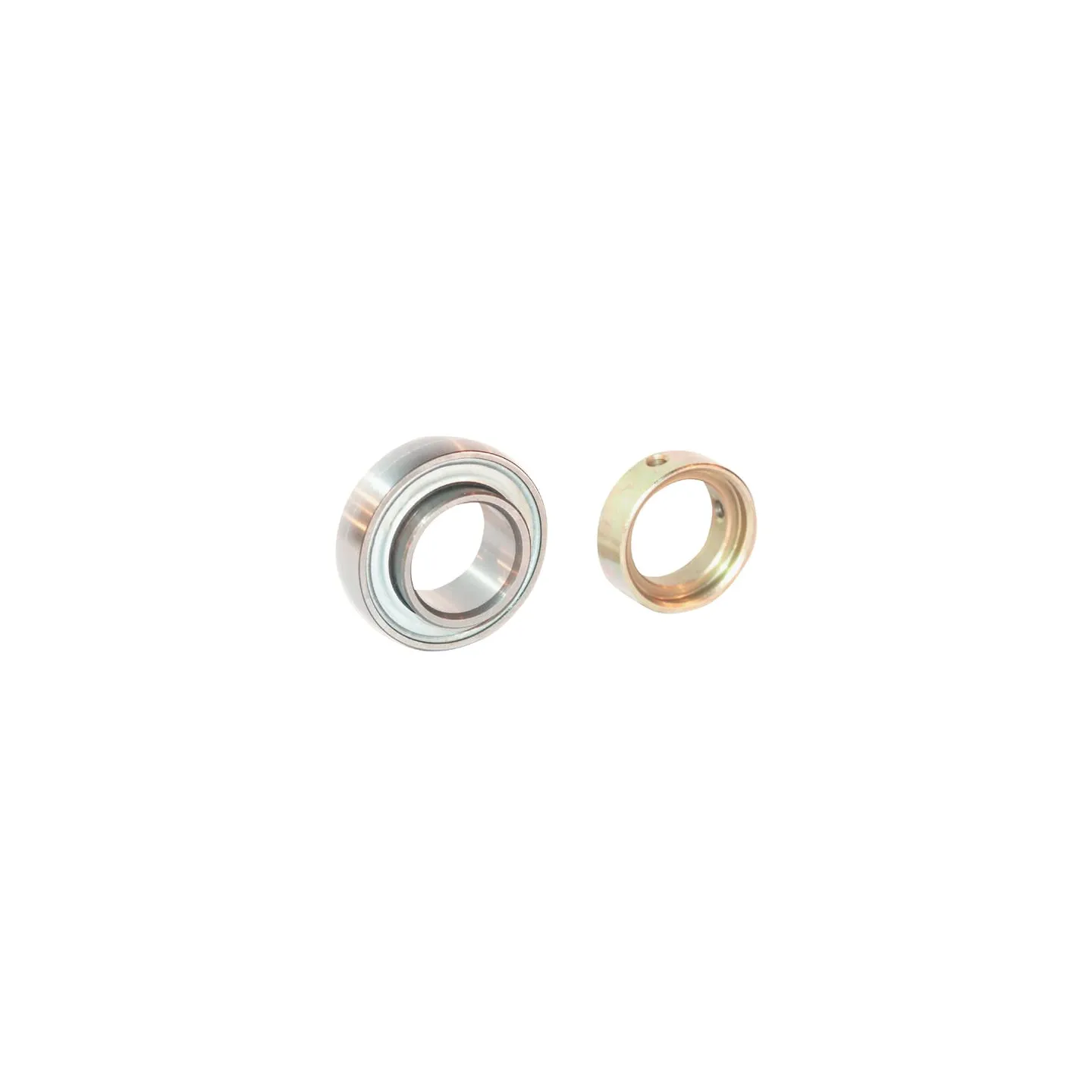

Ball bearing inserts INA/FAG, series RALE..NPPB
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Convex outer ring without lubricating holes
  • P seal
  • Polyamide housing
dInside diameter
25 mm
DOutside diameter
47 mm
Consists of
  • Clamp bearing
  • Clamp ring
BOuter ring width
12 mm
CInner ring width
17.5 mm
Locking collar and inner ring width
25.4 mm
Locking collar outside diameter
36 mm
FOutside diameter of inner ring
30 mm
Basic radial load static
5900 N
Basic radial load dynamic
10700 N
Wrench/Spanner size
2.5 mm
Ball centre to end distance
6 mm
Original number equivalent
RALE25-NPP-B
Weight
0.12 kg
  • Brand
    INA/FAG
  • Reference
    RALE25NPPB
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802782059
