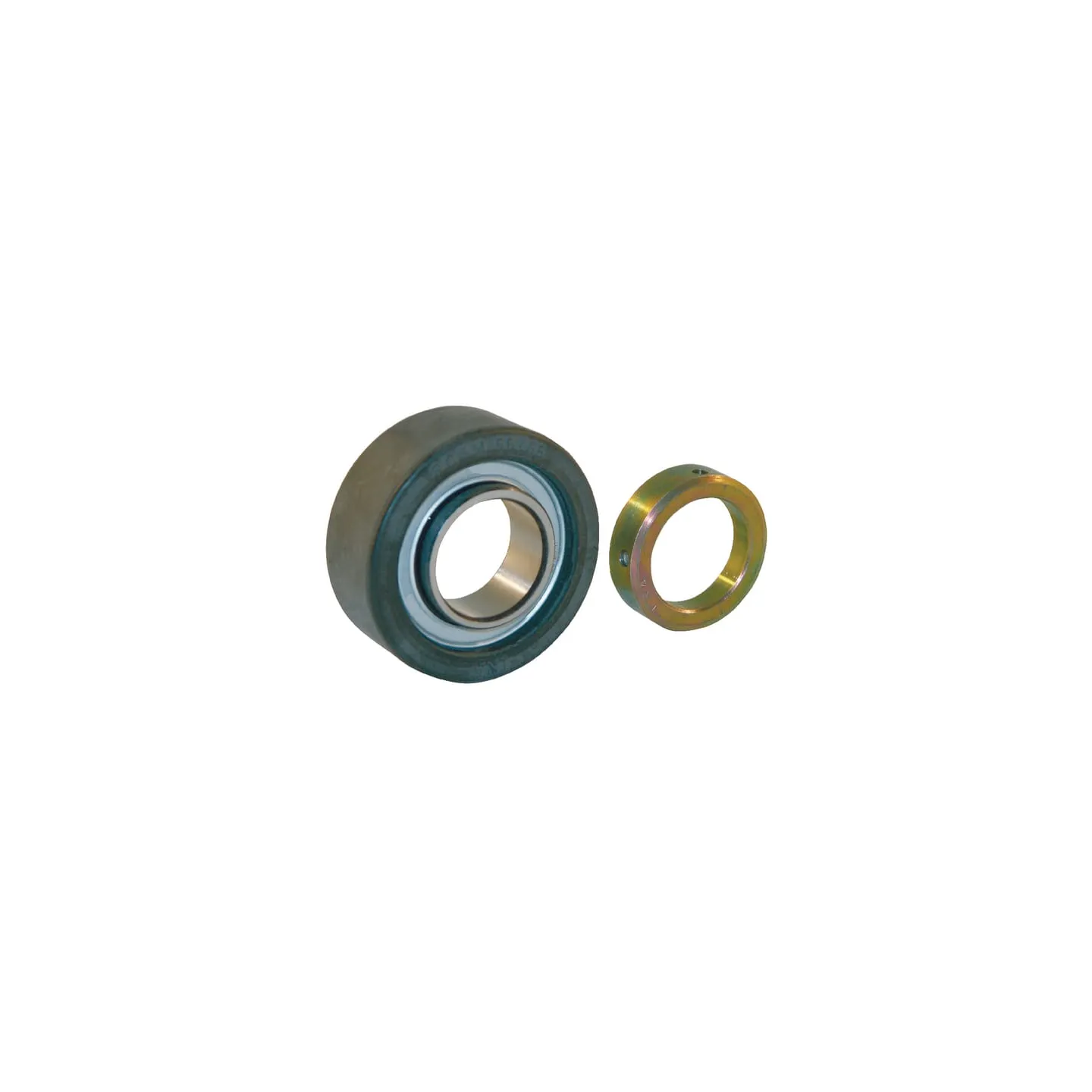

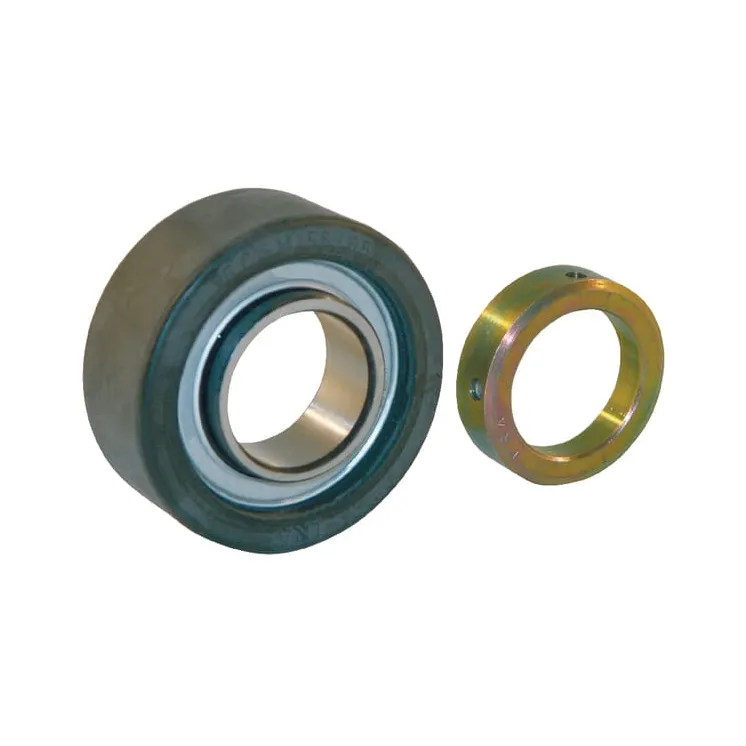

Bearing insert 25x65.1x25.4mm RCSMB2565FA106 INA/FAG
search
  • Bearing insert 25x65.1x25.4mm RCSMB2565FA106 INA/FAG

Bearing insert 25x65.1x25.4mm RCSMB2565FA106

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€45.21
Tax included
On Request
Bearing insert 25x65.1x25.4mm RCSMB2565FA106 INA/FAG
ON REQUEST

65223

Part number
RCSMB2565FA106
EAN4012802801408
Unit
Each
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • One-sided extended inner ring with clamp ring
  • Flat rubber outer ring
  • P seal
  • Polyamide housing
  • Rubber hardness 70° Shore A
dInside diameter
25 mm
DOutside diameter
65.1 mm
Consists of
  • Clamp bearing
  • Clamp ring
Outer ring width
25.4 mm
BInner ring width
31 mm
Locking collar and inner ring width
31 mm
Locking collar outside diameter
37.5 mm
Basic radial load static
7800 N
Basic radial load dynamic
14900 N
Ball centre to inner ring end distance
23.5 mm
Ball centre to outer ring end distance
12.7 mm
Original number equivalent
RCSMB25/65-FA106
Weight
0.23 kg
  • Brand
    INA/FAG
  • Reference
    RCSMB2565FA106
  • Condition
    New
  • EAN
    4012802801408
