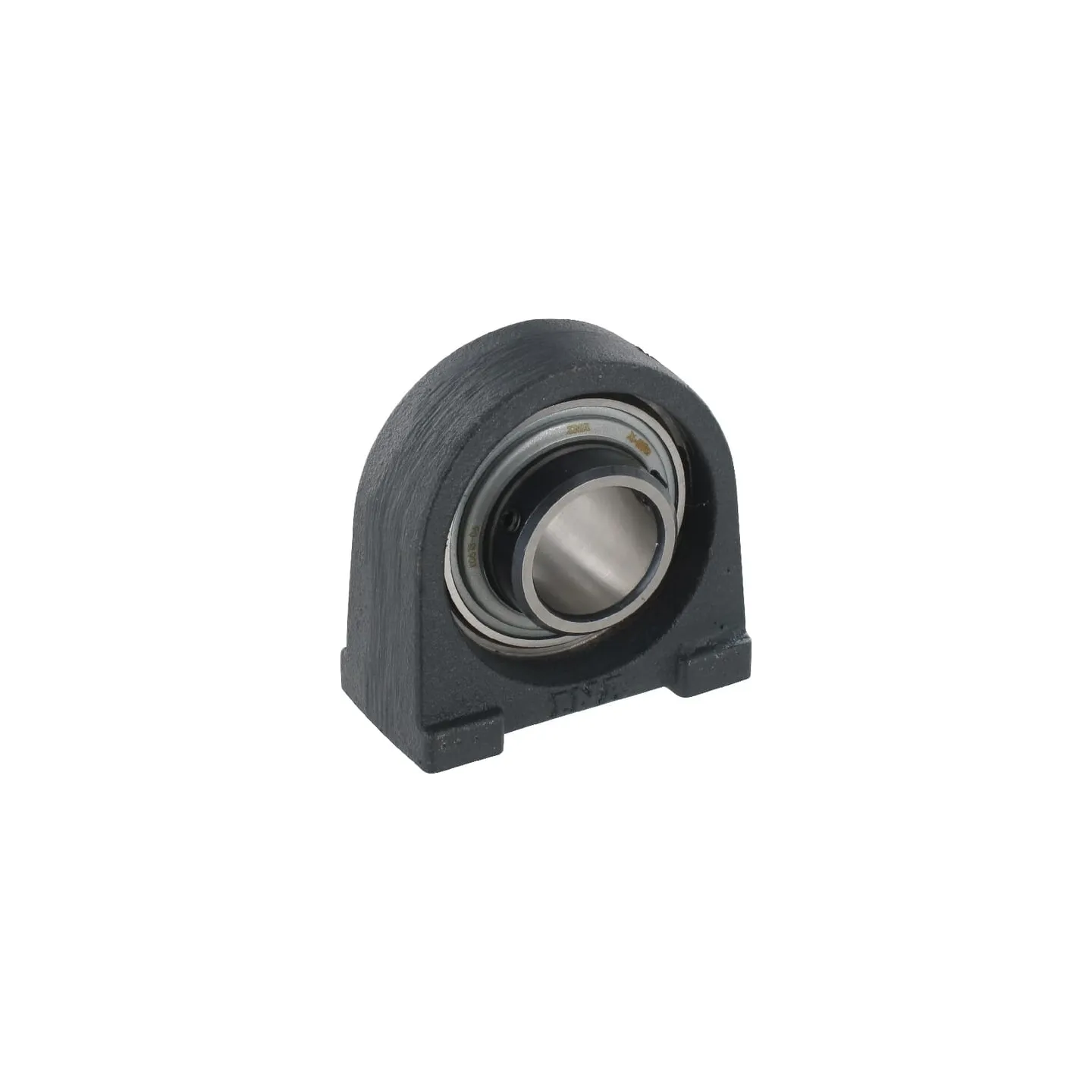

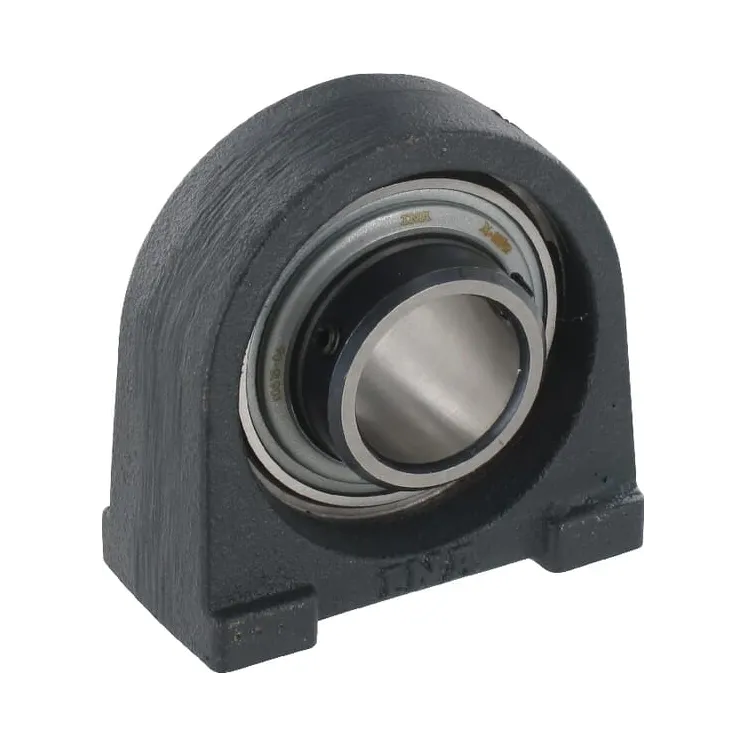

RSHEY pedestal bearing housing RSHEY25N INA/FAG
search
  • RSHEY pedestal bearing housing RSHEY25N INA/FAG

RSHEY pedestal bearing housing RSHEY25N

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€48.01
Tax included
4-5 Working days
RSHEY pedestal bearing housing RSHEY25N INA/FAG
IN WAREHOUSE

65230

Part number
RSHEY25N
EAN4012802797152
Unit
Each
Details
Short design
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
Low space requirement
Housing type
Pillow block - short
dBearing inside diameter
25 mm
Consists of
  • Bearing block
  • Clamp ring
Total length
70 mm
AHousing width
36 mm
HTotal height
70 mm
BBearing inner ring width
34.1 mm
Flange thickness
24 mm
HShaft vertical distance
70 mm
OBearing balls distance to mounting surface
19.8 mm
Mounting holes distance
50.8 mm
Grease nipple thread diameter
M6
Mounting thread diameter
M10
Weight
0.54 kg
Original number equivalent
RSHEY25-N
  • Brand
    INA/FAG
  • Reference
    RSHEY25N
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802797152
