Housing unit TASE TASE30 INA/FAG
search
  • Housing unit TASE TASE30 INA/FAG

Housing unit TASE TASE30

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€75.48
Tax included
On Request

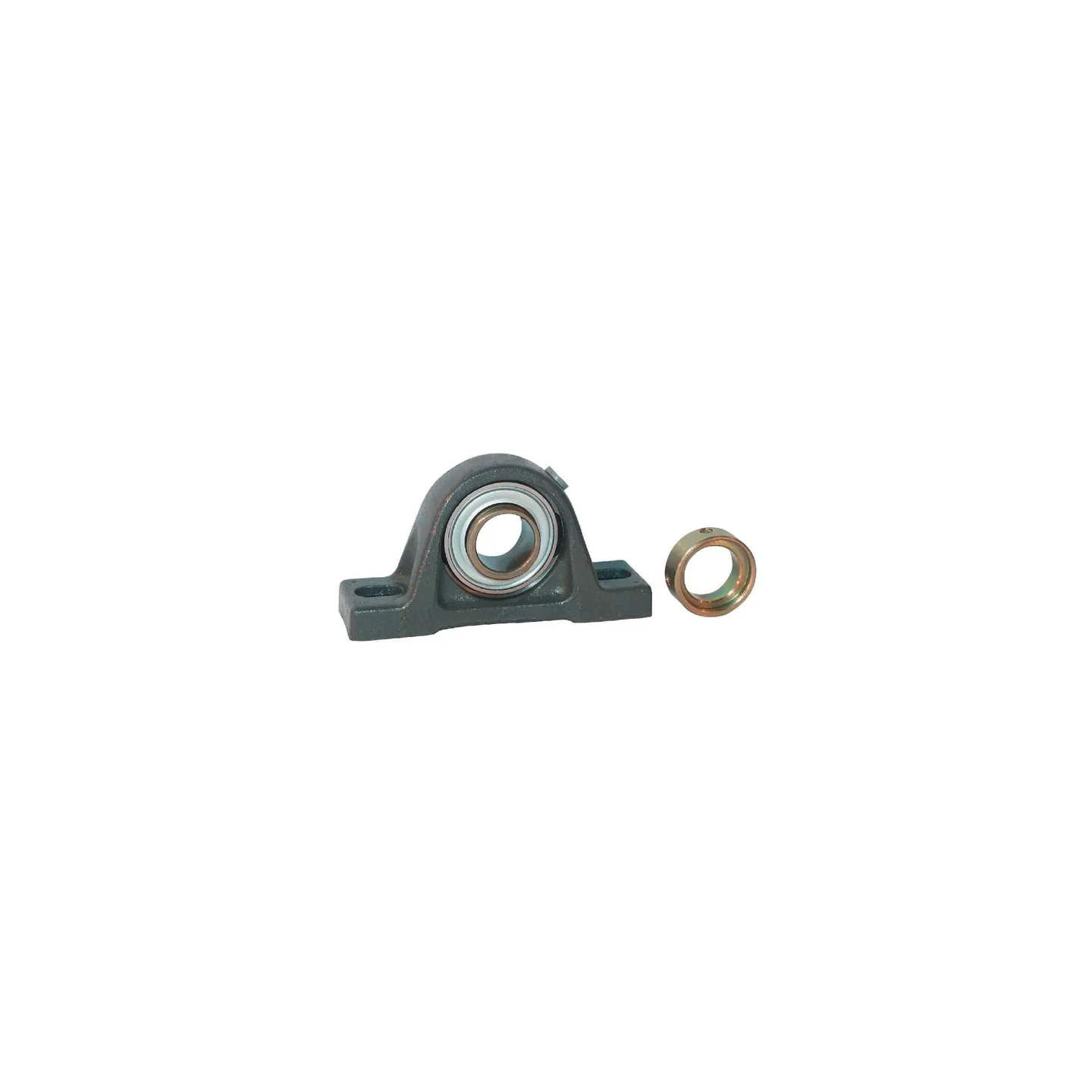

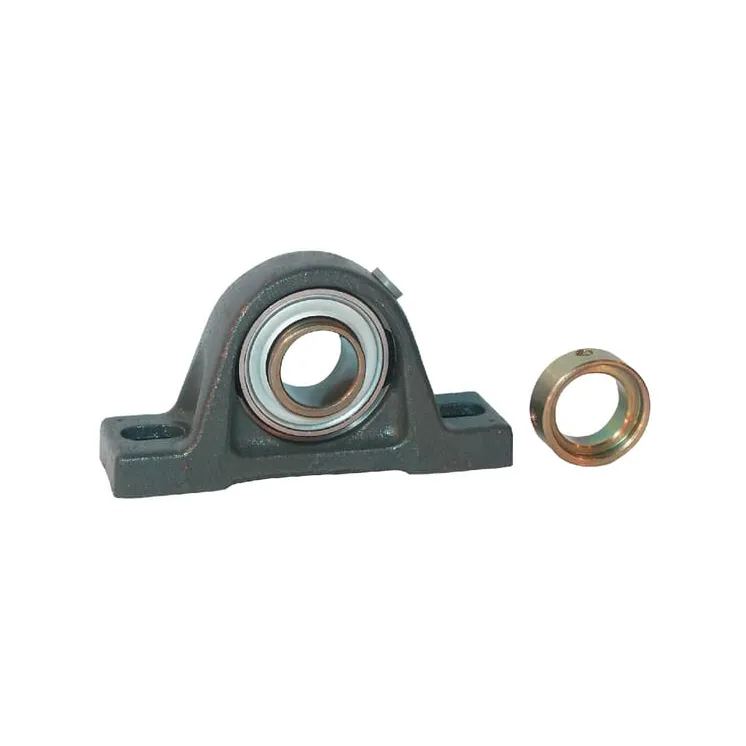

Housing unit TASE TASE30 INA/FAG
ON REQUEST

65318

Part number
TASE30
EAN4054372499234
Unit
Each
Details
Triple seal on two sides
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
Very good protection against contamination
Housing type
Pillow block
dBearing inside diameter
30 mm
Consists of
  • • Bearing block
  • Clamp ring
WTotal length
158 mm
BHousing width
40 mm
HTotal height
82 mm
LBearing inner ring width
48.4 mm
CFlange thickness
10 mm
Locking ring outside diameter
44 mm
AShaft vertical distance
42.9 mm
OBearing balls distance to mounting surface
30.1 mm
Mounting holes distance
118 mm
KMounting holes diameter
12.6 mm
Grease nipple thread diameter
M6
Weight
1.2 kg
Original number equivalent
TASE30-N
  • Brand
    INA/FAG
  • Reference
    TASE30
  • Condition
    New
  • EAN
    4054372499234
