Housing unit TME TME35N

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€104.47
Tax included
4-5 Working days
Housing unit TME TME35N INA/FAG
IN WAREHOUSE

65328

Part number
TME35N
EAN4012802803037
Unit
Each
Long description

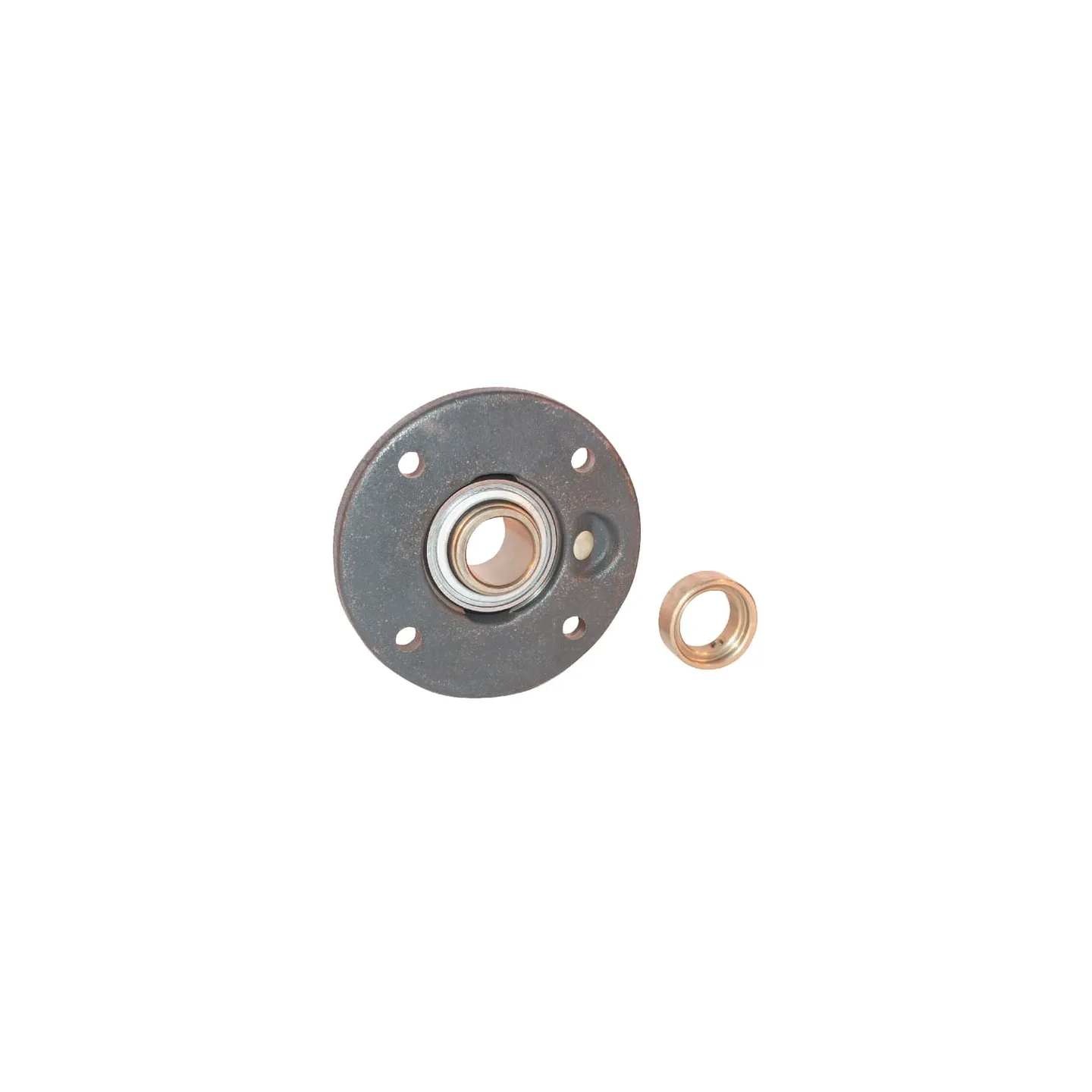

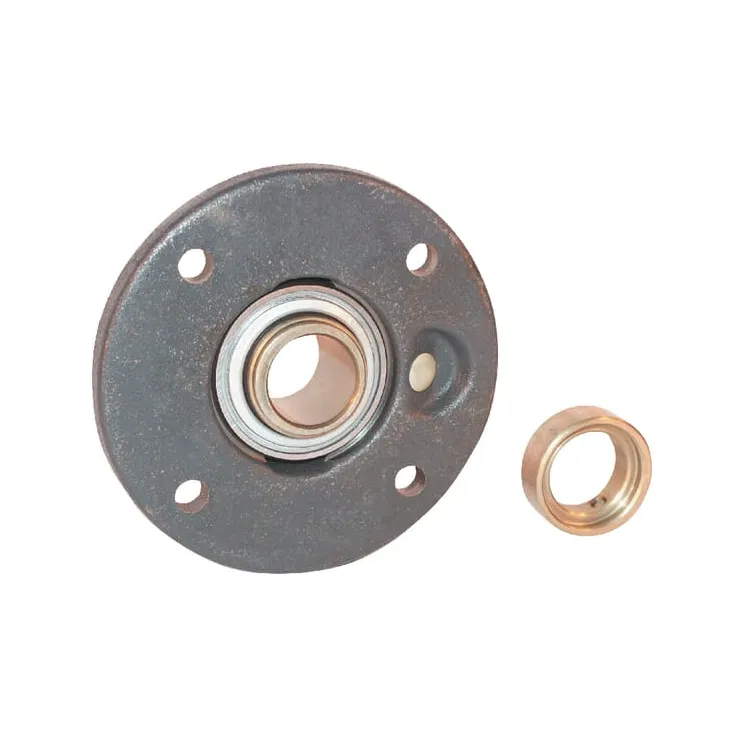

Ball bearing units INA/FAG, series TME
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Round flange
dBearing inside diameter
35 mm
Consists of
  • Bearing block
  • Clamp ring
Housing width
135 mm
Total height
31.3 mm
Total width
37.7 mm
THousing height
20.5 mm
LBearing inner ring width
51.3 mm
CFlange thickness
10 mm
Locking ring outside diameter
51 mm
KMounting holes diameter
11.5 mm
Grease nipple thread diameter
M6
ZFitting edge diameter
90 mm
Weight
1.33 kg
Bearing material
Steel
Basic radial load static
15300 N
Basic radial load dynamic
25500 N
Original number equivalent
TME35-N
  • Brand
    INA/FAG
  • Reference
    TME35N
  • In stock
    4 Items
  • Condition
    New
  • EAN
    4012802803037
