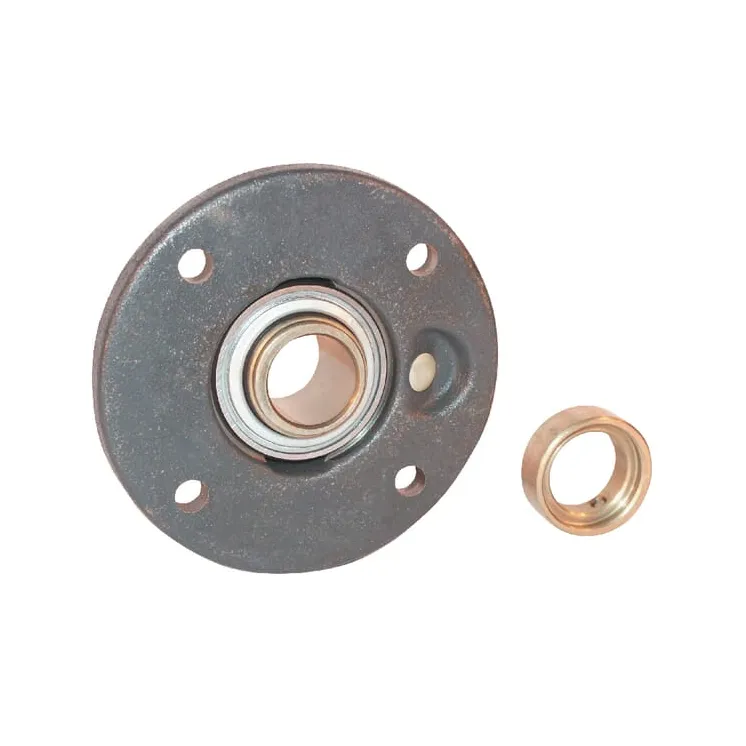

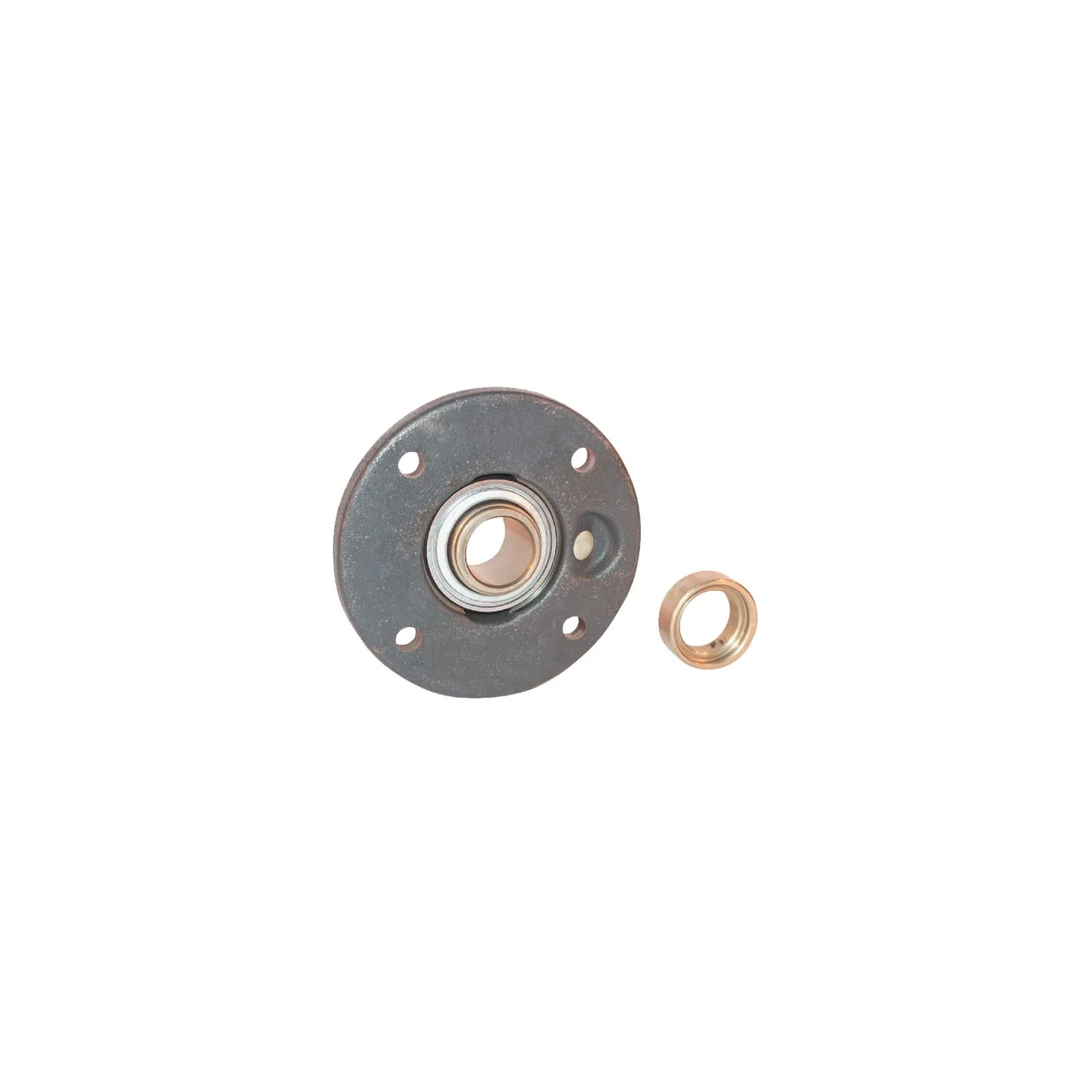

Housing unit TME TME50 INA/FAG
ON REQUEST

65329

Part number
TME50
EAN4012802798678
Unit
Each
Long description
Ball bearing units INA/FAG, series TME
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Round flange
dBearing inside diameter
50 mm
Consists of
  • Bearing block
  • Clamp ring
Housing width
165 mm
Total height
37.1 mm
Total width
62.8 mm
THousing height
25 mm
LBearing inner ring width
62.8 mm
CFlange thickness
13 mm
Locking ring outside diameter
69 mm
KMounting holes diameter
14 mm
Grease nipple thread diameter
M6
ZFitting edge diameter
110 mm
Weight
2.32 kg
Bearing material
Steel
Basic radial load static
23200 N
Basic radial load dynamic
35000 N
Original number equivalent
TME50-N
  • Brand
    INA/FAG
  • Reference
    TME50
  • Condition
    New
  • EAN
    4012802798678
