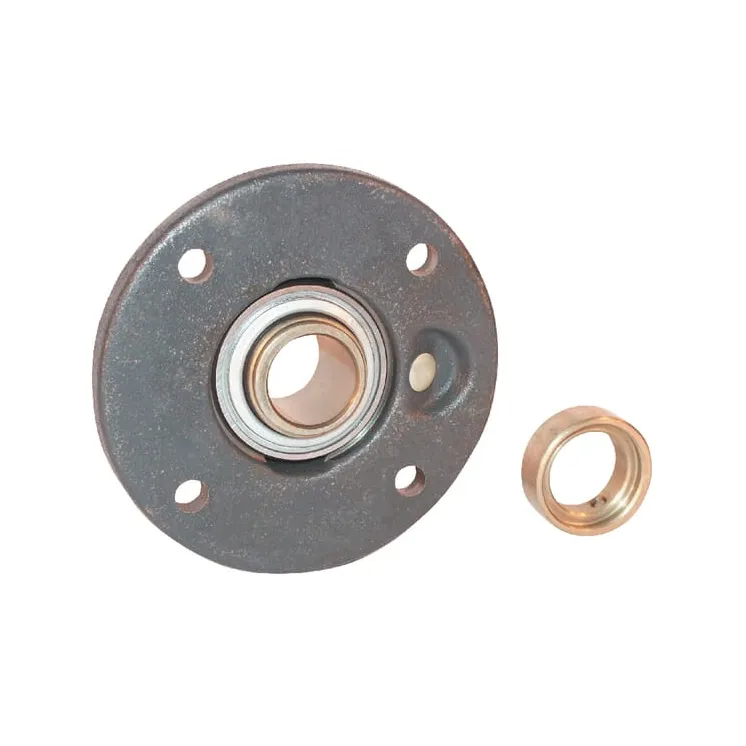

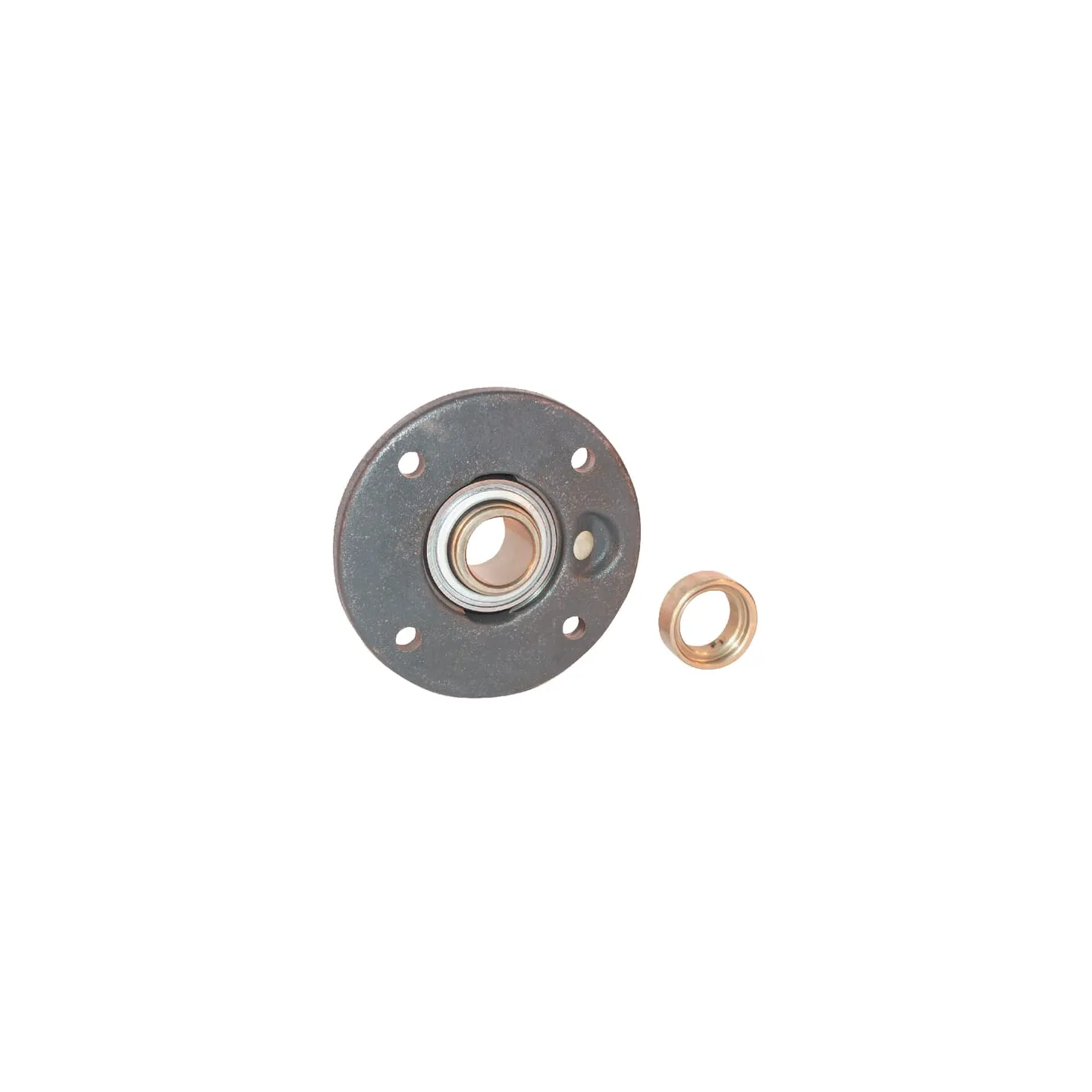

Housing unit TME TME45 INA/FAG
search
  • Housing unit TME TME45 INA/FAG

Housing unit TME TME45

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€177.43
Tax included
On Request
Housing unit TME TME45 INA/FAG
ON REQUEST

65330

Part number
TME45
EAN4012802804331
Unit
Each
Long description
Ball bearing units INA/FAG, series TME
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Round flange
dBearing inside diameter
45 mm
Consists of
  • Bearing block
  • Clamp ring
Housing width
155 mm
Total height
32.9 mm
Total width
56.5 mm
THousing height
25 mm
LBearing inner ring width
56.5 mm
CFlange thickness
12 mm
Locking ring outside diameter
63 mm
KMounting holes diameter
14 mm
Grease nipple thread diameter
M6
ZFitting edge diameter
105 mm
Weight
1.98 kg
Bearing material
Steel
Basic radial load static
20400 N
Basic radial load dynamic
32500 N
Original number equivalent
TME45
  • Brand
    INA/FAG
  • Reference
    TME45
  • Condition
    New
  • EAN
    4012802804331
