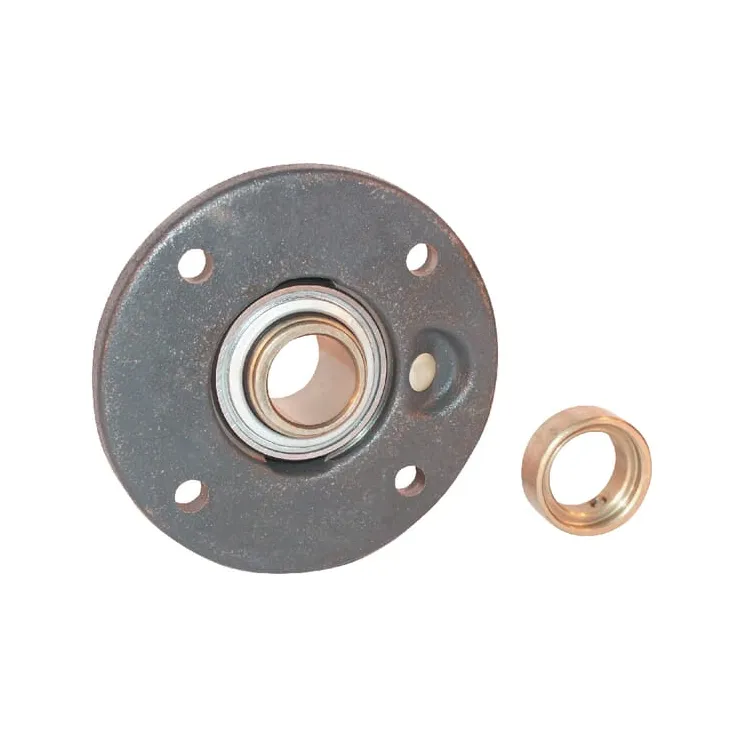

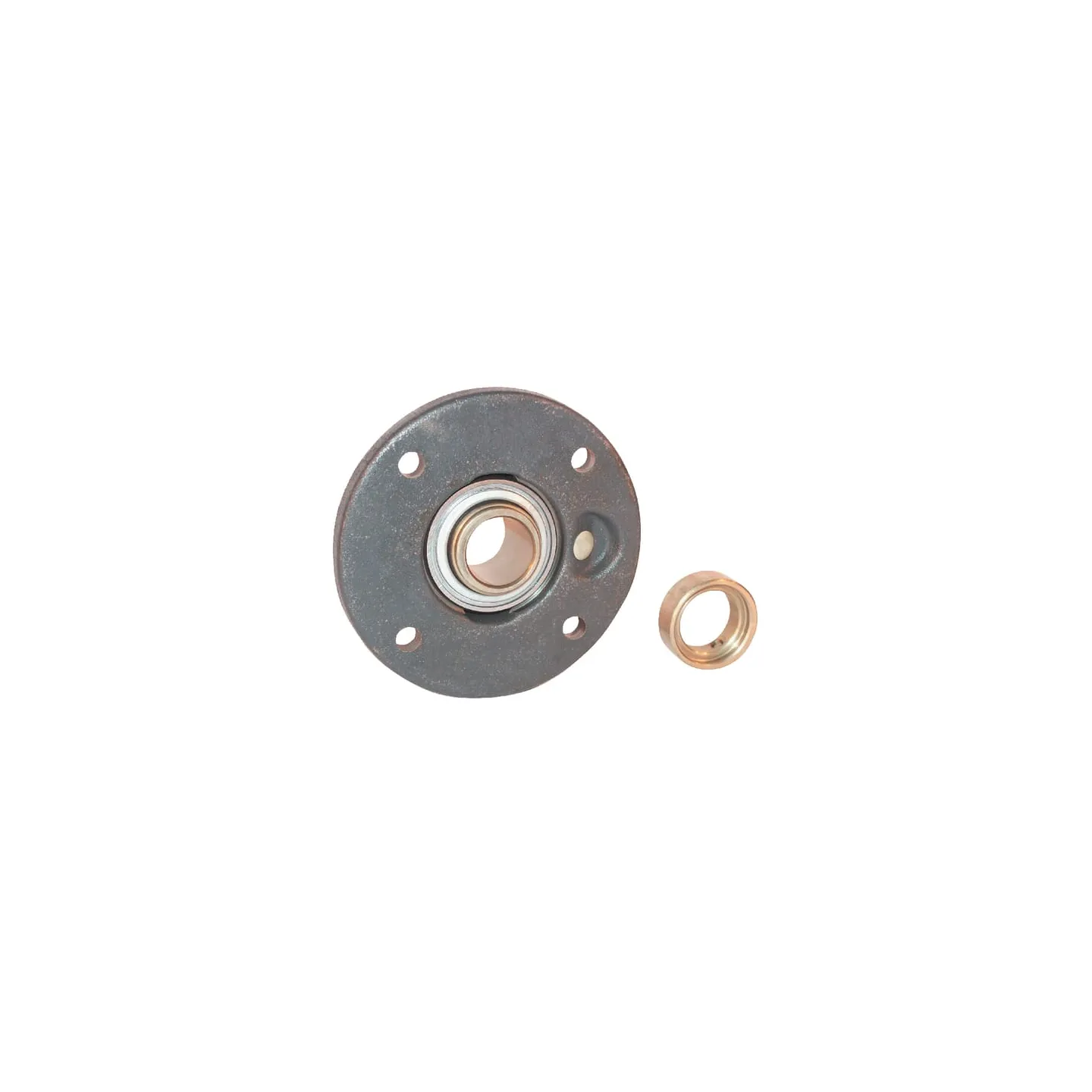

Housing unit TME TME40N INA/FAG
search
  • Housing unit TME TME40N INA/FAG

Housing unit TME TME40N

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€132.54
Tax included
4-5 Working days
Housing unit TME TME40N INA/FAG
IN WAREHOUSE

65332

Part number
TME40N
EAN4012802803945
Unit
Each
Long description
Ball bearing units INA/FAG, series TME
Details
Triple seal on two sides
Application range
  • Mobile mechanical engineering
  • Stationary mechanical engineering
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Subsequent lubrication possible
Benefits
Very good protection against contamination
Housing type
Round flange
dBearing inside diameter
40 mm
Consists of
  • Bearing block
  • Clamp ring
Housing width
145 mm
Total height
33.9 mm
Total width
56.5 mm
THousing height
23 mm
LBearing inner ring width
56.5 mm
CFlange thickness
11.5 mm
Locking ring outside diameter
58 mm
KMounting holes diameter
11.5 mm
Grease nipple thread diameter
M6
ZFitting edge diameter
100 mm
Weight
1.74 kg
Bearing material
Steel
Basic radial load static
19800 N
Basic radial load dynamic
34500 N
Original number equivalent
TME40-N
  • Brand
    INA/FAG
  • Reference
    TME40N
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4012802803945
