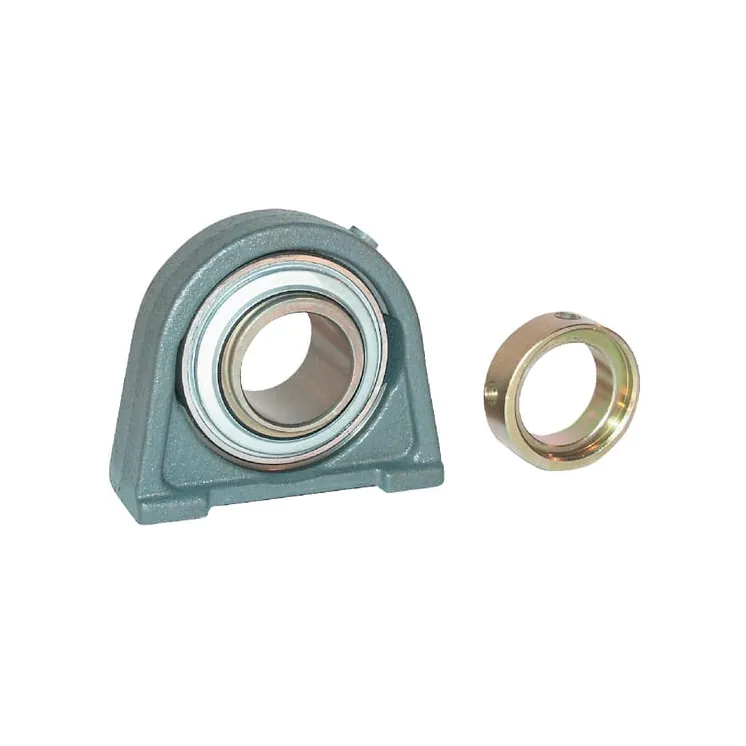

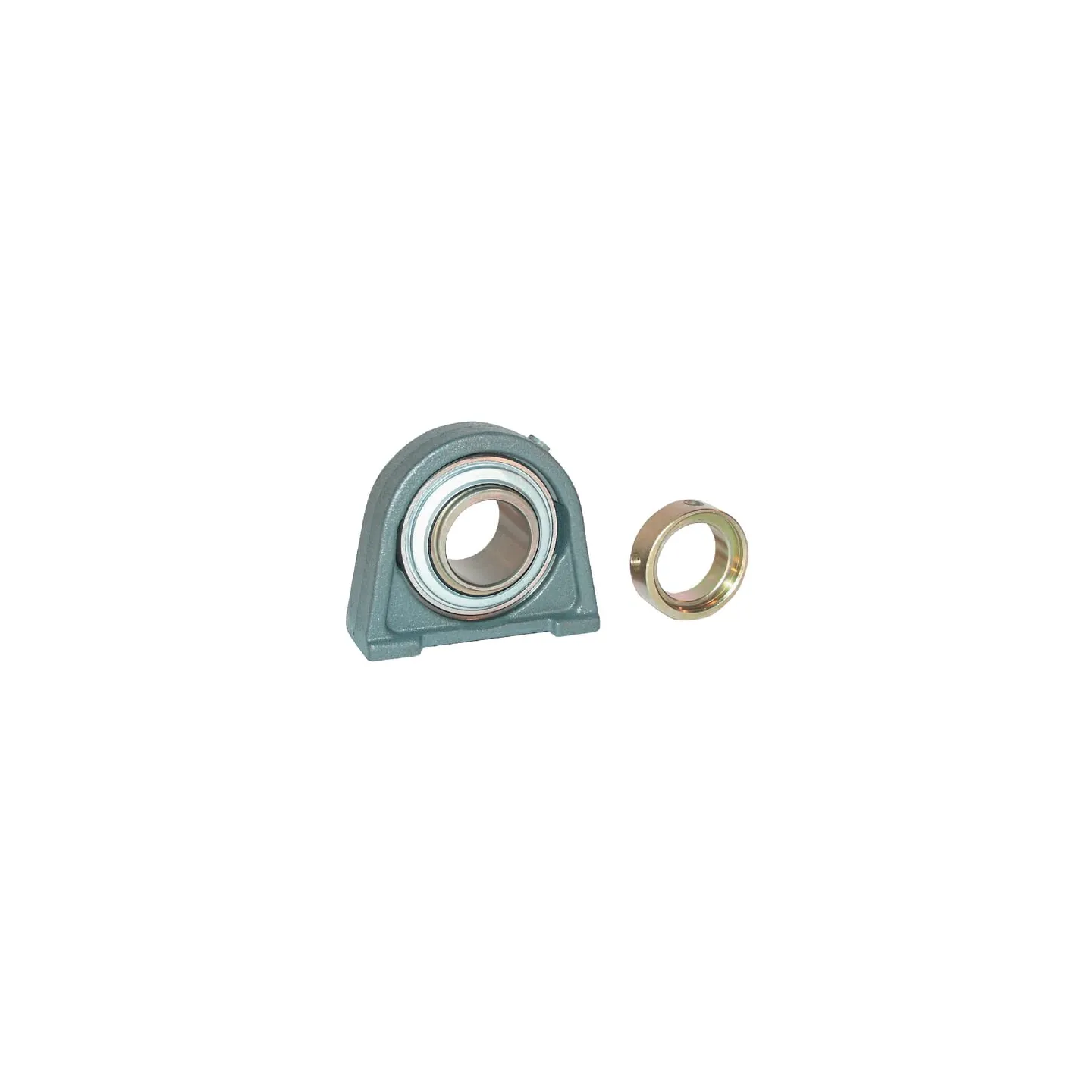

Housing unit TSHE TSHE50

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€126.25
Tax included
On Request
Housing unit TSHE TSHE50 INA/FAG
ON REQUEST

65346

Part number
TSHE50
EAN4012802798456
Unit
Each
Details
  • Triple seal on two sides
  • Short design
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
  • Very good protection against contamination
  • Low space requirement
Housing type
Pillow block - short
Bearing inside diameter
50 mm
Consists of
  • • Bearing block
  • Clamp ring
WTotal length
135 mm
BHousing width
54 mm
HTotal height
115 mm
LBearing inner ring width
62.8 mm
Flange thickness
16 mm
Locking ring outside diameter
69 mm
AShaft vertical distance
57.2 mm
OBearing balls distance to mounting surface
38.1 mm
Mounting holes distance
101.6 mm
Grease nipple thread diameter
M6
Mounting thread diameter
M16
Weight
2.47 kg
Original number equivalent
TSHE50-N
  • Brand
    INA/FAG
  • Reference
    TSHE50
  • Condition
    New
  • EAN
    4012802798456
