| Part number | UCF216 | |
|---|---|---|
| EAN | 4054366895479 | |
| Unit | Each | |

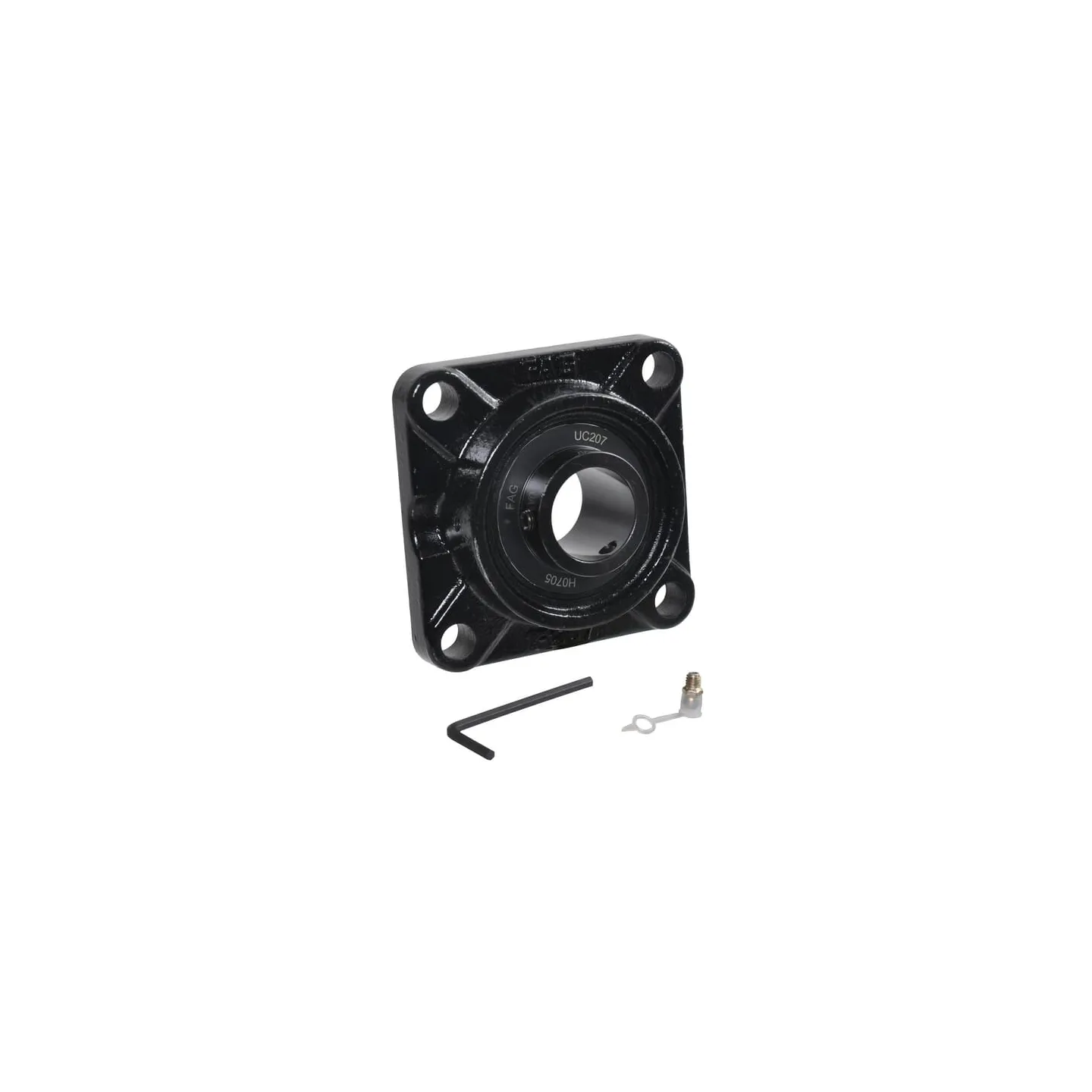

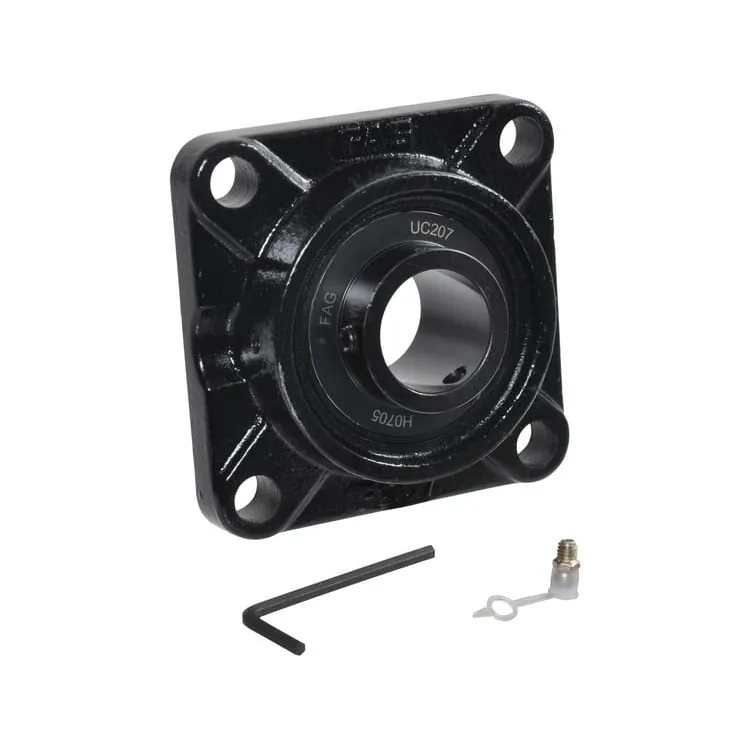

| Long description | These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Properties |
| |
| Includes |
| |
| Housing type | Square flange | |
| dBearing inside diameter | 80 mm | |
| aTotal length | 208 mm | |
| aHousing width | 208 mm | |
| Total height | 83.3 mm | |
| lHousing height | 58 mm | |
| BiBearing inner ring width | 82.6 mm | |
| Bearing balls distance to locking side end | 34 mm | |
| lBearing balls distance to mounting surface | 33.3 mm | |
| eMounting holes distance | 165 mm | |
| Mounting holes diameter | 23 mm | |
| Grease nipple thread diameter | M6 | |
| Basic radial load static | 54000 N | |
| Basic radial load dynamic | 76000 N |
