Housing unit UCF UCF218 INA/FAG
ON REQUEST

65352

Part number
UCF218
EAN4054366901569
Unit
Each
Long description

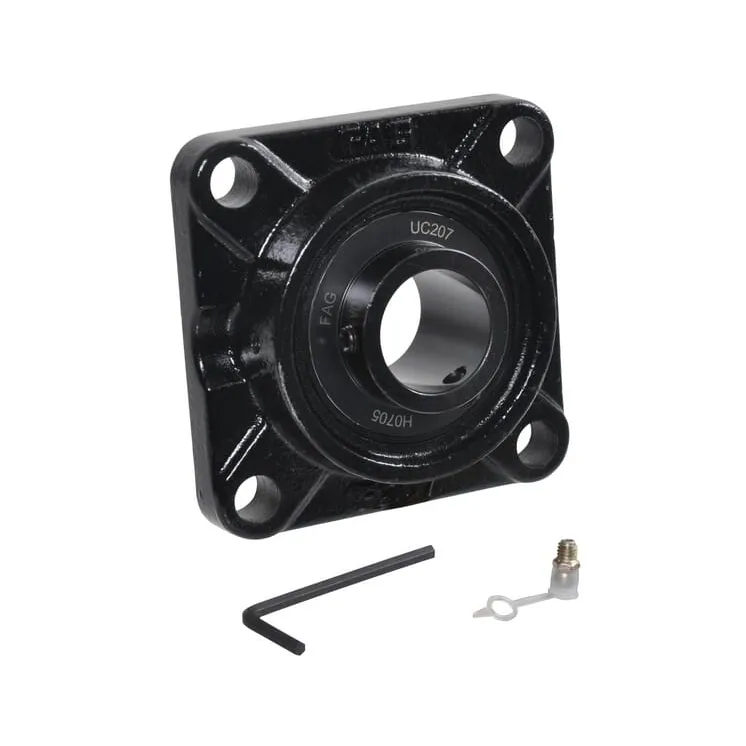

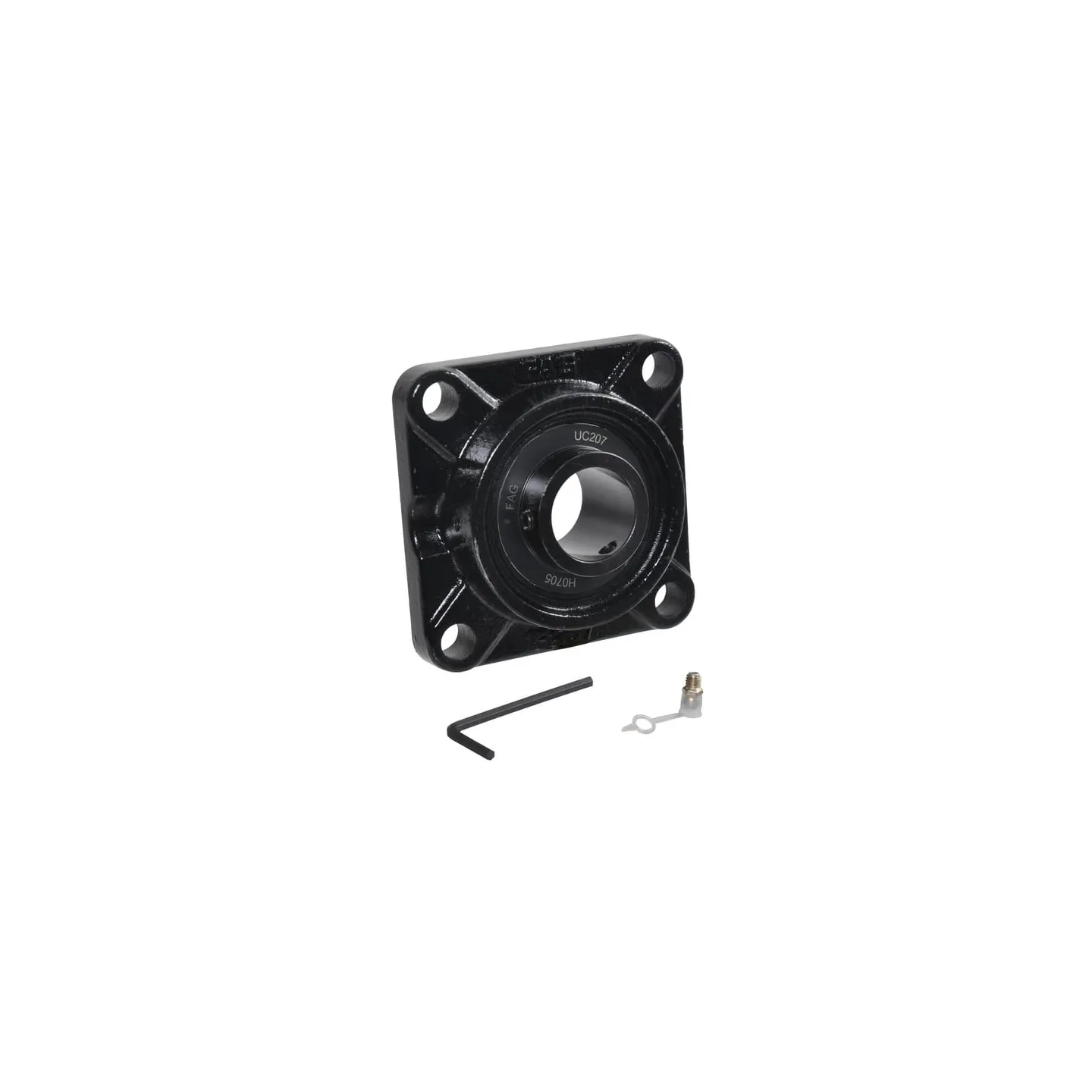

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros
  • Highly suitable for limited installation spaces
  • Assembled, ready for use
  • Pre-lubricated
Product details
  • Inner bearing has extended inner ring on both sides with 2 adjusting screws
  • Regreasable
  • Self-aligning ball bearing
  • Wide inner ring ball bearing
Properties
  • Inner bearing has extended inner ring with 2 adjusting screws on both sides
  • Can be subsequently lubricated
Includes
  • Bearing block
  • Bearing
  • Grease nipple
Housing type
Square flange
dBearing inside diameter
90 mm
aTotal length
235 mm
aHousing width
235 mm
Total height
96.3 mm
lHousing height
68 mm
BiBearing inner ring width
96 mm
Bearing balls distance to locking side end
40 mm
lBearing balls distance to mounting surface
39.7 mm
eMounting holes distance
187 mm
Mounting holes diameter
23 mm
Grease nipple thread diameter
M6
Basic radial load static
72000 N
Basic radial load dynamic
95600 N
  • Brand
    INA/FAG
  • Reference
    UCF218
  • Condition
    New
  • EAN
    4054366901569
