Housing unit TSHE TSHE40 INA/FAG
search
  • Housing unit TSHE TSHE40 INA/FAG

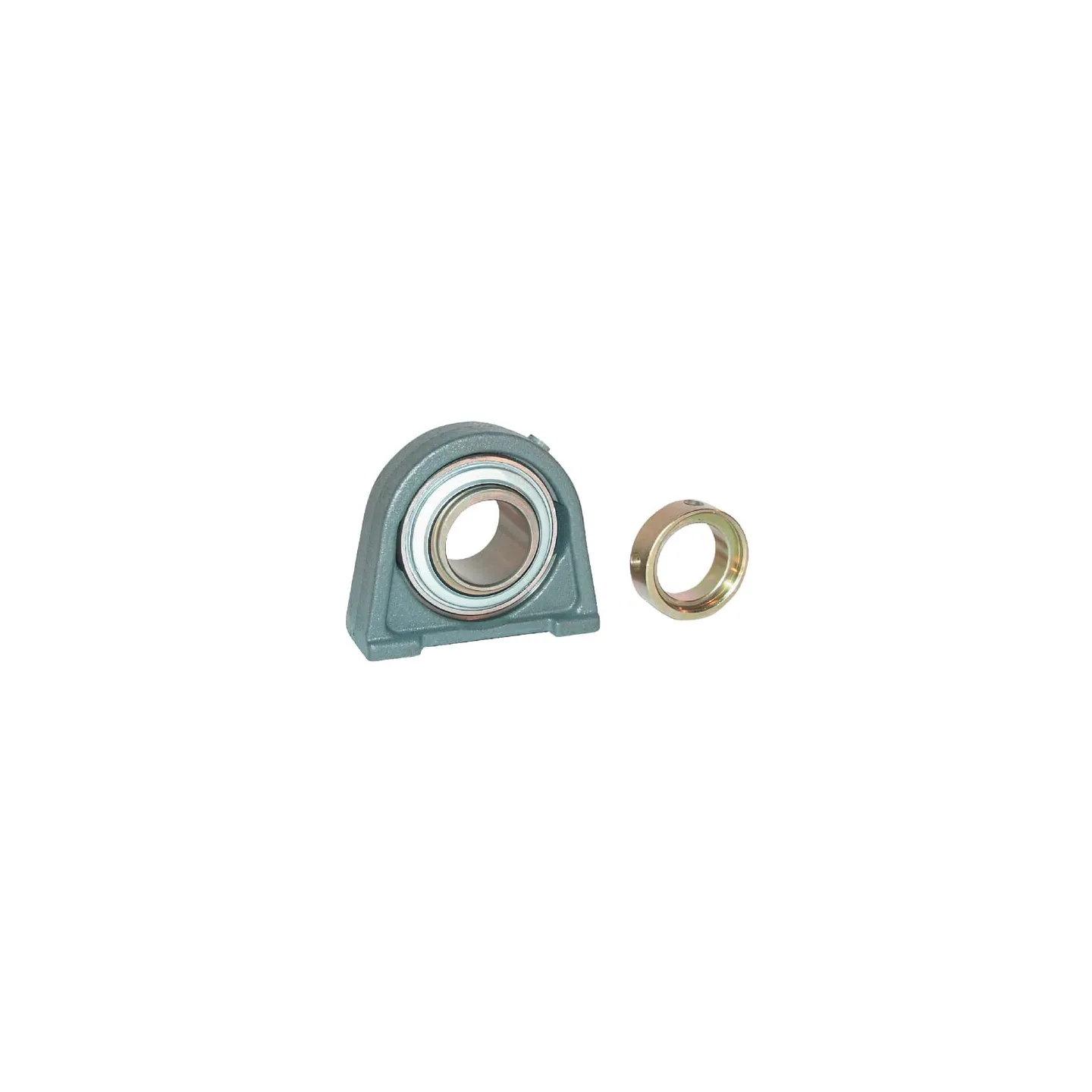

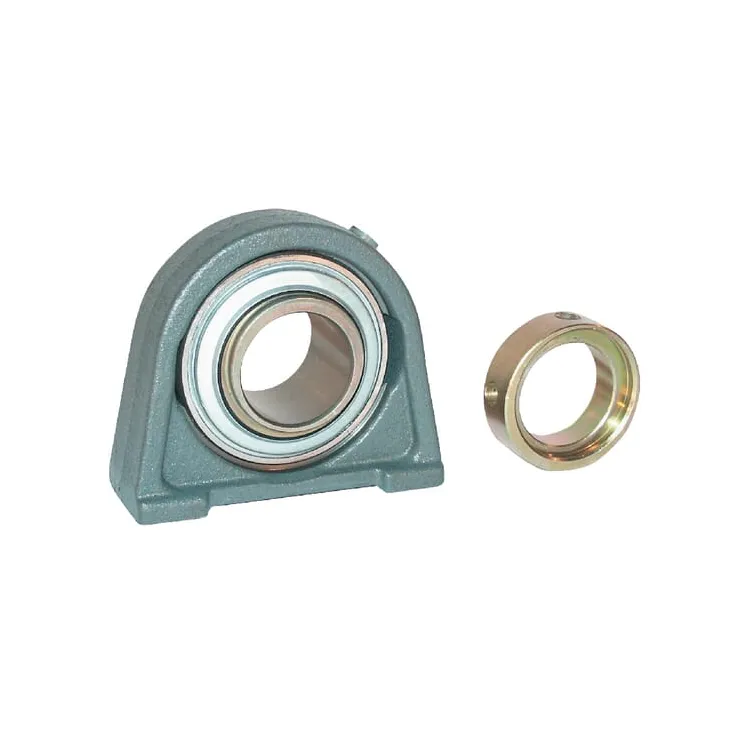

Housing unit TSHE TSHE40

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€109.40
Tax included
4-5 Working days
Housing unit TSHE TSHE40 INA/FAG
IN WAREHOUSE

65358

Part number
TSHE40
EAN4054372554773
Unit
Each
Details
  • Triple seal on two sides
  • Short design
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
  • Very good protection against contamination
  • Low space requirement
Housing type
Pillow block - short
Bearing inside diameter
40 mm
Consists of
  • • Bearing block
  • Clamp ring
WTotal length
116 mm
BHousing width
48 mm
HTotal height
99 mm
LBearing inner ring width
56.5 mm
Flange thickness
10 mm
Locking ring outside diameter
58 mm
AShaft vertical distance
49.2 mm
OBearing balls distance to mounting surface
34.9 mm
Mounting holes distance
88.9 mm
Grease nipple thread diameter
M6
Mounting thread diameter
M12
Weight
1.66 kg
Original number equivalent
TSHE40-N
  • Brand
    INA/FAG
  • Reference
    TSHE40
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4054372554773
