  • Housing unit TSHE TSHE30 INA/FAG

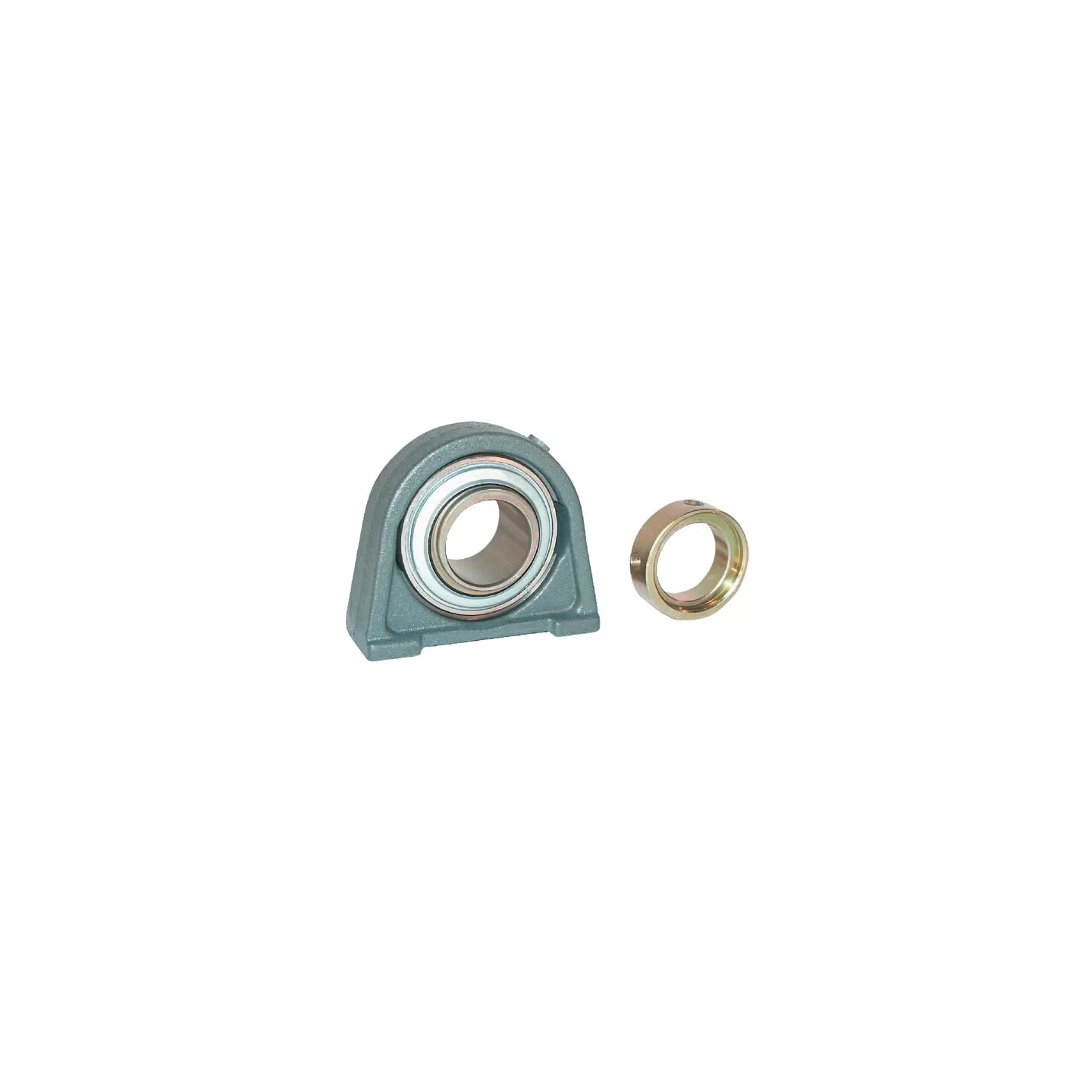

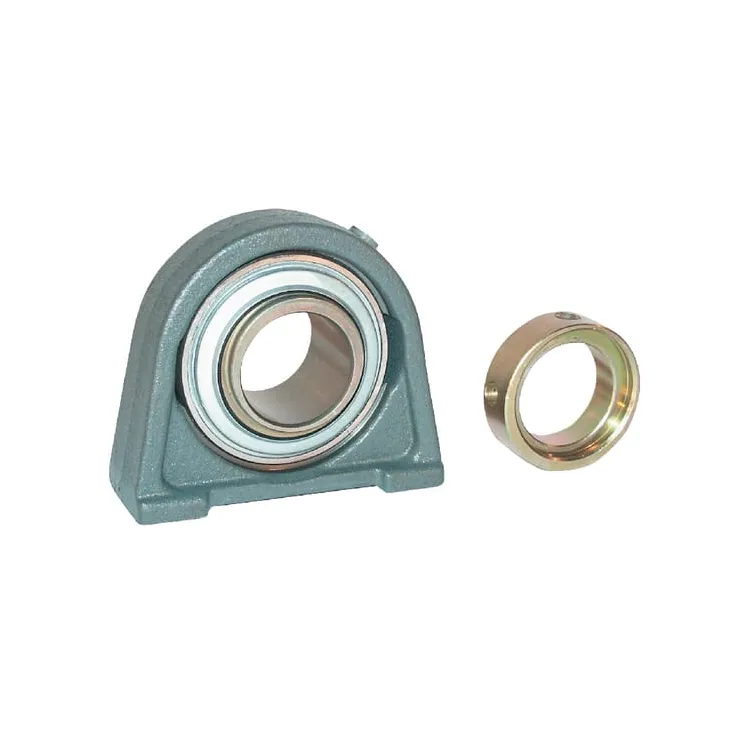

Housing unit TSHE TSHE30

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€83.41
Tax included
4-5 Working days
Housing unit TSHE TSHE30 INA/FAG
IN WAREHOUSE

65360

Part number
TSHE30
EAN4054372499210
Unit
Each
Details
  • Triple seal on two sides
  • Short design
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
  • Very good protection against contamination
  • Low space requirement
Housing type
Pillow block - short
Bearing inside diameter
30 mm
Consists of
  • • Bearing block
  • Clamp ring
WTotal length
98 mm
BHousing width
40 mm
HTotal height
82 mm
LBearing inner ring width
48.5 mm
Flange thickness
9 mm
Locking ring outside diameter
44 mm
AShaft vertical distance
42.9 mm
OBearing balls distance to mounting surface
30.1 mm
Mounting holes distance
76.2 mm
Grease nipple thread diameter
M6
Mounting thread diameter
M10
Weight
0.99 kg
Original number equivalent
TSHE30-N
  • Brand
    INA/FAG
  • Reference
    TSHE30
  • In stock
    5 Items
  • Condition
    New
  • EAN
    4054372499210
