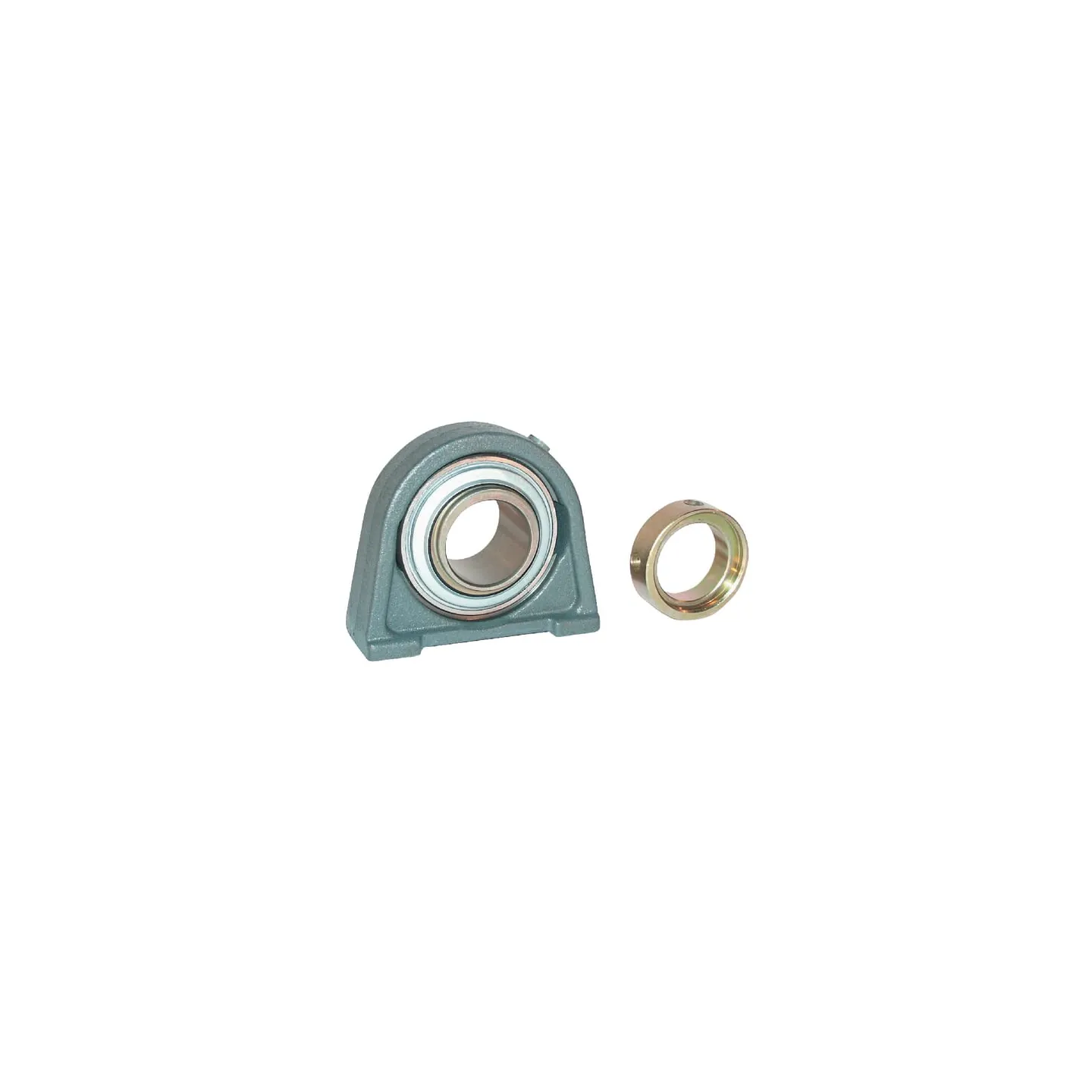

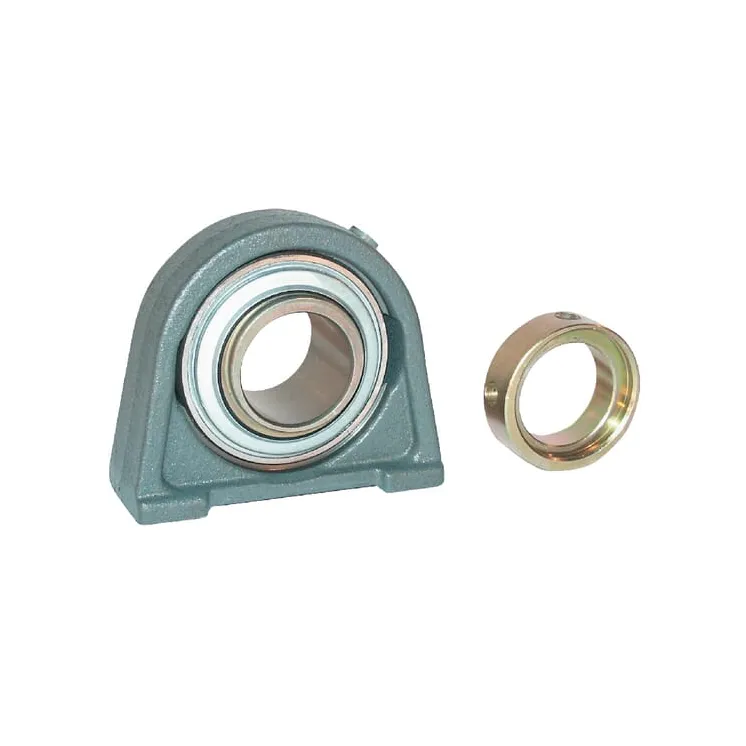

Housing unit TSHE TSHE35 INA/FAG
ON REQUEST

65361

Part number
TSHE35
EAN4054372555169
Unit
Each
Details
  • Triple seal on two sides
  • Short design
Properties
  • Inner bearing has extended inner ring with clamp ring on both sides
  • Can be subsequently lubricated
Benefits
  • Very good protection against contamination
  • Low space requirement
Housing type
Pillow block - short
Bearing inside diameter
35 mm
Consists of
  • • Bearing block
  • Clamp ring
WTotal length
103 mm
BHousing width
45 mm
HTotal height
93 mm
LBearing inner ring width
51.3 mm
Flange thickness
9.5 mm
Locking ring outside diameter
51 mm
AShaft vertical distance
47.6 mm
OBearing balls distance to mounting surface
32.3 mm
Mounting holes distance
82.6 mm
Grease nipple thread diameter
M6
Mounting thread diameter
M10
Weight
1.36 kg
Original number equivalent
TSHE35-N
  • Brand
    INA/FAG
  • Reference
    TSHE35
  • Condition
    New
  • EAN
    4054372555169
