Housing unit UCF UCF209 INA/FAG VLD3730
search
  • Housing unit UCF UCF209 INA/FAG VLD3730

Housing unit UCF UCF209 VLD3730

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€36.32
Tax included
4-5 Working days
Housing unit UCF UCF209 INA/FAG VLD3730
IN WAREHOUSE

65377

Part number
UCF209
EAN4047643247603
Unit
Each
Long description

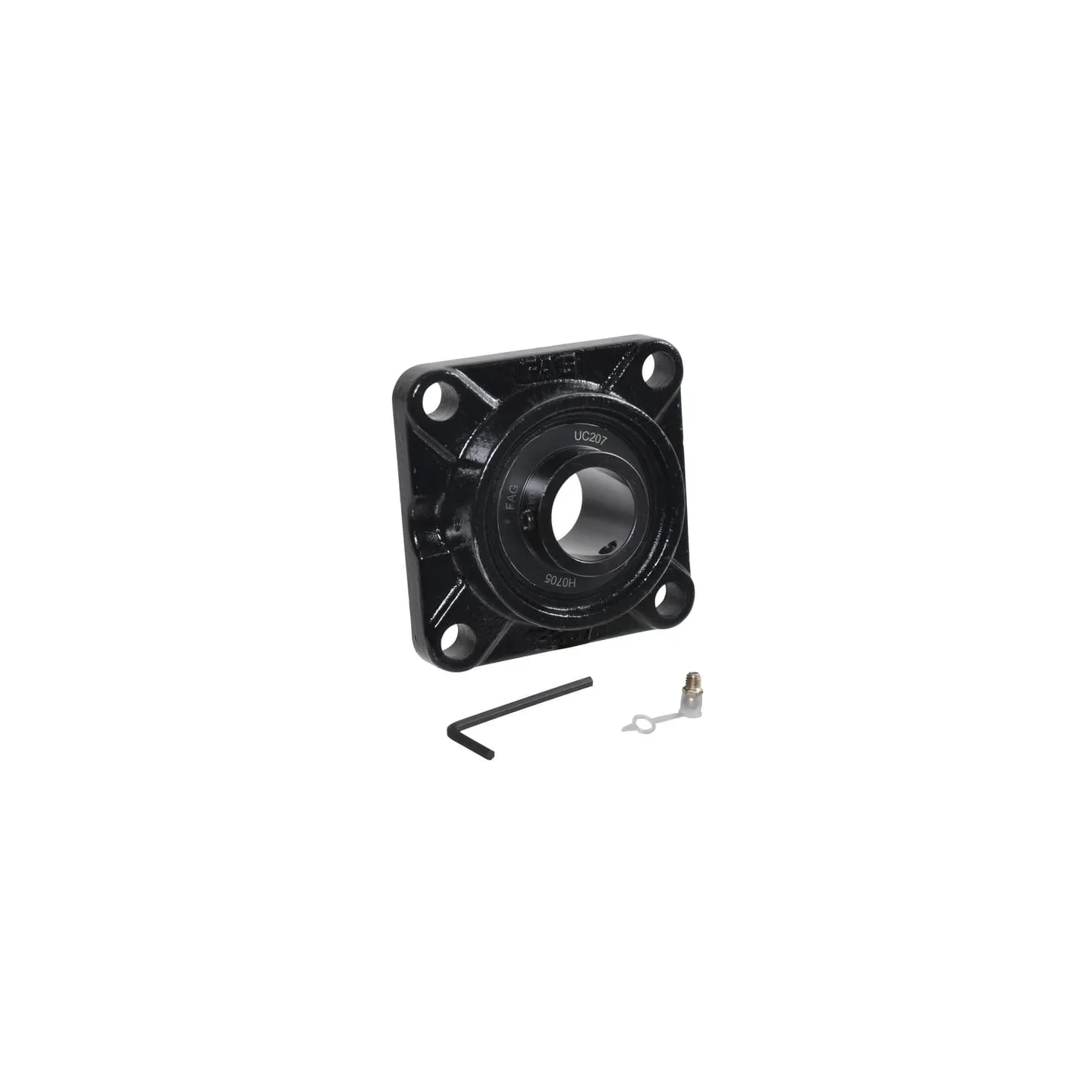

These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros
  • Highly suitable for limited installation spaces
  • Assembled, ready for use
  • Pre-lubricated
Product details
  • Inner bearing has extended inner ring on both sides with 2 adjusting screws
  • Regreasable
  • Self-aligning ball bearing
  • Wide inner ring ball bearing
Properties
  • Inner bearing has extended inner ring with 2 adjusting screws on both sides
  • Can be subsequently lubricated
Includes
  • Bearing block
  • Bearing
  • Grease nipple
Housing type
Square flange
dBearing inside diameter
45 mm
aTotal length
137 mm
aHousing width
137 mm
Total height
52.2 mm
lHousing height
38 mm
BiBearing inner ring width
49.2 mm
Bearing balls distance to locking side end
22 mm
eMounting holes distance
105 mm
Mounting holes diameter
16 mm
Grease nipple thread diameter
M6
Basic radial load static
20400 N
Basic radial load dynamic
32500 N
Original number equivalent
UCF209-J7
  • Brand
    INA/FAG
  • Reference
    UCF209
  • In stock
    5 Items
  • Condition
    New
  • CODE
    VLD3730
  • EAN
    4047643247603
