| Part number | UCF211 | |
|---|---|---|
| EAN | 4047643247566 | |
| Unit | Each | |

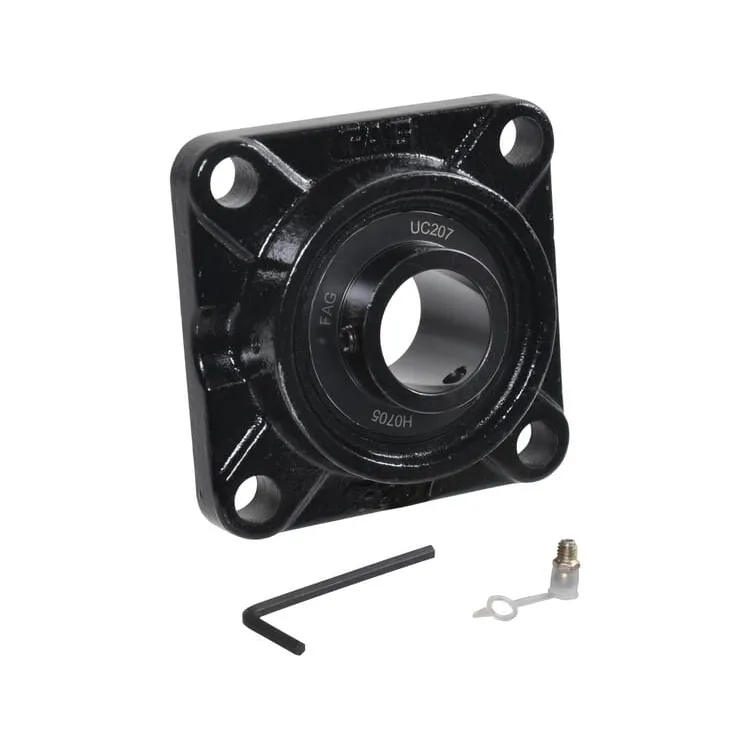

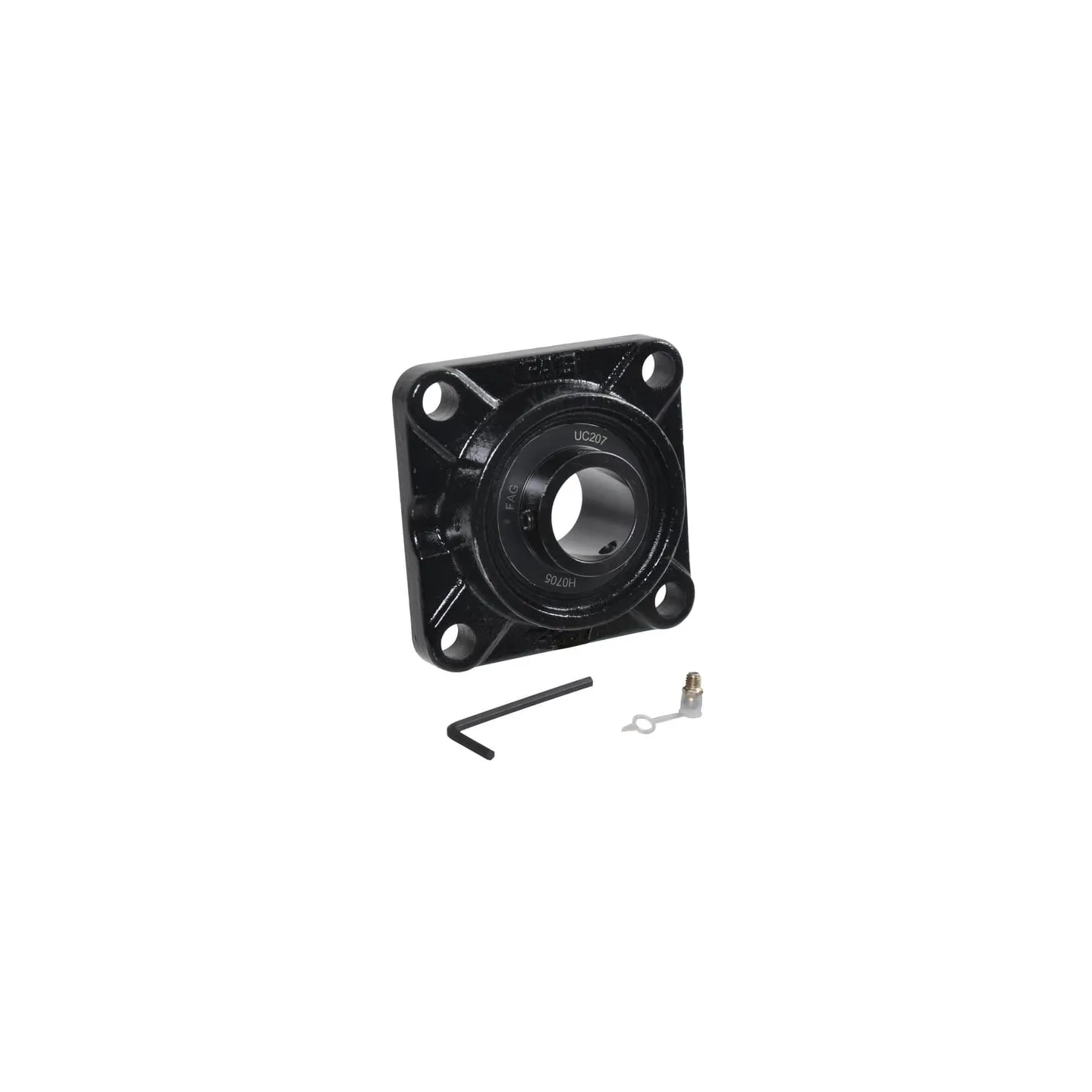

| Long description | These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. | |
| Pros |
| |
| Product details |
| |
| Properties |
| |
| Includes |
| |
| Housing type | Square flange | |
| dBearing inside diameter | 55 mm | |
| aTotal length | 162 mm | |
| aHousing width | 162 mm | |
| Total height | 58.4 mm | |
| lHousing height | 43 mm | |
| BiBearing inner ring width | 55.6 mm | |
| Bearing balls distance to locking side end | 25 mm | |
| lBearing balls distance to mounting surface | 22.2 mm | |
| eMounting holes distance | 130 mm | |
| Mounting holes diameter | 19 mm | |
| Grease nipple thread diameter | M6 | |
| Basic radial load static | 23000 N | |
| Basic radial load dynamic | 35000 N | |
| Original number equivalent | UCF211-J7 |
