Housing unit UCF UCF214 UCF214NB

Name: Housing unit UCF UCF214 UCF214NB
Brand: INA/FAG
SKU: UCF214
Price: 125.4 EUR
Availability: InStock

Payment options

€125.40

Tax included

4-5 Working days

Housing unit UCF UCF214 INA/FAG UCF214NB

IN WAREHOUSE

ID: 65415

Description

Part number	UCF214
EAN	4047643261265
Unit	Each

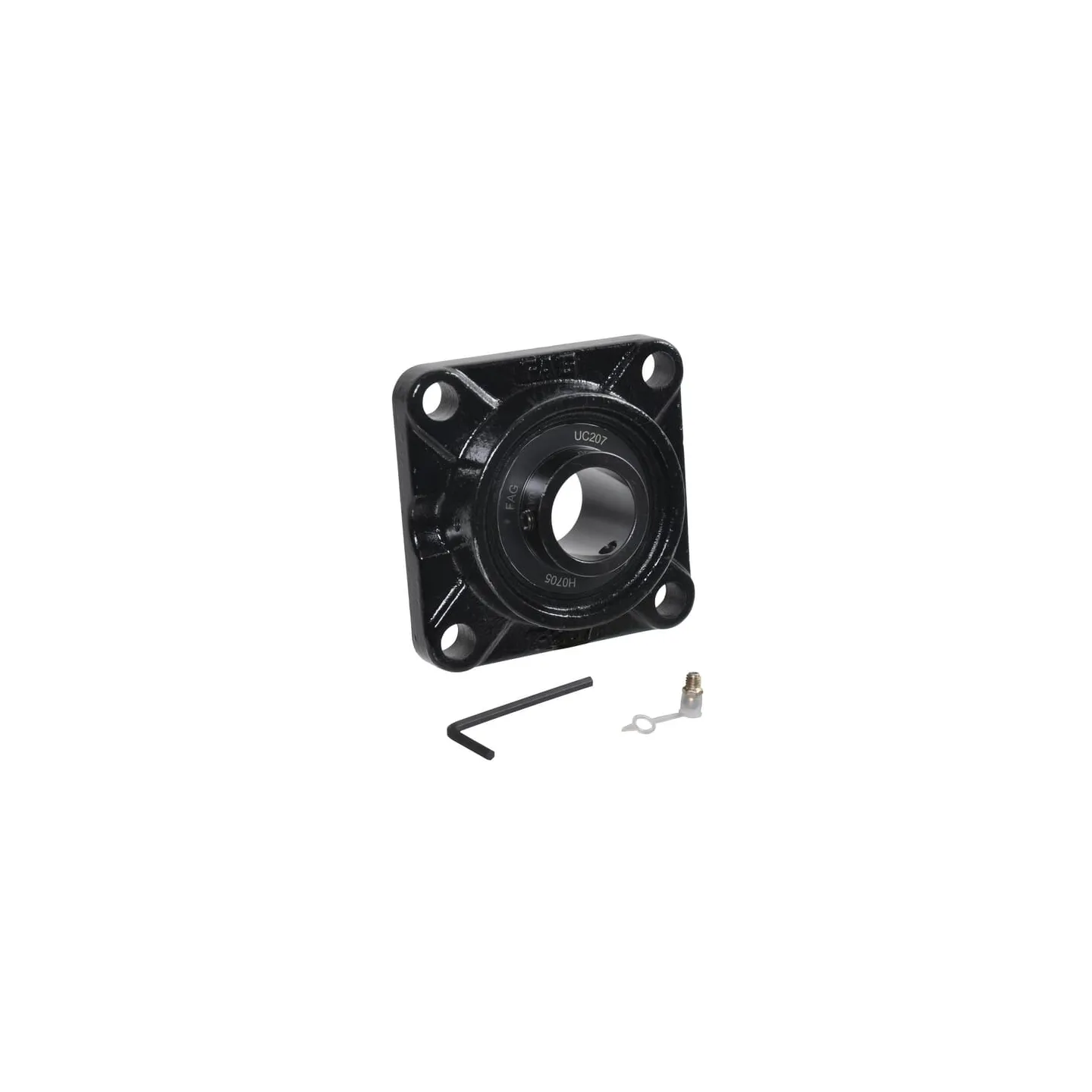

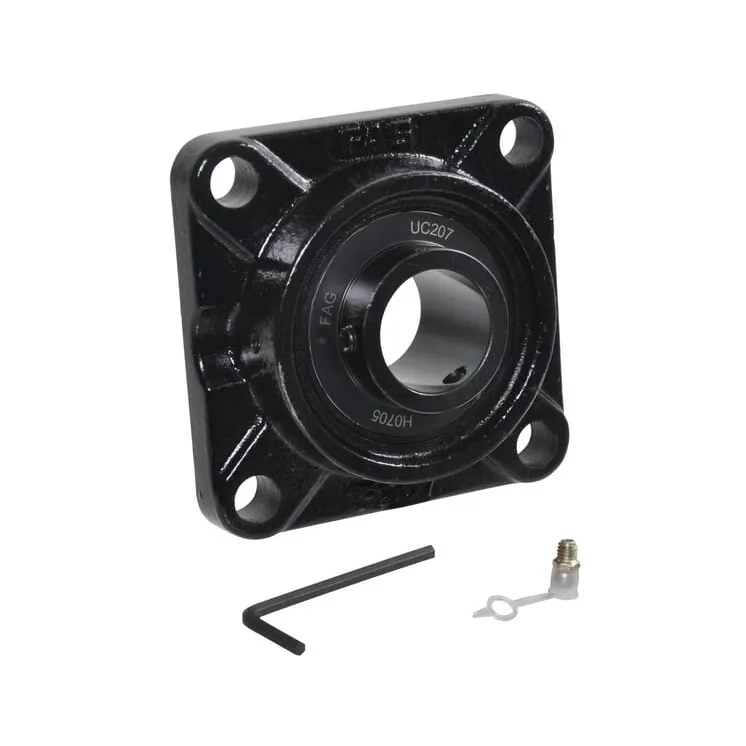

Long description	These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros	Highly suitable for limited installation spaces Assembled, ready for use Pre-lubricated
Product details	Inner bearing has extended inner ring on both sides with 2 adjusting screws Regreasable Self-aligning ball bearing Wide inner ring ball bearing
Properties	Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Includes	Bearing block Bearing Grease nipple
Housing type	Square flange
dBearing inside diameter	70 mm
aTotal length	193 mm
aHousing width	193 mm
Total height	75.4 mm
lHousing height	54 mm
BiBearing inner ring width	74.6 mm
Bearing balls distance to locking side end	31 mm
lBearing balls distance to mounting surface	30.2 mm
eMounting holes distance	152 mm
Mounting holes diameter	19 mm
Grease nipple thread diameter	M6
Basic radial load static	44000 N
Basic radial load dynamic	66000 N
