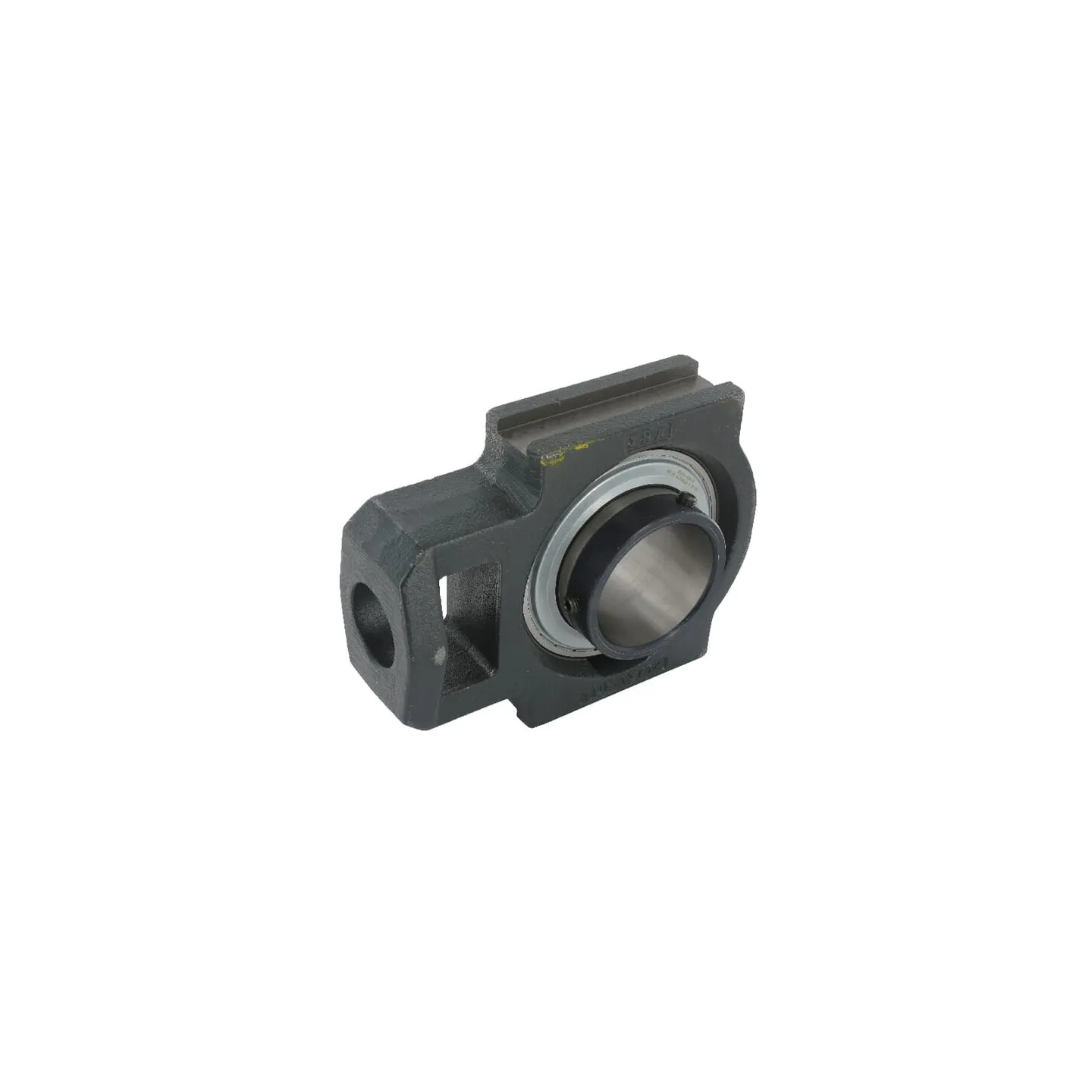

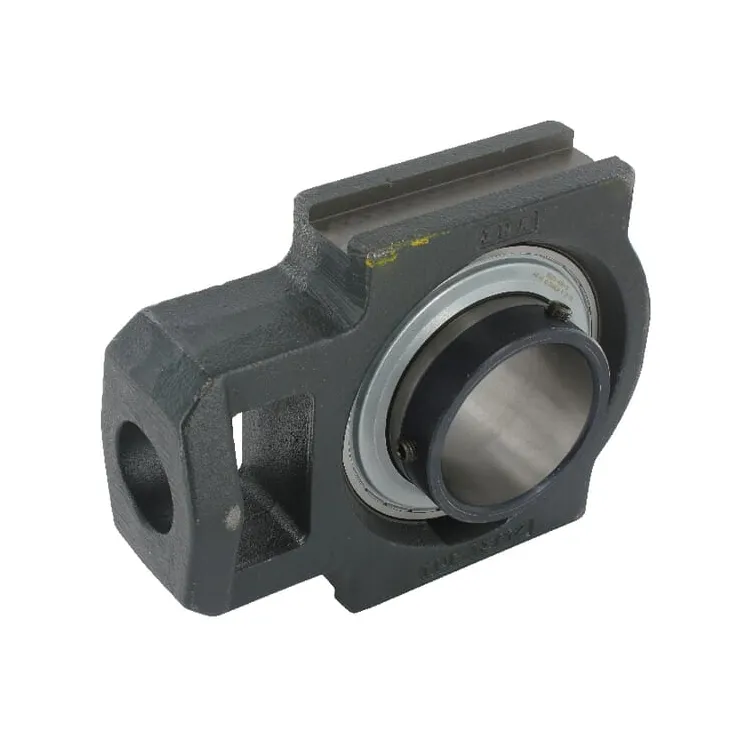

Bearing housing UCT UCT211 INA/FAG
ON REQUEST

65420

Part number
UCT211
EAN4054366900548
Unit
Each
Long description
These "Take-Up" ball bearing units with clamping screw fastening are already pre-assembled and lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment.
Pros
  • Highly suitable for limited installation spaces
  • Assembled, ready for use
  • Pre-lubricated
  • Easy tensioning of belt drives.
Product details
  • Inner bearing has extended inner ring on both sides with 2 adjusting screws
  • Regreasable
  • Self-aligning ball bearing
  • Wide inner ring ball bearing
dBearing inside diameter
55 mm
Total length
171 mm
aHousing width
146 mm
eHousing length
130 mm
BiBearing inner ring width
55.6 mm
hShaft vertical distance
106 mm
Bearing balls distance to mounting surface
22.2 mm
Mounting holes diameter
35 mm
Grease nipple thread diameter
M6
Guide groove width
22 mm
bGuide groove length
95 mm
Original number equivalent
UCT211-J7
  • Brand
    INA/FAG
  • Reference
    UCT211
  • Condition
    New
  • EAN
    4054366900548
