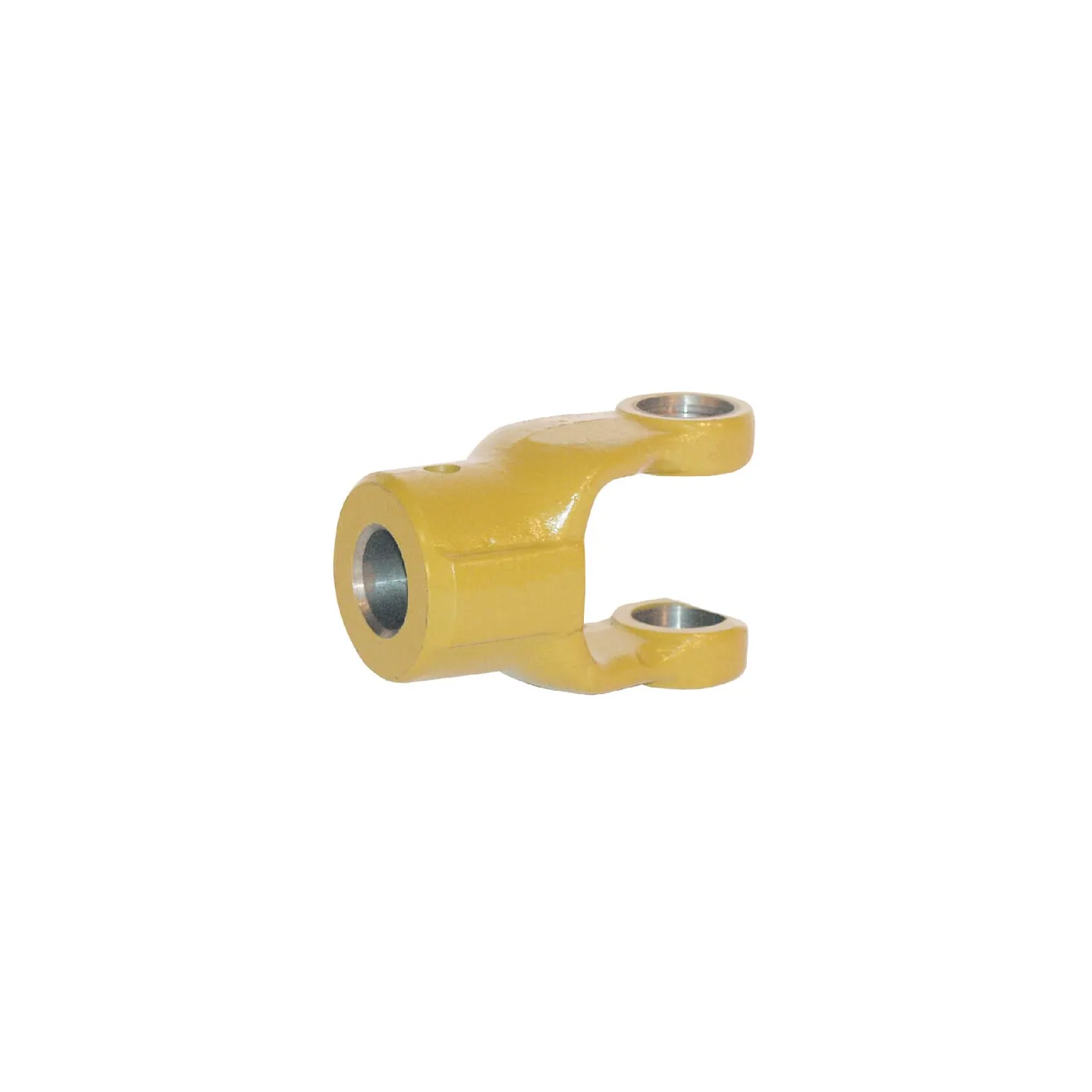

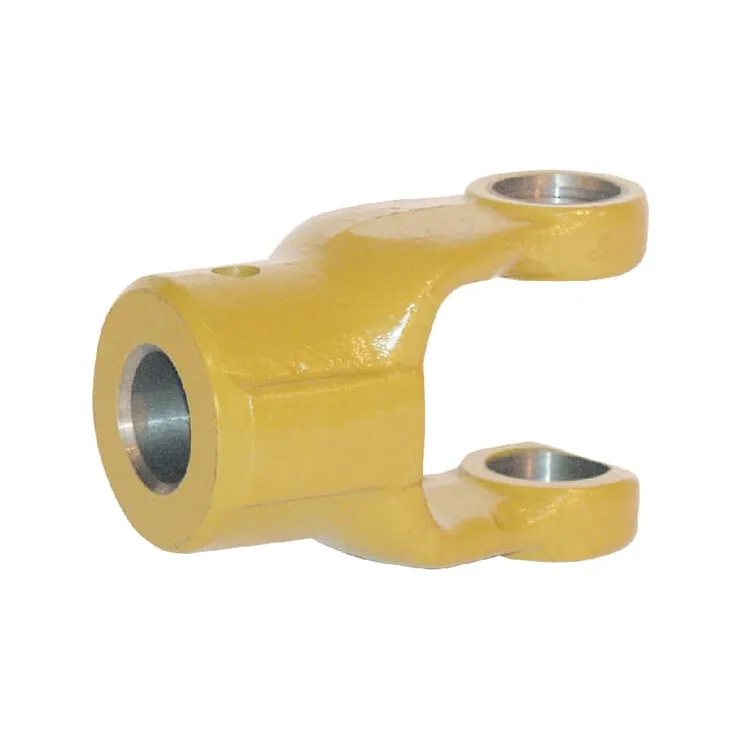

Yoke, hub, 30mm, W2100/W100E 1022281 Walterscheid
search
  • Yoke, hub, 30mm, W2100/W100E 1022281 Walterscheid

Yoke, hub, 30mm, W2100/W100E 1022281

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€227.43
Tax included
On Request
Yoke, hub, 30mm, W2100/W100E 1022281 Walterscheid
ON REQUEST

65553

Part number
1022281
EAN8432970125766
Unit
Each
Long description
Spring pin yokes with bore series W 2000
Product details
  • Yoke must be secured with a spring pin
  • Fit R7 = press fit
  • Fit H8 = slide fit
Application range
Original Walterscheid PTO shafts
Technical info
  • Fork must be secured with a roll pin
  • Fit R7 = press fit
  • Fit H8= sliding fit
Includes
  • Yoke
  • Excludes spring pin
Type
Hub
Outside connection diameter
30 mm
Consists of
  • Fork
  • Roll pin not included
Connection diameter tolerance code
H8
Shaft size code
  • W2100
  • W100E
Locking system
Roll pin bore
LLength
77 mm
Bolt thread diameter
M10
Original number equivalent
1018131
  • EAN
    8432970125766
