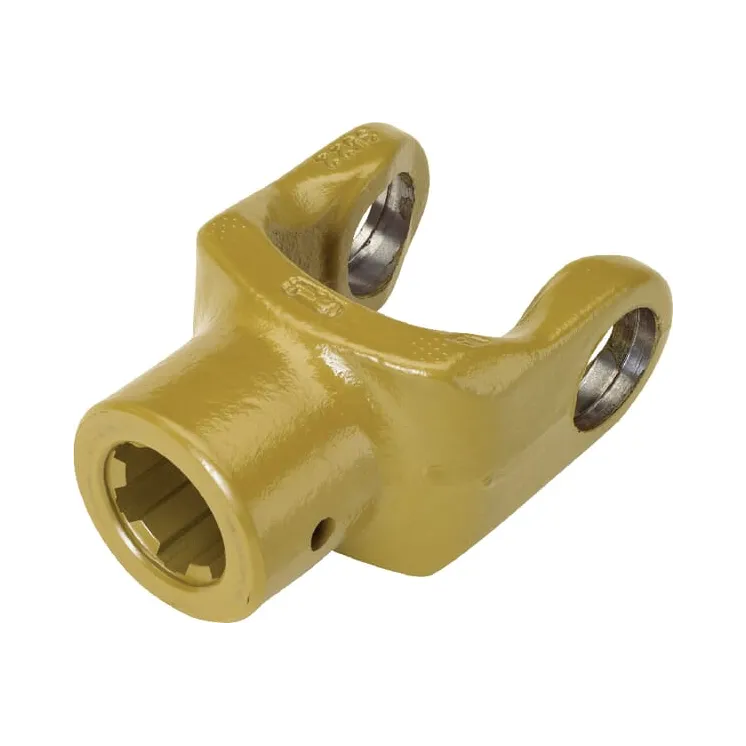

Yoke, Hub, 1-3/8-6 spline, W2400/P400/W400E 3522106 Walterscheid
search
  • Yoke, Hub, 1-3/8-6 spline, W2400/P400/W400E 3522106 Walterscheid

Yoke, Hub, 1-3/8-6 spline, W2400/P400/W400E 3522106

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€218.41
Tax included
4-5 Working days
Yoke, Hub, 1-3/8-6 spline, W2400/P400/W400E 3522106 Walterscheid
IN WAREHOUSE

66420

Part number
3522106
EAN8435194024020
Unit
Each
Long description
Spring pin yokes with bore series W 2000
Product details
  • Yoke must be secured with a spring pin
  • Fit R7 = press fit
  • Fit H8 = slide fit
Application range
Original Walterscheid PTO shafts
Technical info
  • Fork must be secured with a roll pin
  • Fit R7 = press fit
  • Fit H8= sliding fit
Includes
  • Yoke
  • Excludes spring pin
Type
Hub
Outside connection diameter
34.93 mm
Outside connection diameter
1-3/8 Inch
Consists of
  • Fork
  • Roll pin not included
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
  • W400E
Locking system
Roll pin bore
d1Key width
8 mm
LLength
105 mm
BWidth
86 mm
dCross cap diameter
32 mm
Bolt thread diameter
M8
Original number equivalent
1320693
  • Brand
    Walterscheid
  • Reference
    3522106
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8435194024020
