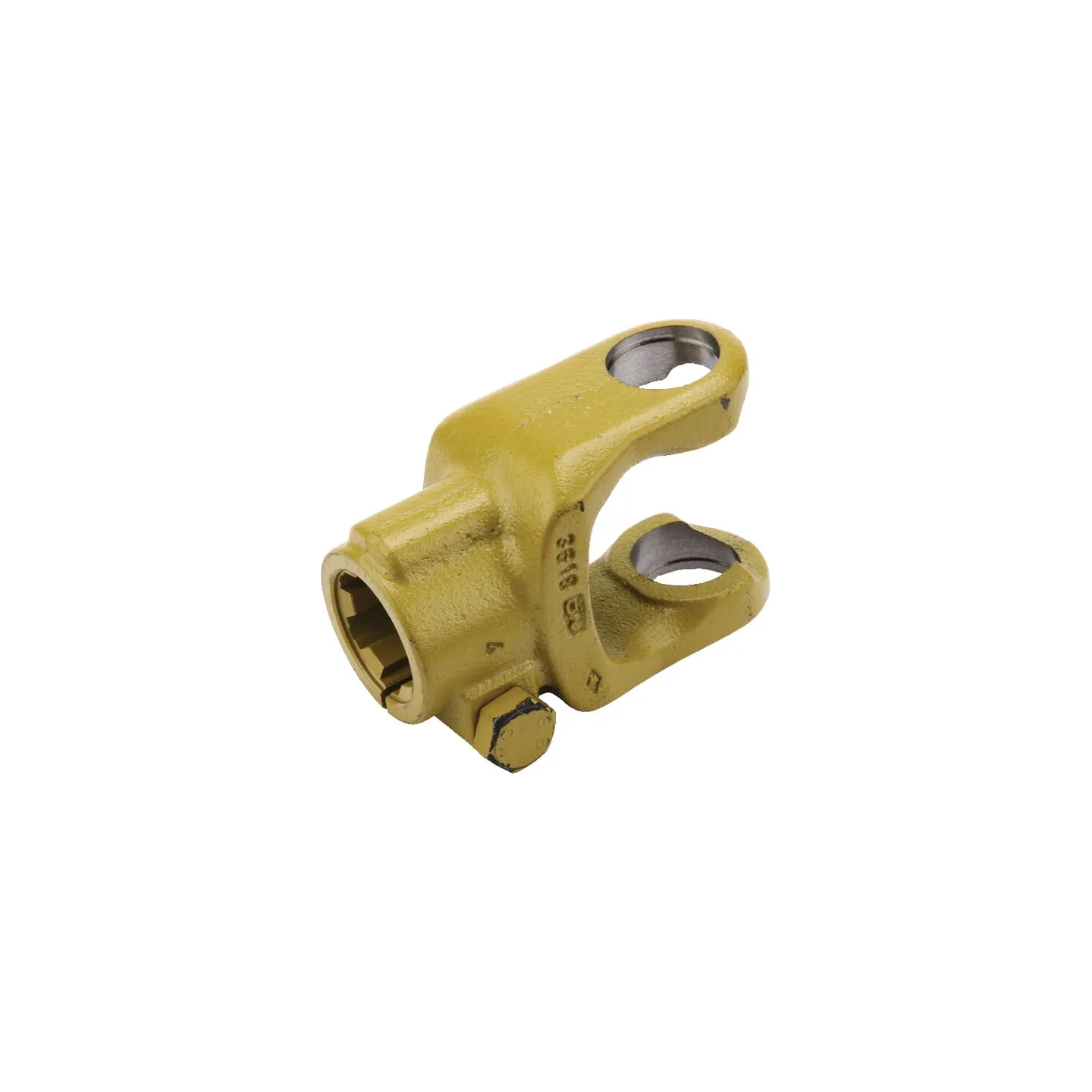

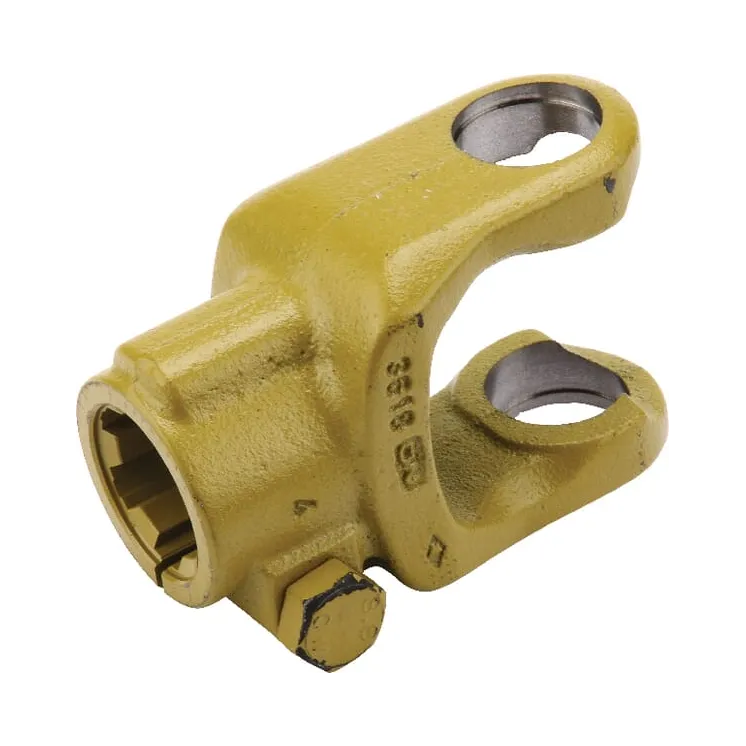

Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351804HE Walterscheid 351804
search
  • Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351804HE Walterscheid 351804

Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351804HE 351804

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€270.06
Tax included
On Request
Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351804HE Walterscheid 351804
ON REQUEST

66443

Part number
351804HE
EAN8435194023979
Unit
Each
Long description
Yokes with clamp bolt closure W series / Power Drive
Details
Clamping pin provides effective clamping effect on the shaft
Pros
Clamp bolt ensures good hold on the shaft
Product details
  • Slack-free installation
  • Interfering
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
  • - Double clamp bolt
  •
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
Assembly with no play
Includes
  • Yoke
  • Clamp bolts
Type
Clamp bolt
Outside connection diameter
44.45 mm
Outside connection diameter
1-3/4 Inch
Consists of
  • Fork
  • Clamping pin
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
  • W400E
Locking system
Clamp bolt (interfering)
Length
112 mm
D2Bolt thread diameter
M16
Original number equivalent
1320685
  • CODE
    351804
  • EAN
    8435194023979
