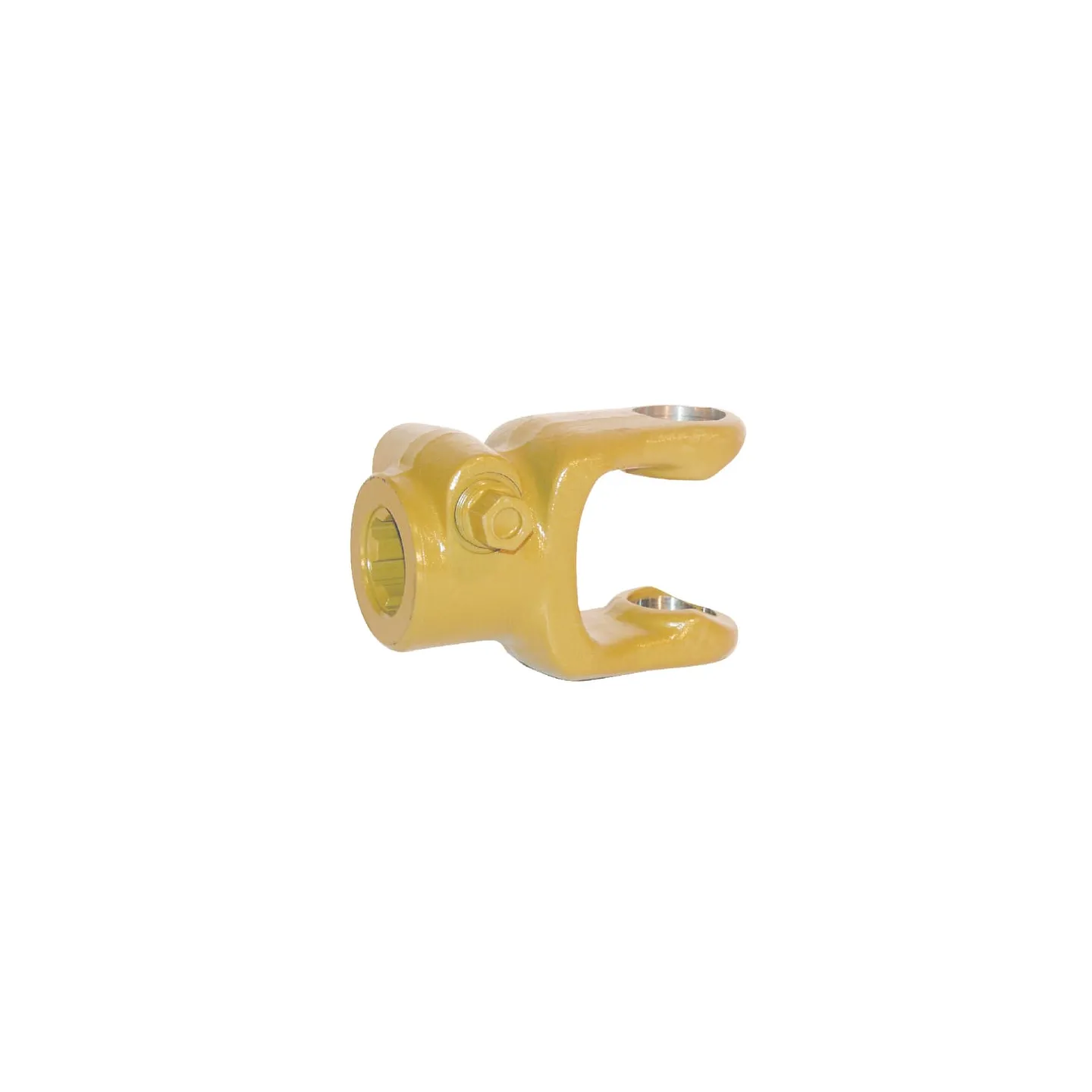

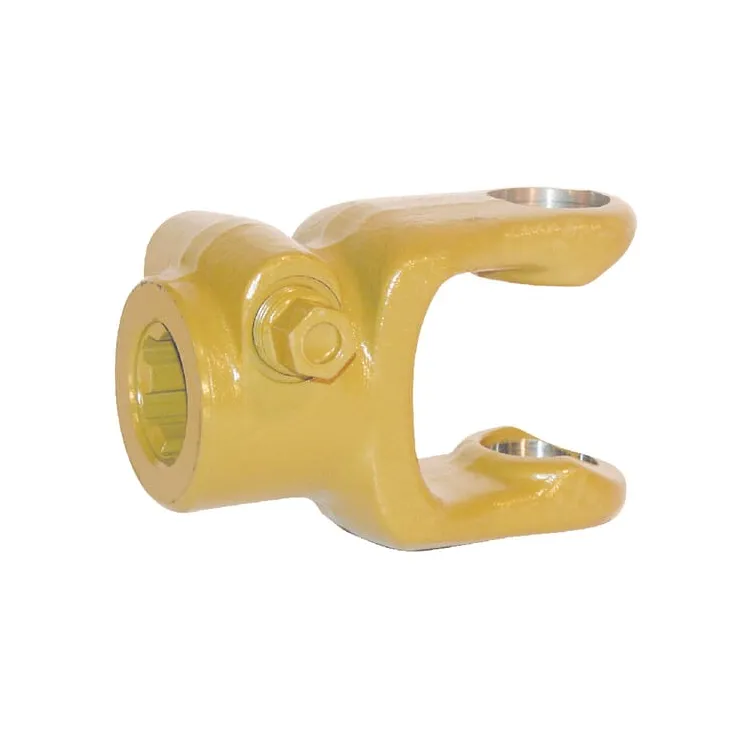

Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351830 Walterscheid
search
  • Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351830 Walterscheid

Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351830

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€331.32
Tax included
On Request
Yoke, Clamp bolt, 1-3/4-6 spline, W2400/P400/W400E 351830 Walterscheid
ON REQUEST

66445

Part number
351830
EAN8432970164437
Unit
Each
Long description
Yokes with CC closure (clamp cone) series W / Power Drive
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Pros
  • Slack-free installation
  • Clamp bolt is not stretched under load
Product details
  • Do not use yoke on tractor side with machines produced after 2005 according to safety standard EN12965
  • Conical screw ensures good hold
  • Housing without saw cut
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Outside connection diameter
15.8 mm
Outside connection diameter
1-3/4 Inch
Consists of
  • Fork
  • Conical clamping pin
Connection number of splines/grooves
6
Shaft size code
  • W2400
  • P400
  • W400E
Locking system
Clamp cone
Length
112 mm
Original number equivalent
1195020
  • EAN
    8432970164437
