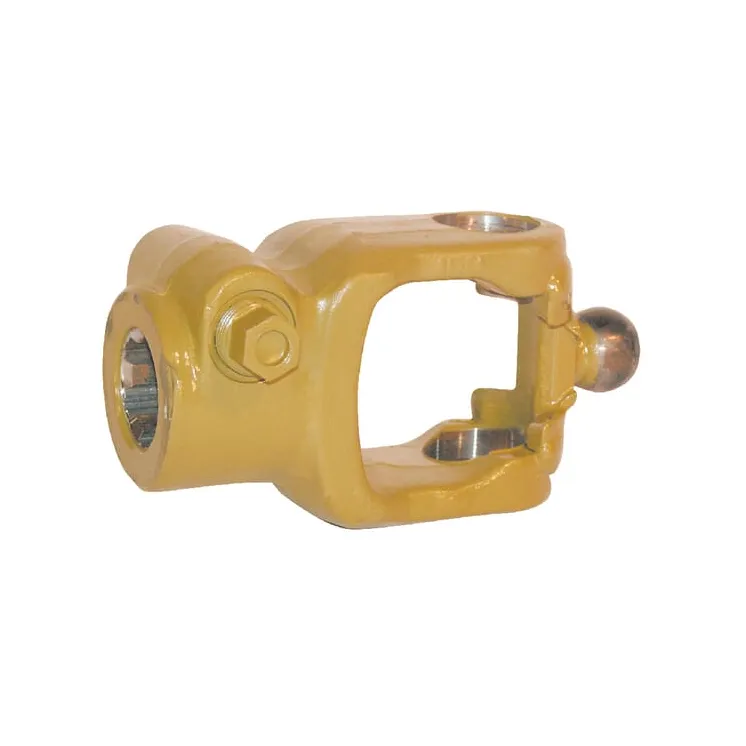

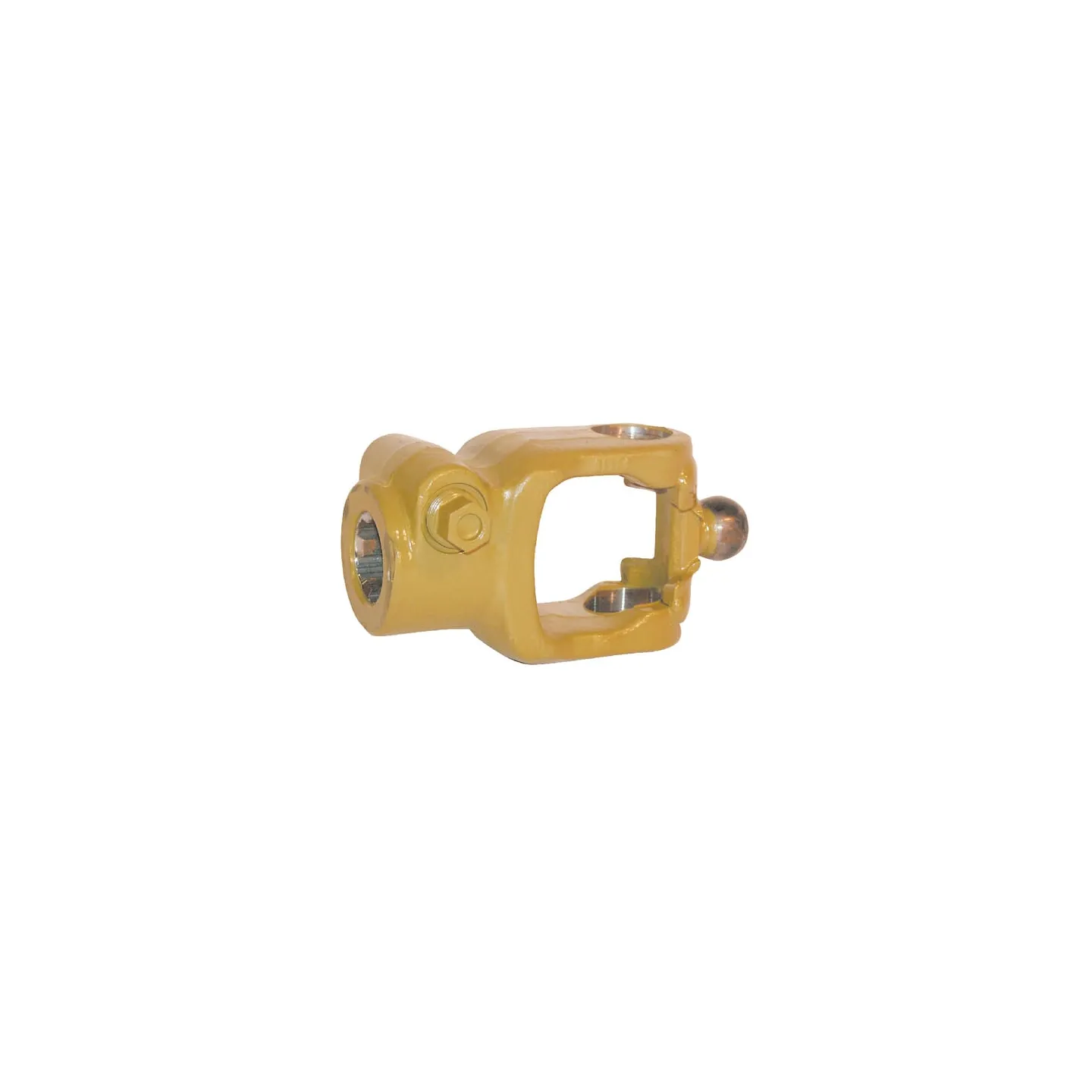

Yoke, Clamp bolt, 1-3/4-6 spline, W2480 3518830 Walterscheid
search
  • Yoke, Clamp bolt, 1-3/4-6 spline, W2480 3518830 Walterscheid

Yoke, Clamp bolt, 1-3/4-6 spline, W2480 3518830

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€590.54
Tax included
4-5 Working days
Yoke, Clamp bolt, 1-3/4-6 spline, W2480 3518830 Walterscheid
IN WAREHOUSE

66447

Part number
3518830
EAN8435194187213
Unit
Each
Long description
Wide-angle clamping cone yokes with CC lock series W 2450 / 50°
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Outside connection diameter
44.45 mm
Outside connection diameter
1-3/4 Inch
Consists of
  • Fork
  • Conical clamping pin
Connection number of splines/grooves
6
Shaft size code
W2480
Locking system
Clamp cone
Length
112 mm
Ball diameter
27 mm
Original number equivalent
1195035
  • Brand
    Walterscheid
  • Reference
    3518830
  • In stock
    4 Items
  • Condition
    New
  • EAN
    8435194187213
