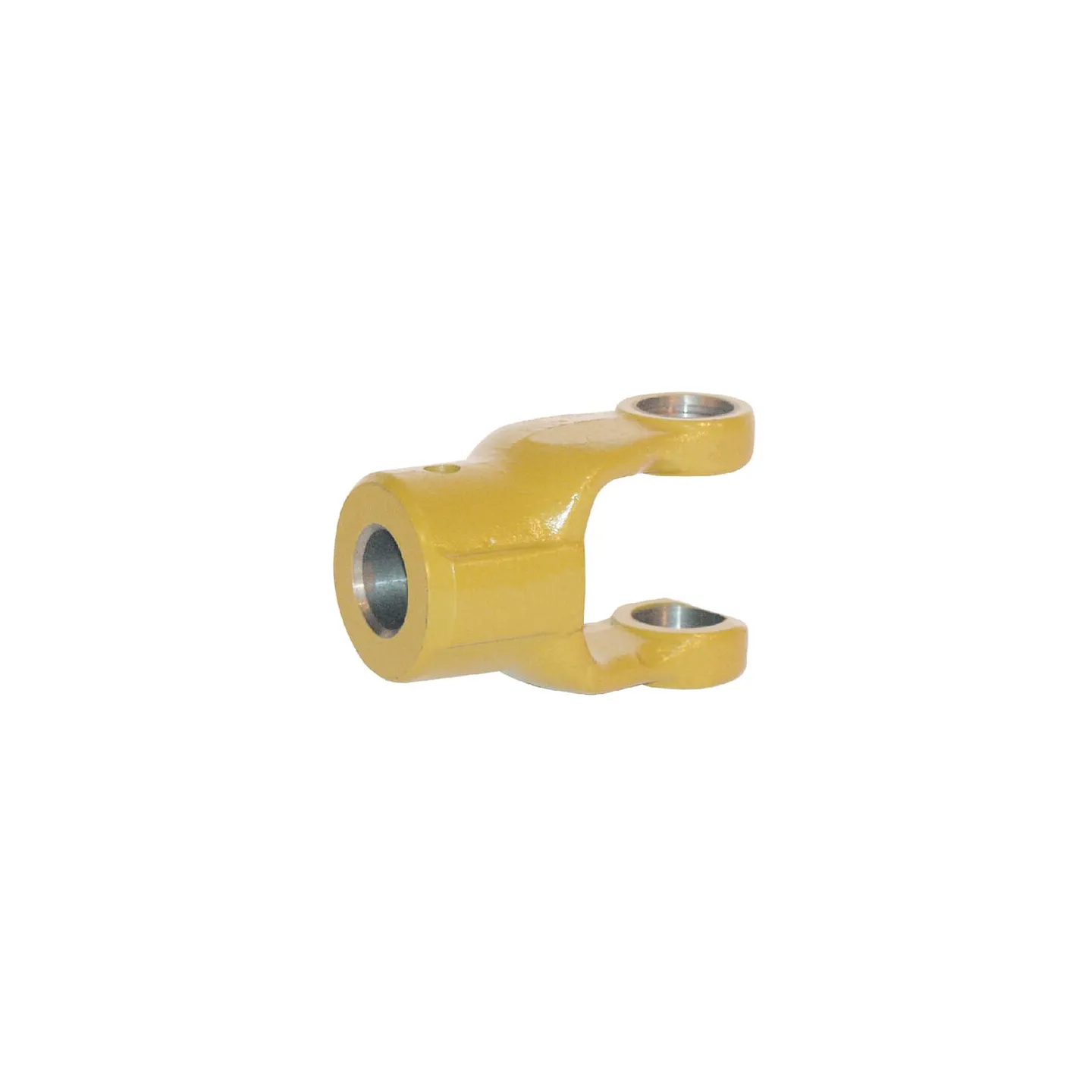

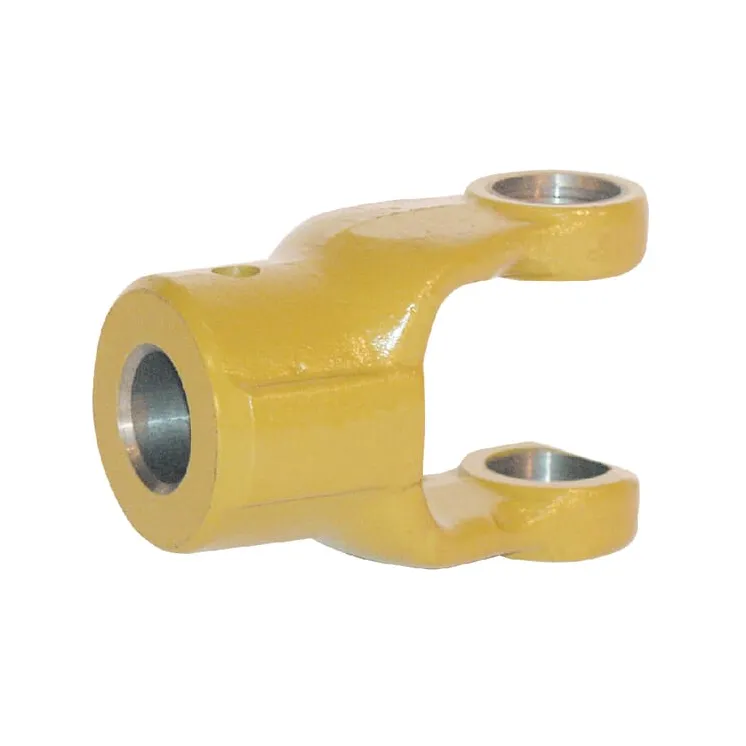

Yoke, Hub, 40x36mm -20 spline, W2400/P400/W400E 3524140 Walterscheid
search
  • Yoke, Hub, 40x36mm -20 spline, W2400/P400/W400E 3524140 Walterscheid

Yoke, Hub, 40x36mm -20 spline, W2400/P400/W400E 3524140

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€219.86
Tax included
4-5 Working days
Yoke, Hub, 40x36mm -20 spline, W2400/P400/W400E 3524140 Walterscheid
IN WAREHOUSE

66456

Part number
3524140
EAN8432970132788
Unit
Each
Long description
Spring pin yokes with bore series W 2000
Product details
  • Yoke must be secured with a spring pin
  • Fit R7 = press fit
  • Fit H8 = slide fit
Application range
Original Walterscheid PTO shafts
Technical info
  • Fork must be secured with a roll pin
  • Fit R7 = press fit
  • Fit H8= sliding fit
Includes
  • Yoke
  • Excludes spring pin
Type
Hub
Outside connection diameter
40 mm
Consists of
  • Fork
  • Roll pin not included
AInside connection diameter
36 mm
Connection number of splines/grooves
20
Shaft size code
  • W2400
  • P400
  • W400E
Locking system
Roll pin bore
LLength
126 mm
BWidth
86 mm
dCross cap diameter
32 mm
Original number equivalent
1103802
  • Brand
    Walterscheid
  • Reference
    3524140
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8432970132788
