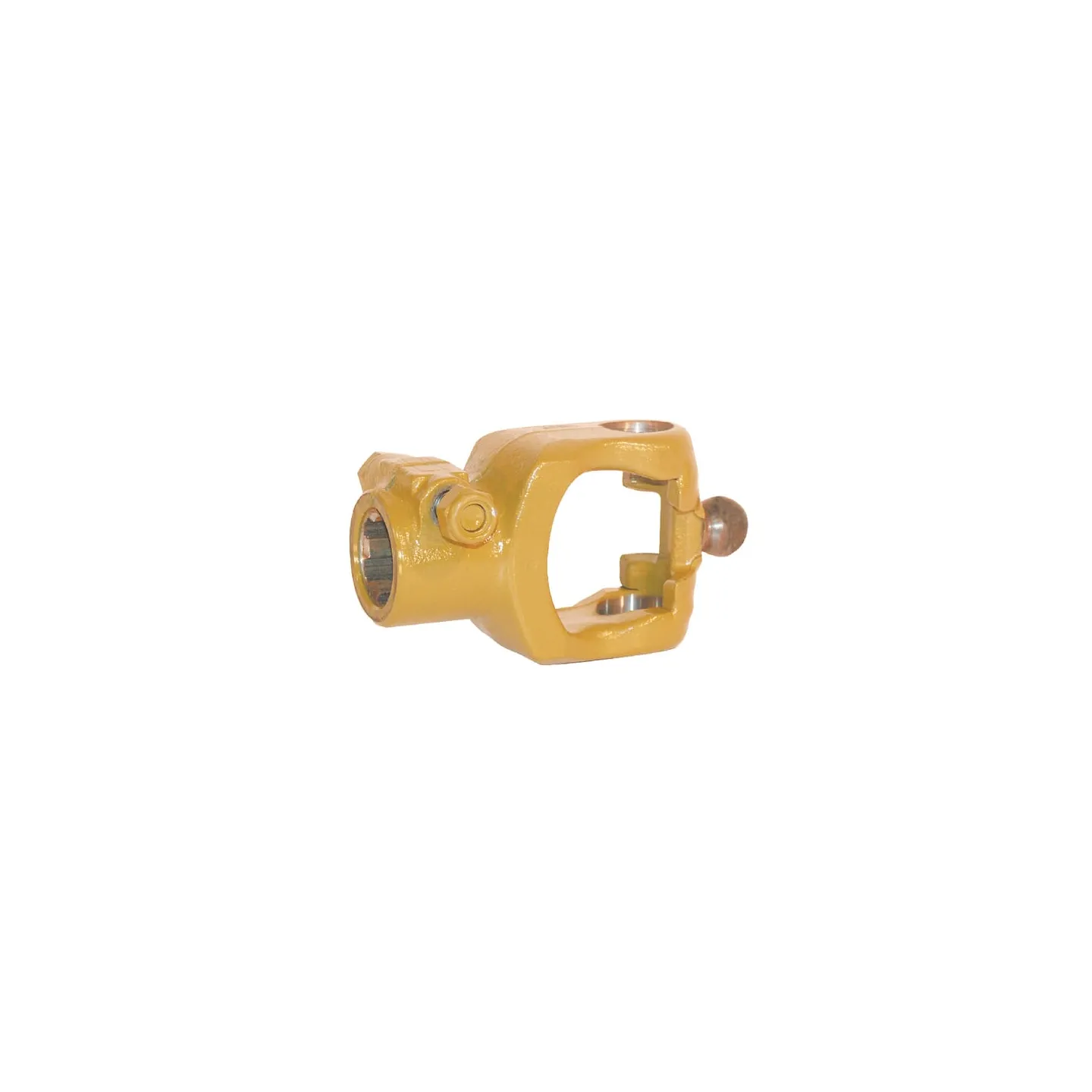

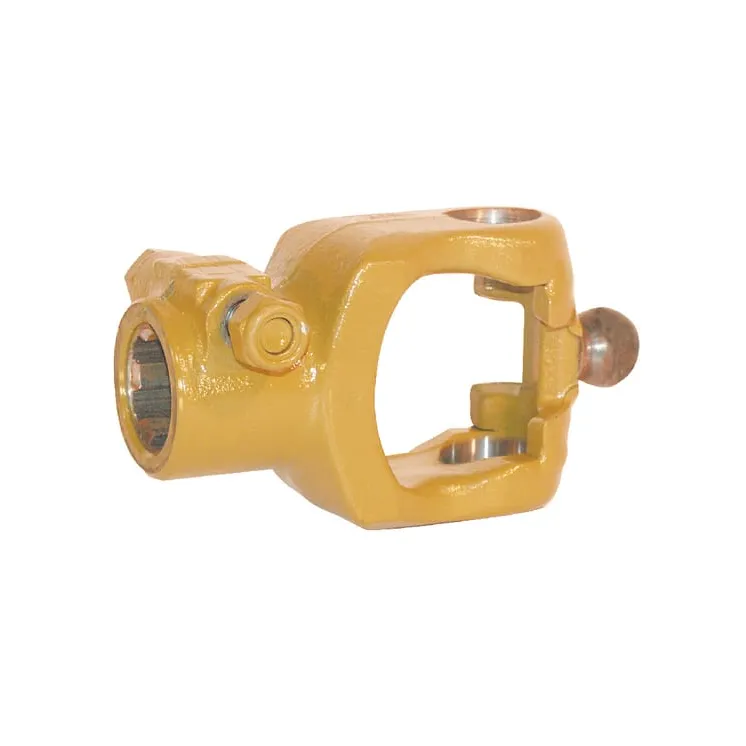

Yoke, Clamp bolt, 1-3/8-6 spline, W2480 351014 Walterscheid
search
  • Yoke, Clamp bolt, 1-3/8-6 spline, W2480 351014 Walterscheid

Yoke, Clamp bolt, 1-3/8-6 spline, W2480 351014

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€485.03
Tax included
4-5 Working days
Yoke, Clamp bolt, 1-3/8-6 spline, W2480 351014 Walterscheid
IN WAREHOUSE

66470

Part number
351014
EAN8435194027427
Unit
Each
Long description
Wide-angle clamping cone yokes series W 2280 / 80°
Details
Clamping pin provides effective clamping effect on the shaft
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
Assembly with no play
Type
Clamp bolt
Outside connection diameter
34.93 mm
Outside connection diameter
1-3/8 Inch
Consists of
Fork with clipbolt
Connection number of splines/grooves
6
Shaft size code
W2480
Locking system
Clamp bolt (interfering)
Length
112 mm
Ball diameter
27 mm
D2Bolt thread diameter
M12
Original number equivalent
1366828
  • Brand
    Walterscheid
  • Reference
    351014
  • In stock
    3 Items
  • Condition
    New
  • EAN
    8435194027427
