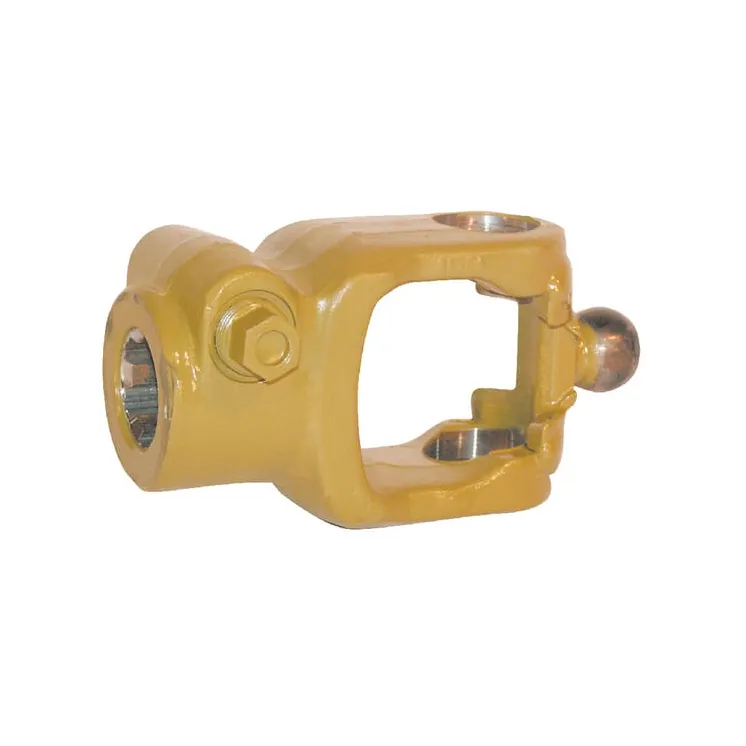

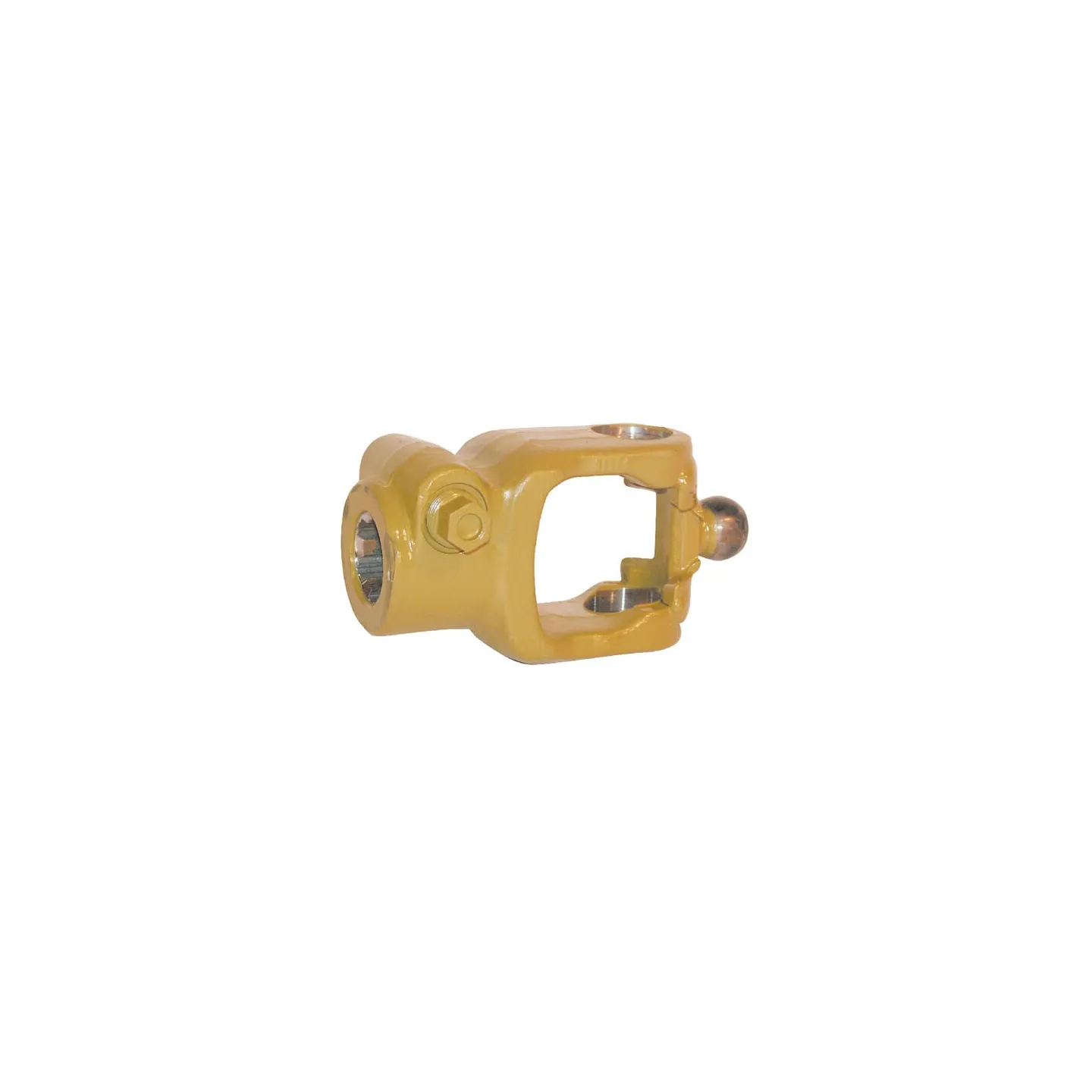

Yoke, clamp bolt, 1-3/4-6 spline, W2580 3618830M Walterscheid 3618830
search
  • Yoke, clamp bolt, 1-3/4-6 spline, W2580 3618830M Walterscheid 3618830

Yoke, clamp bolt, 1-3/4-6 spline, W2580 3618830M 3618830

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€624.76
Tax included
On Request
Yoke, clamp bolt, 1-3/4-6 spline, W2580 3618830M Walterscheid 3618830
ON REQUEST

66534

Part number
3618830M
EAN8432970334762
Unit
Each
Long description
Wide-angle clamping cone yokes with CC lock series W 2450 / 50°
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Outside connection diameter
44.45 mm
Outside connection diameter
1-3/4 Inch
Consists of
  • Fork
  • Conical clamping pin
Connection number of splines/grooves
6
Shaft size code
W2580
Locking system
Clamp cone
Length
125 mm
Ball diameter
30 mm
Original number equivalent
1135319
  • CODE
    3618830
  • EAN
    8432970334762
