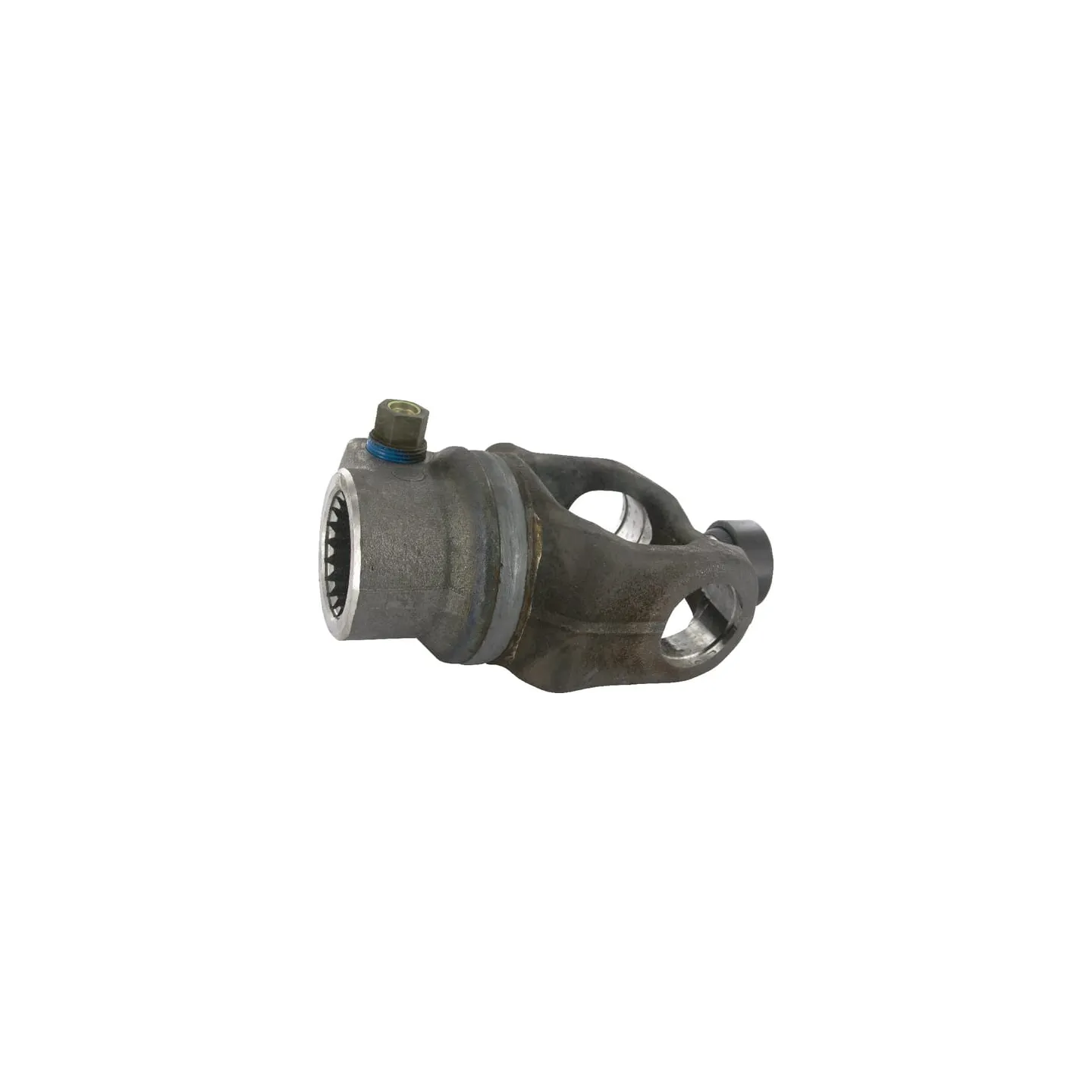

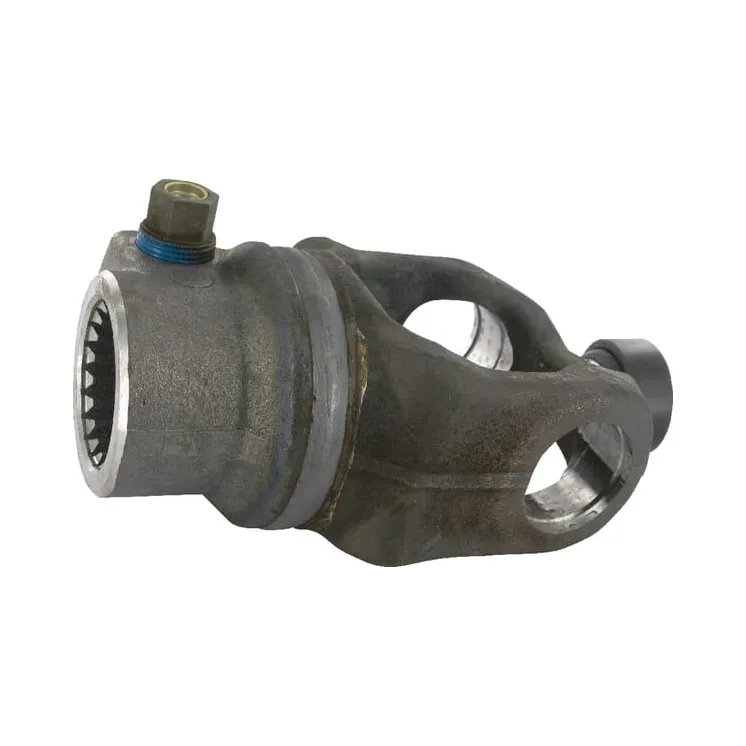

Yoke, Clamp bolt, 1-3/4-20 spline, P580 3618332M Walterscheid
search
  • Yoke, Clamp bolt, 1-3/4-20 spline, P580 3618332M Walterscheid

Yoke, Clamp bolt, 1-3/4-20 spline, P580 3618332M

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€671.60
Tax included
4-5 Working days
Yoke, Clamp bolt, 1-3/4-20 spline, P580 3618332M Walterscheid
IN WAREHOUSE

66537

Part number
3618332M
EAN8432970290303
Unit
Each
Long description
Wide-angle clamping cone yokes with CC lock series P580 / 80°
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Consists of
  • Fork
  • Conical clamping pin
Inside connection diameter
44.45 mm
Inside connection diameter
1-3/4 Inch
Connection number of splines/grooves
20
Shaft size code
P580
Locking system
Clamp cone
Original number equivalent
1134657
  • Brand
    Walterscheid
  • Reference
    3618332M
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8432970290303
