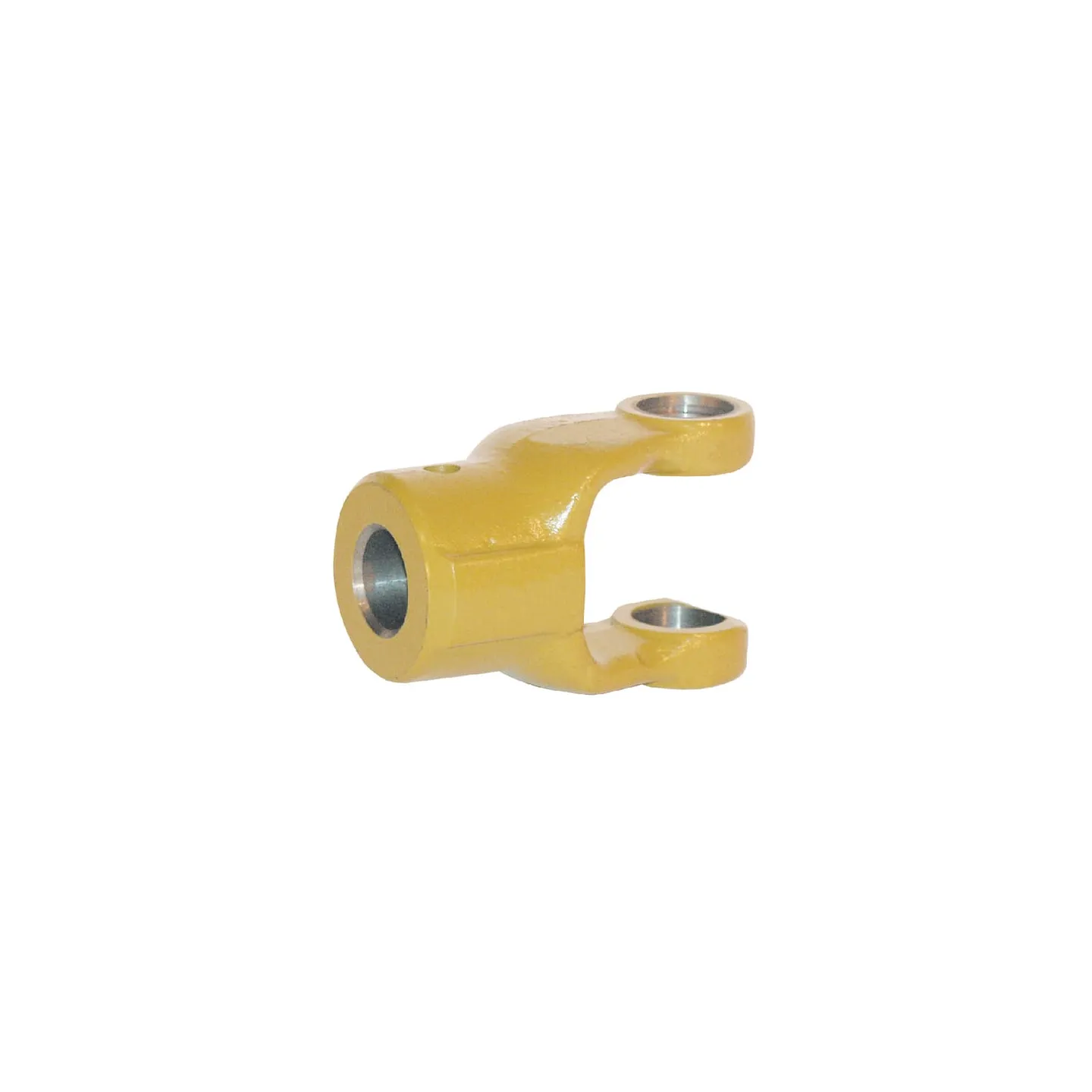

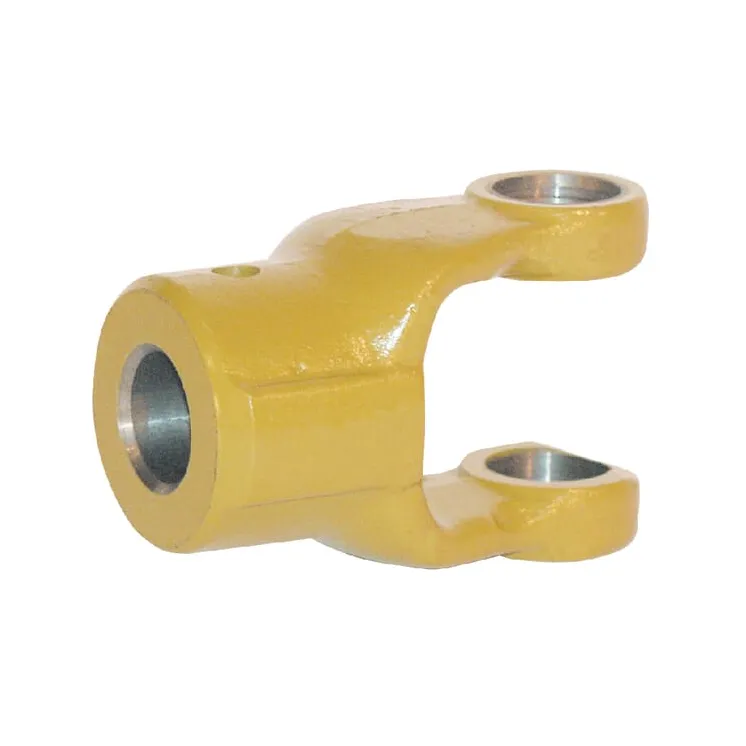

Yoke, Hub, 40mm, W2500/P500 362400 Walterscheid
IN WAREHOUSE

66548

Part number
362400
EAN8435194189798
Unit
Each
Long description
Spring pin yokes with bore series W 2000
Product details
  • Yoke must be secured with a spring pin
  • Fit R7 = press fit
  • Fit H8 = slide fit
Application range
Original Walterscheid PTO shafts
Technical info
  • Fork must be secured with a roll pin
  • Fit R7 = press fit
  • Fit H8= sliding fit
Includes
  • Yoke
  • Excludes spring pin
Type
Hub
Outside connection diameter
40 mm
Consists of
  • Fork
  • Roll pin not included
Connection diameter tolerance code
H8
Shaft size code
  • W2500
  • P500
Locking system
Roll pin bore
d1Key width
13 mm
LLength
118 mm
BWidth
100 mm
dCross cap diameter
36 mm
Bolt thread diameter
M13
Original number equivalent
1320792
  • Brand
    Walterscheid
  • Reference
    362400
  • In stock
    2 Items
  • Condition
    New
  • EAN
    8435194189798
