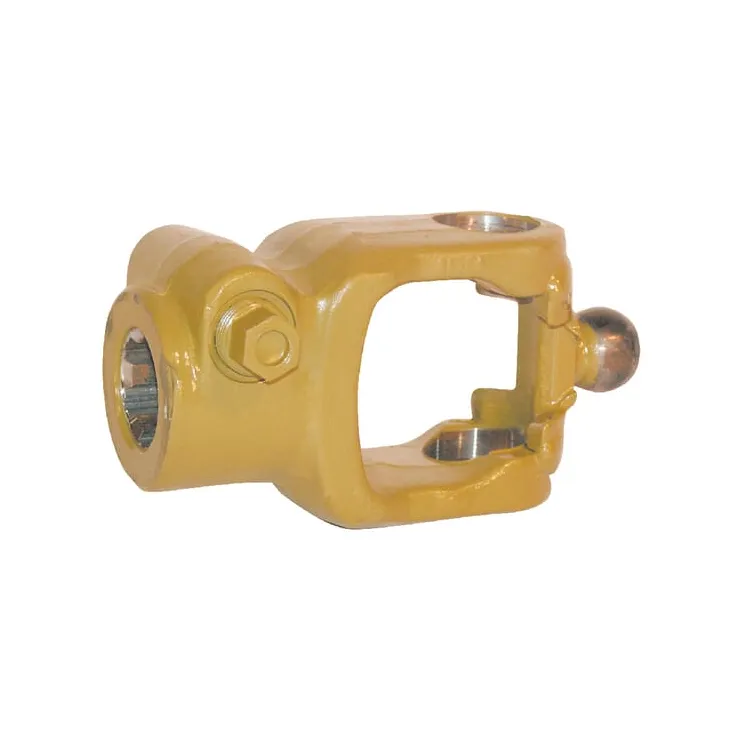

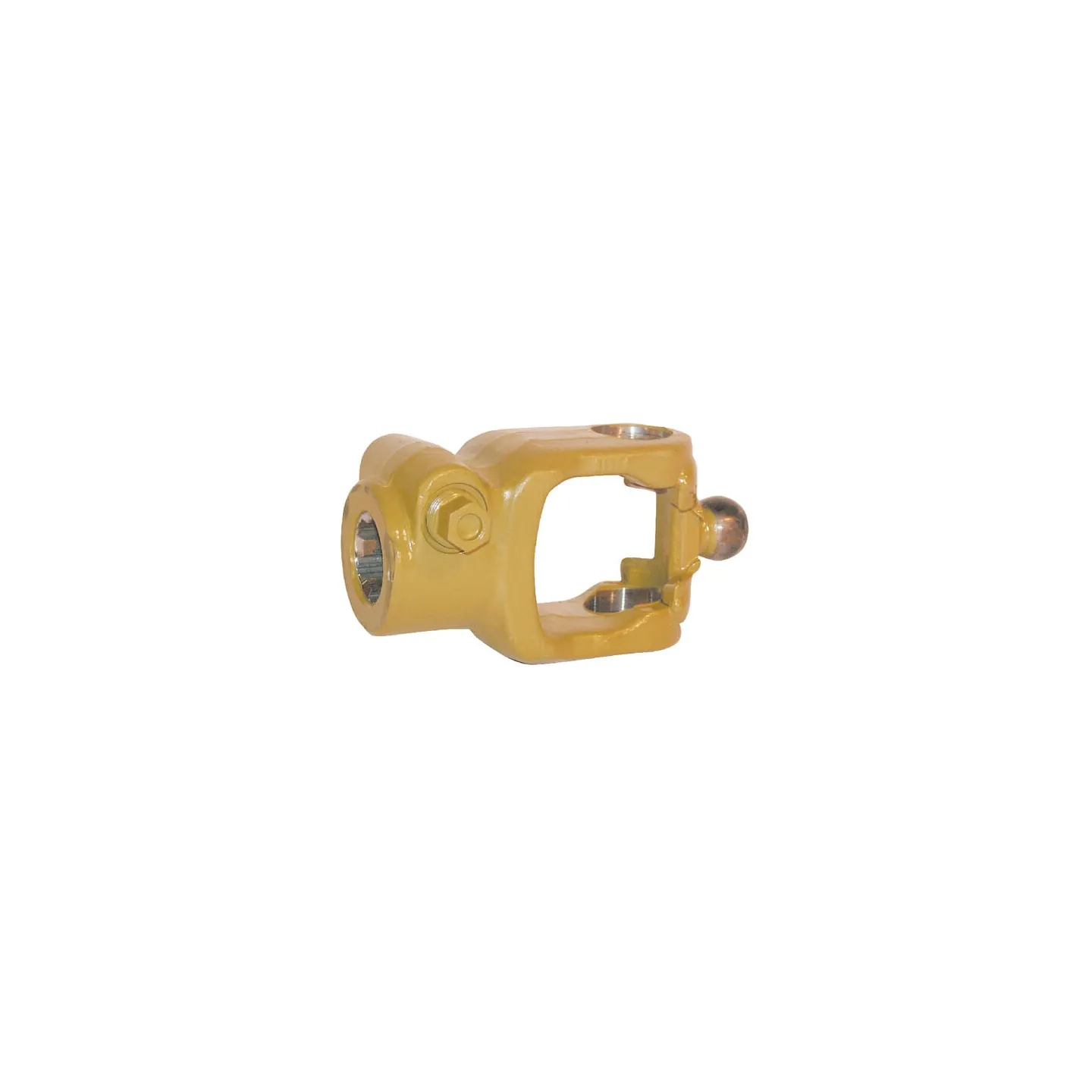

Yoke, clamp bolt, 1-3/8-6 spline, W2580 3610830M Walterscheid 361016 3610830
IN WAREHOUSE

66566

Part number
3610830M
EAN8432970334755
Unit
Each
Long description
Wide-angle clamping cone yokes with CC lock series W 2450 / 50°
Details
  • Conical pin provides effective clamping effect
  • Housing without slot
Application range
  • Rotary tillers
  • Shredders
  • Wood shredders
  • Stump grinders
Properties
Clamp cone bolt
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Benefits
  • Assembly with no play
  • Clamping pin is not loaded for stretching
Type
Clamp bolt
Outside connection diameter
34.93 mm
Outside connection diameter
1-3/8 Inch
Consists of
  • Fork
  • Conical clamping pin
Connection number of splines/grooves
6
Shaft size code
W2580
Locking system
Clamp cone
Length
118 mm
Ball diameter
30 mm
Original number equivalent
1135317
  • Brand
    Walterscheid
  • Reference
    3610830M
  • In stock
    5 Items
  • Condition
    New
  • CODE
    361016 3610830
  • EAN
    8432970334755
