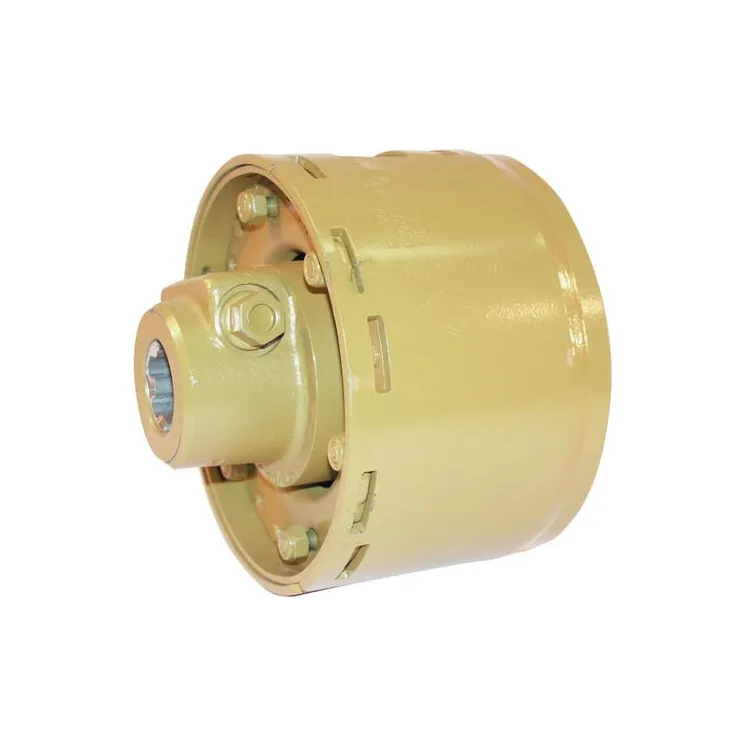

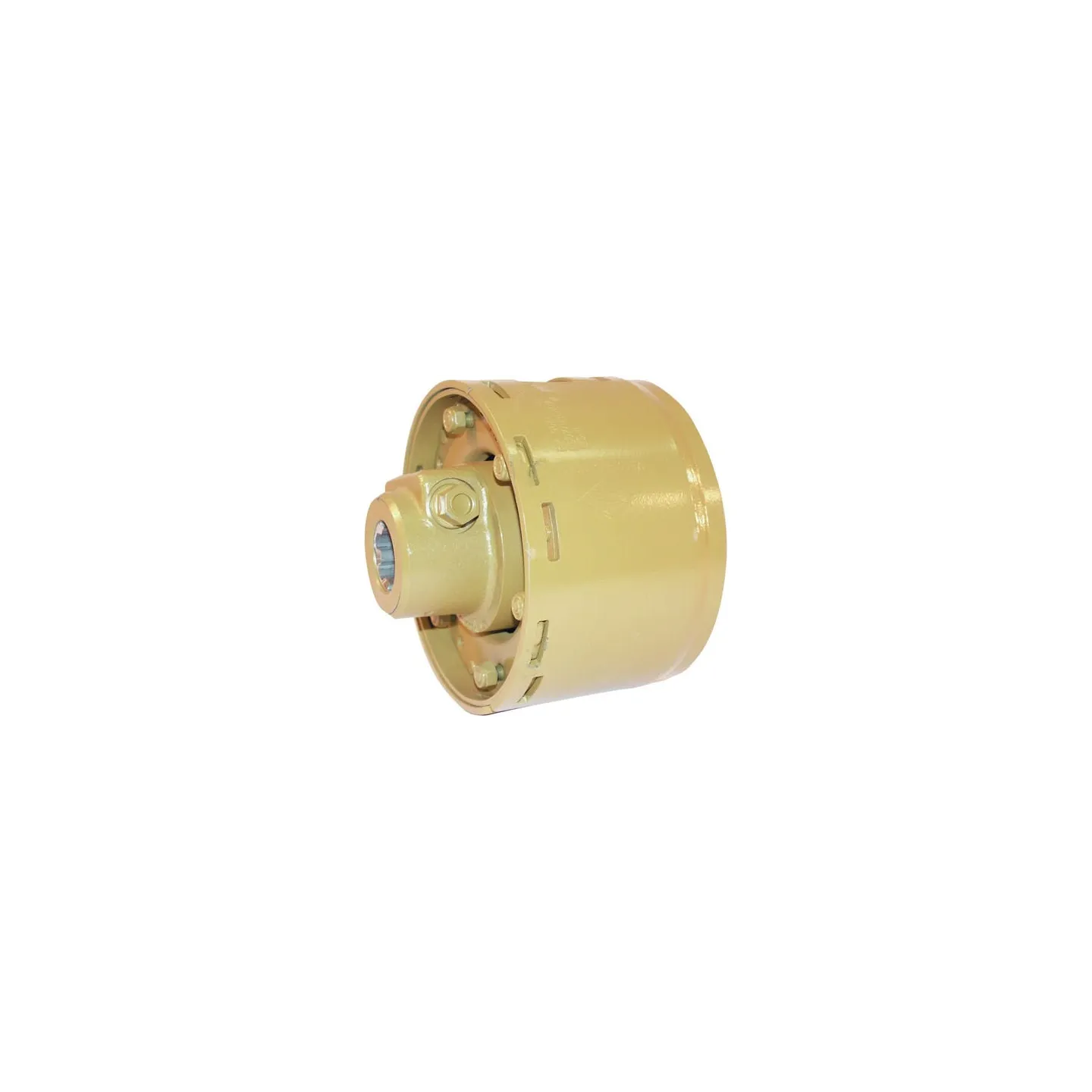

Friction clutch EK96/4 135daNm 5614251135 Walterscheid
search
  • Friction clutch EK96/4 135daNm 5614251135 Walterscheid

Friction clutch EK96/4 135daNm 5614251135

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€1,080.14
Tax included
On Request
Friction clutch EK96/4 135daNm 5614251135 Walterscheid
ON REQUEST

66675

Part number
5614251135
EAN8432970132511
Unit
Each
Details
  • No interruption of power transmission
  • Absorb peak loads for a short time
  • Max. torque adjustable via circlip
Application range
  • Mowers
  • Rotary harrows
  • Pick-up
Properties
  • Independent of direction of rotation
  • Power transmission via friction discs
  • Adjustable
  • Suitable as a starting clutch
Technical info
Observe maintenance instructions
Benefits
  • Torque retention
  • Smooth transition
  • Wide range of applications
Clutch type code
EK96/4
Connection locking type
Clamp cone
Outside connection diameter
  • 1-3/8 Inch
  • 1.375 Inch
Connection number of splines/grooves
6
Shaft size code
  • W2500
  • W2600
  • W2700
  • W2480
  • W2580
  • P480
  • P580
Max. rotation speed
1000 r/min
Max static torque
1350 N·m
DOutside diameter
170 mm
LClutch part length
90 mm
Original number equivalent
1103194
Suitable for machine/vehicle brand
n/a
  • EAN
    8432970132511
